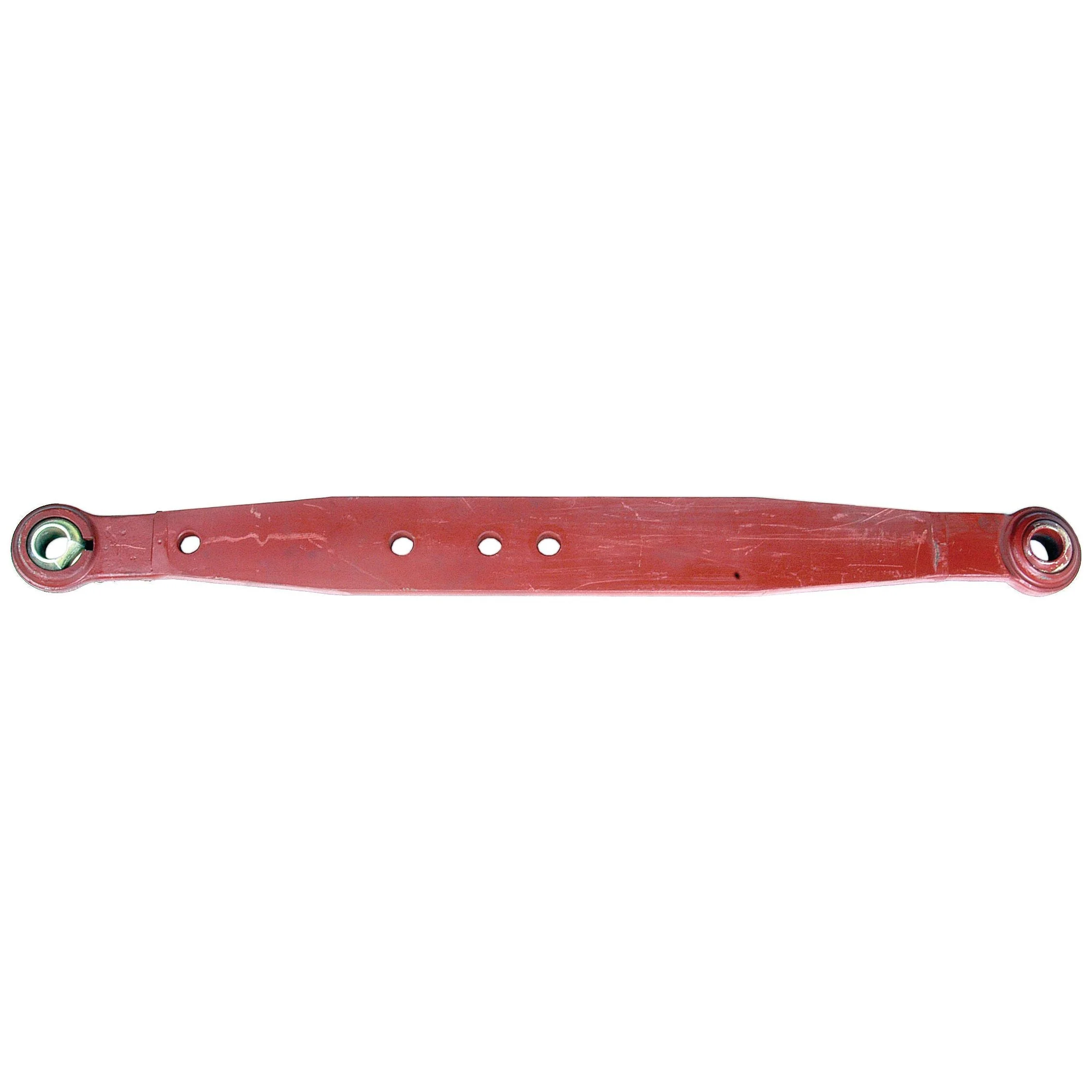

Lower Link Lift Arm - Ball Ø 28mm - Ball Ø 28mm - RH & LH | Sparex Part No.S.15181

This Sparex Lower Link Lift Arm is a high-quality replacement part designed for Massey Ferguson tractors. It features a robust construction with a length of 870mm, a thickness of 18mm, and a width of 89mm. The arm is equipped with three holes, each with a diameter of 20mm, and hole centers of 51mm and 75mm.

Product Specifications

• Ball Bore Ø (ins): 1 1/8
• Ball Bore Ø (mm): 28
• Brand: Sparex
• Category: 2/2
• Colour: Red Oxide
• End Fittings A: Ball Ø 28mm
• End Fittings B: Ball Ø 28mm
• erp_hazardous: No
• Finish: Matt
• Fitting: RH & LH
• Hole centres (mm): 51 & 75
• Hole Centres Ins: 2 & 2 61/64
• Hole Ø (ins): 25/32
• Hole Ø (mm): 20
• Length (ins): 34 1/4
• Length (mm): 870
• Number of holes: 3
• Tariff Code:7319909000
• Thickness (ins): 23/32
• Thickness (mm): 18
• Width (ins): 3 1/2
• Width (mm): 89

Suitable For

This lift arm is compatible with the following Massey Ferguson tractor models:

• 165
• 30
• 50
• 65
• 65 US BUILT
• 765

Manufacture Information

This Sparex Lower Link Lift Arm is a genuine Massey Ferguson part with the following OEM part numbers:

• 1884763M91
• 1884 763M91

Ensure a smooth and reliable operation of your Massey Ferguson tractor with this high-quality Sparex Lower Link Lift Arm.
