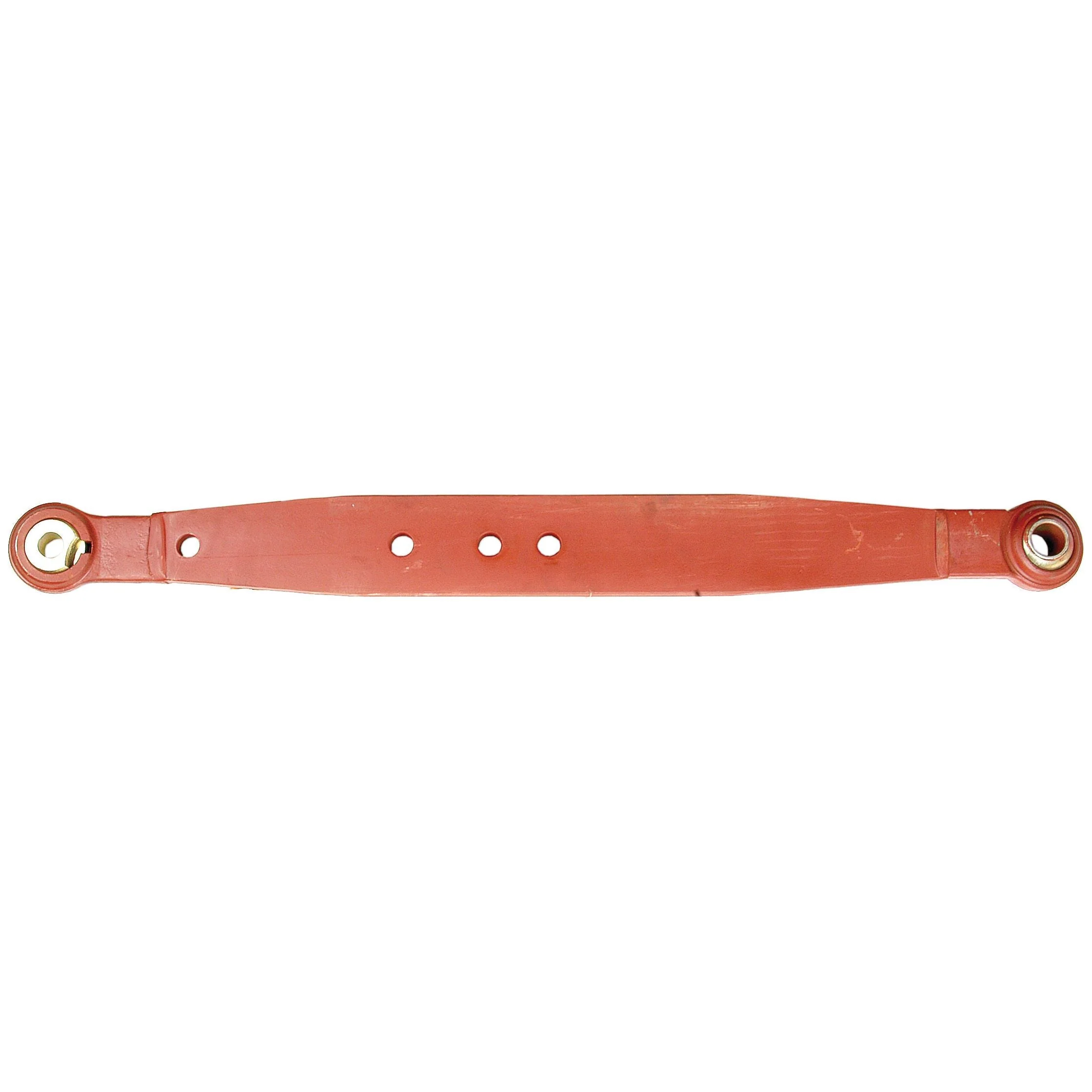

Lower Link Lift Arm - Ball Ø 28mm - Ball Ø 22mm - RH & LH | Sparex Part No.S.15179

This Sparex Lower Link Lift Arm is a high-quality replacement part designed for use with a variety of agricultural machinery. It features a robust construction with a length of 870mm, a thickness of 18mm, and a width of 89mm. The arm is equipped with three holes, each with a diameter of 20mm, and hole centers of 51mm and 75mm.

Product Specifications

• Ball Bore Ø (ins): 1 1/8 & 7/8
• Ball Bore Ø (mm): 28 & 22
• Brand: Sparex
• Category: 2/1
• Colour: Red Oxide
• End Fittings A: Ball Ø 28mm
• End Fittings B: Ball Ø 22mm
• erp_hazardous: No
• Finish: Matt
• Fitting: RH & LH
• Hole centres (mm): 51 & 75
• Hole Centres Ins: 2 & 2 61/64
• Hole Ø (ins): 25/32
• Hole Ø (mm): 20
• Length (ins): 34 1/4
• Length (mm): 870
• Number of holes: 3
• Tariff Code:7319909000
• Thickness (ins): 23/32
• Thickness (mm): 18
• Width (ins): 3 1/2
• Width (mm): 89

Suitable For

This lift arm is compatible with the following models:

• Massey Ferguson: 165, 30, 50, 65, 65 US BUILT, 765

Manufacturer Information

This Sparex lift arm is a high-quality replacement part that meets or exceeds OEM specifications. It is manufactured to the highest standards and is backed by a comprehensive warranty.

This lift arm is also compatible with the following OEM part numbers:

• Landini: 1884761M91
• Massey Ferguson: 1884761M91, 1884 761M91

Order your Sparex Lower Link Lift Arm today and experience the difference quality makes!
