Lower Link Lift Arm - Ball Ø 22mm - Ball Ø 22mm - RH & LH | Sparex Part No.S.15175

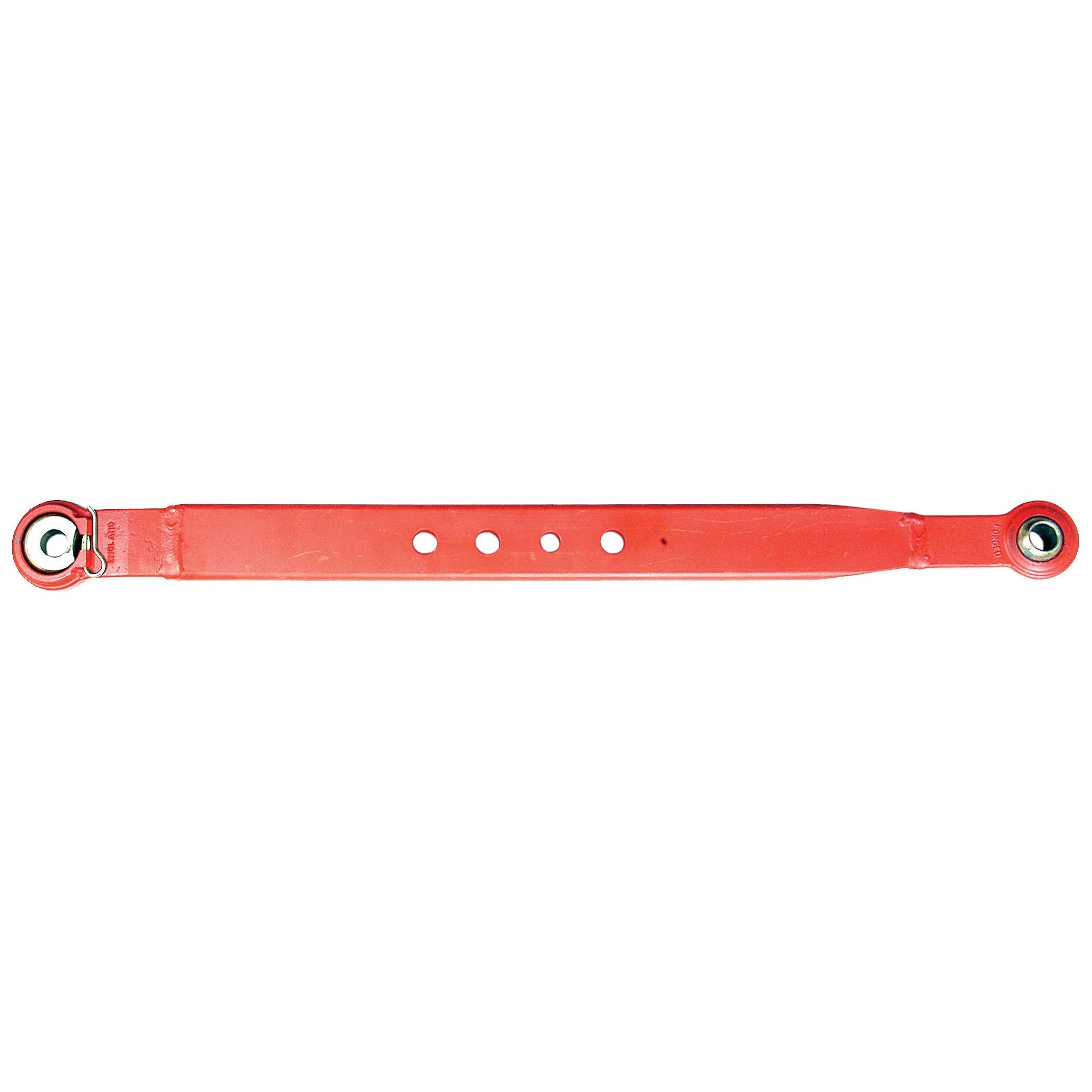

This Sparex Lower Link Lift Arm is a high-quality replacement part suitable for a range of agricultural machinery. It features a robust construction with a length of 810mm, thickness of 16mm, and width of 63mm. The arm is designed with four holes, including one with a diameter of 16mm and three with a diameter of 19mm. The hole centers are spaced at 52mm intervals.

Product Specifications

• Ball Bore Ø (ins): 7/8
• Ball Bore Ø (mm): 22
• Brand: Sparex
• Category: 1/1
• Colour: Red Oxide
• End Fittings A: Ball Ø 22mm
• End Fittings B: Ball Ø 22mm
• erp_hazardous: No
• Finish: Matt
• Fitting: RH & LH
• Hole centres (mm): 52 & 52 & 52
• Hole Centres Ins: 2 3/64 & 2 3/64 & 2 3/64
• Hole Ø (ins): 1x5/8 & 3x3/4
• Hole Ø (mm): 1x16 & 3x19
• Length (ins): 31 29/32
• Length (mm): 810
• Number of holes: 4
• Tariff Code:7319909000
• Thickness (ins): 5/8
• Thickness (mm): 16
• Width (ins): 2 1/2
• Width (mm): 63

Suitable For

This lift arm is compatible with the following models:

• Ford / New Holland: 3000, DEXTA
• Massey Ferguson: 133, 135, 135 GAS / 135 PETROL, 140, 148, 165, 175, 178, 203, 203X, 205, 205X, 40, 50, 65, 702, 765, TEA20, TED20, TEF20

Manufacture Information

This Sparex Lower Link Lift Arm is a direct replacement for the following Massey Ferguson parts:

• 882754M91
• 882698M92

Order your Sparex Lower Link Lift Arm today and ensure your agricultural machinery is operating at peak performance.
