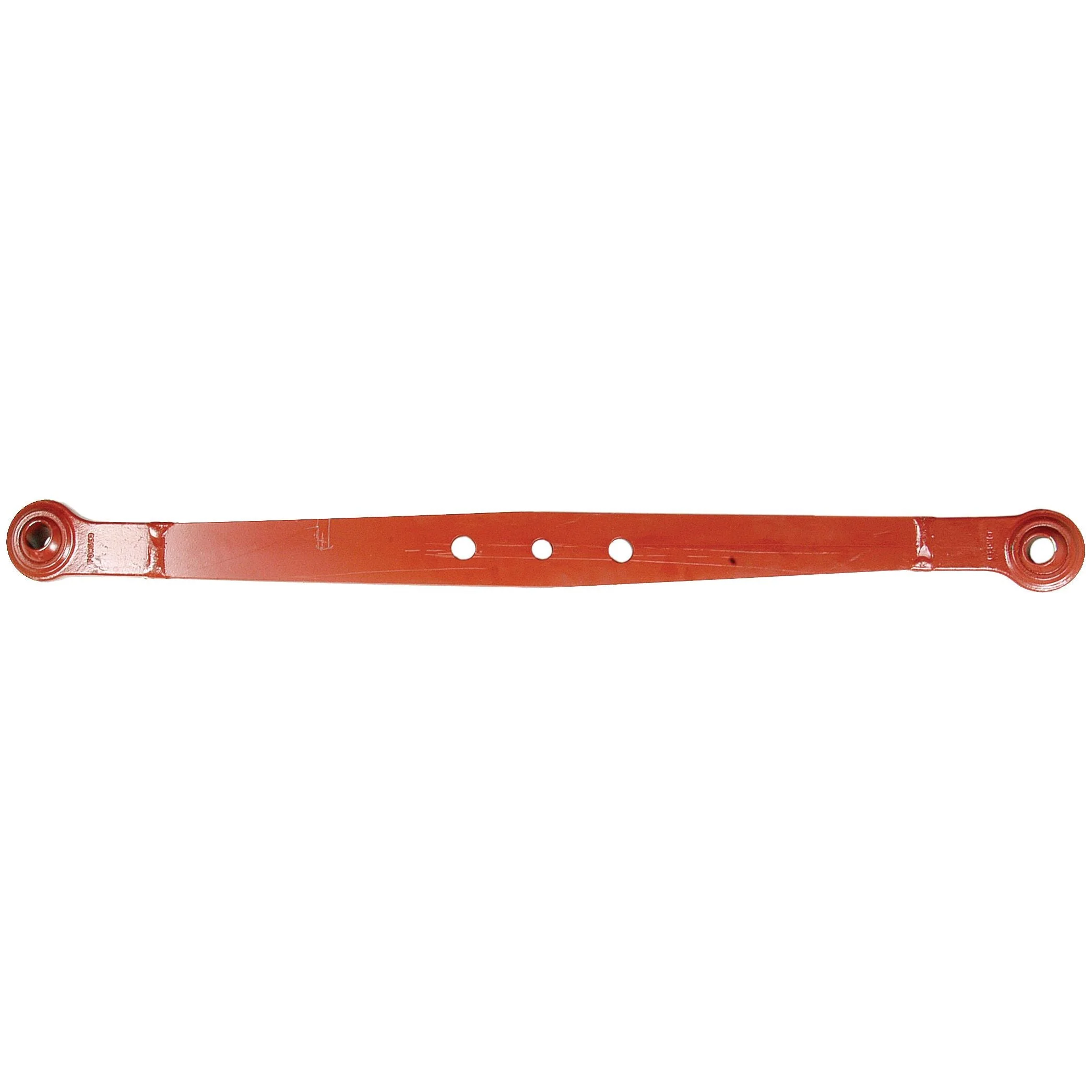

Lower Link Lift Arm - Ball Ø 22mm - Ball Ø 22mm - RH & LH | Sparex Part No.S.15174

This high-quality Lower Link Lift Arm is a perfect replacement for your Massey Ferguson tractor. It features a ball bore diameter of 22mm and is designed for both right-hand and left-hand applications. This lift arm is compatible with a wide range of Massey Ferguson models, including the 1902, 193181M1, and 882698M92. It is also suitable for Ford / New Holland tractors, including the 2N, 8N, 9N, JUBILEE, NAA, and NAB models, as well as Massey Ferguson TE20, TEA20, TED20, TEF20, and TO20 models.

Product Specifications

• Ball Bore Ø (ins): 7/8
• Ball Bore Ø (mm): 22
• Brand: Spenco
• Category: 1/1
• Colour: Red Oxide
• End Fittings A: Ball Ø 22mm
• End Fittings B: Ball Ø 22mm
• erp_hazardous: No
• Finish: Matt
• Fitting: RH & LH
• Hole centres (mm): 63 & 63
• Hole Centres Ins: 2 31/64 & 2 31/64
• Hole Ø (ins): 2x25/32 & 11/16
• Hole Ø (mm): 2x20 & 17
• Length (ins): 31 29/32
• Length (mm): 810
• Number of holes: 3
• Tariff Code:7319909000
• Thickness (ins): 35/64
• Thickness (mm): 14
• Width (ins): 2 1/2
• Width (mm): 63

Suitable For

• Ford / New Holland: 2N, 8N, 9N, JUBILEE, NAA, NAB
• Massey Ferguson: TE20, TEA20, TED20, TEF20, TO20

Manufacture Information

• Massey Ferguson: 1902, 193181M1, 882698M92

This Lower Link Lift Arm is a high-quality, durable, and reliable replacement part for your tractor. Order yours today!
