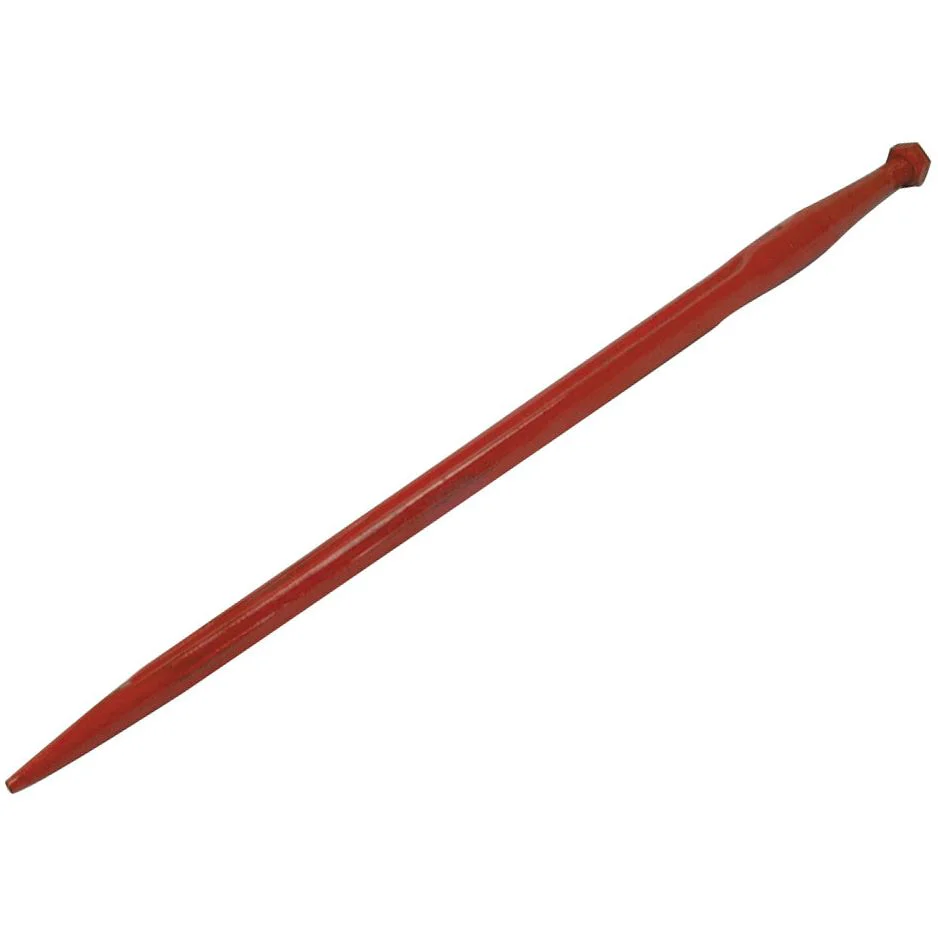

Loader Tine - Straight 810mm, Thread Size: M22 x 1.50 (H - Fluted)

Introducing the Loader Tine designed for optimal performance and durability. This straight tine, measuring 810mm in length, is engineered to fit Conus 1 fittings and is an excellent choice for various agricultural applications.

Product Features

• Fitting: Conus 1
• Maximum Tine Diameter: 36mm
• Thread Size: M22 x 1.50 (Metric)
• Profile: H - Fluted
• Colour: Red
• Brand: SHW
• Nut Included: Yes (Nut: S.77028)
• Maximum Torque: 500 Nm
• Length: 810mm (32 inches)
• Alternative Part Number: 72324
• Primary OE Reference: 878665M1
• Related Products: 14902, 1840, 21527, 22829, 77028
• Tariff Code: 8426990000

Compatibility

This loader tine is compatible with various models from brands such as:

• Horndraulic
• M.I.L
• Massey Ferguson
• Trima
• Weidemann
• Tanco

Important Safety Information

Warning: Nuts must be retightened according to the instructed torque after 5 hours of operation using a torque-controlled spanner to ensure safety and performance.

Upgrade your equipment with the reliable and efficient Loader Tine from SHW, designed to meet the demands of modern agricultural tasks.
