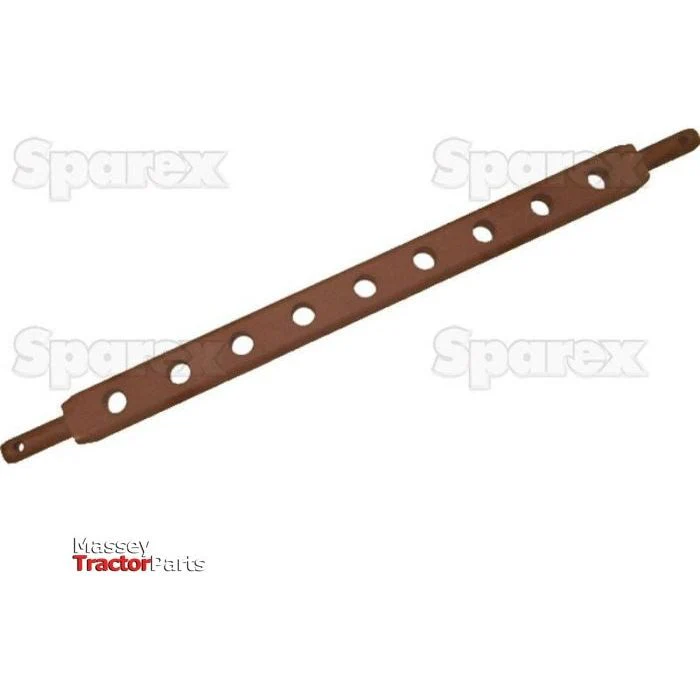

Flat Drawbar (Cat. 2) - 9 Holes, 942mm | Sparex Part No. S.49128

Enhance your agricultural equipment with the Sparex Flat Drawbar, designed for durability and efficiency. This high-quality drawbar features a pin diameter of 28mm and a hole diameter of 26mm, ensuring a secure fit for your machinery. With hole centers spaced at 80mm, this drawbar is perfect for various applications.

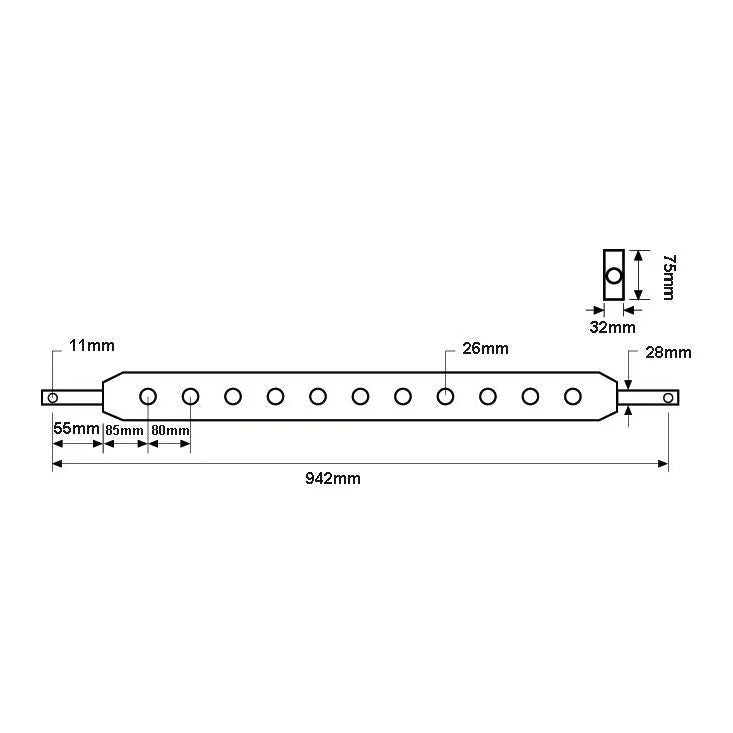

Product Specifications

• Brand: Sparex
• Category: 2
• D (mm): 55
• E (mm): 85
• Hole Centres (mm): 80
• Hole Centres (inches): 3 5/32
• Hole Ø (inches): 1 1/32
• Hole Ø (mm): 26
• Linch Pin Ø (mm): 11
• Number of Holes: 9
• Overall Length (inches): 37 3/32
• Overall Length (mm): 942
• Pin Ø (inches): 1 1/8
• Pin Ø (mm): 28
• Section (mm): 32x75
• Section (inches): 1 17/64 x 2 61/64
• Tariff Code: 7319909000
• Working Length (inches): 2 11/64
• Working Length (mm): 55

Compatibility Information

This product is not associated with any particular make or model, making it a versatile choice for various applications.

Manufacturer Information

This product is not associated with any specific OEM part number, ensuring broad compatibility across different machinery.
