Flat Drawbar (Cat. 2) No. holes: 9, 920mm | Sparex Part No.S.15134

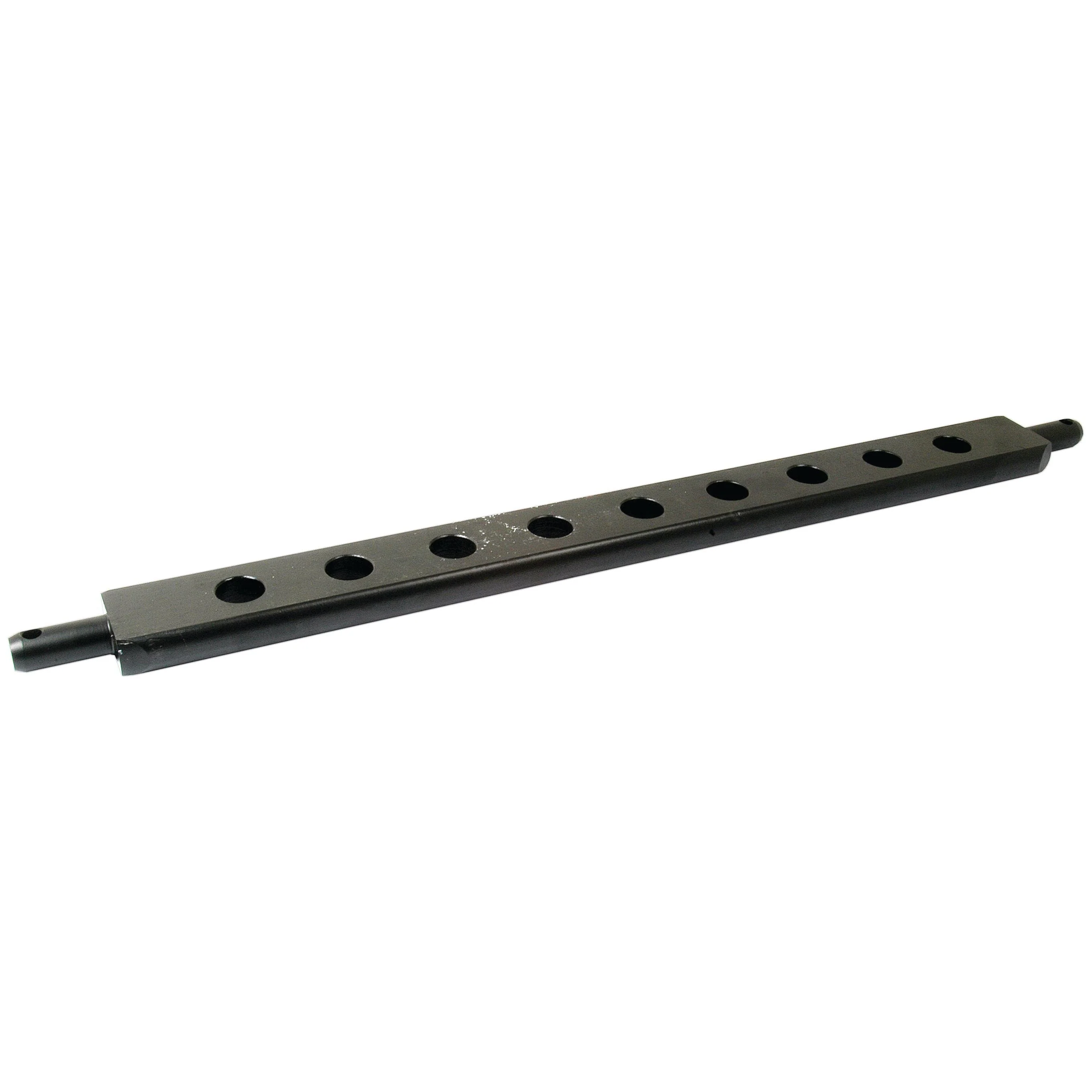

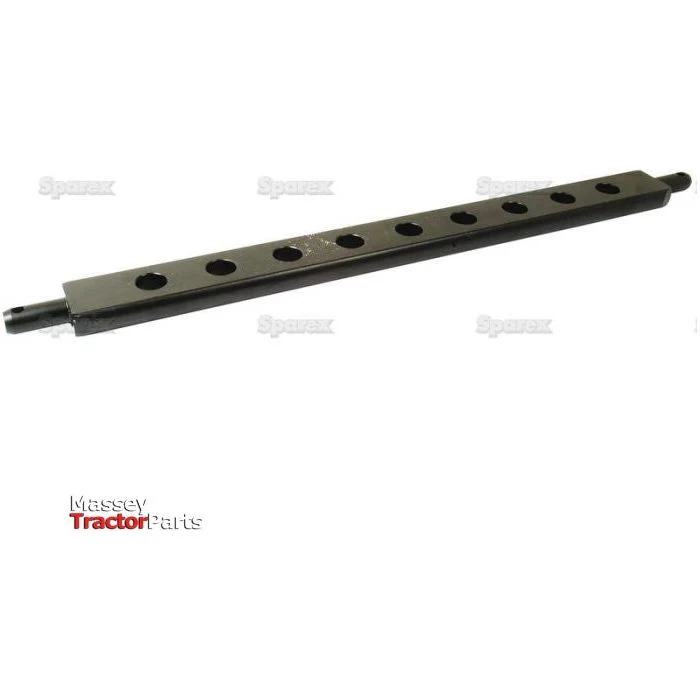

This Sparex Flat Drawbar is a Category 2 hitch with 9 holes and an overall length of 920mm. It is a high-quality replacement part for a variety of agricultural and industrial applications.

Key Features:

• Pin Ø: 28mm
• Hole Ø: 33mm
• Hole centres: 80mm
• Section: 30x80mm
• Number of holes: 9
• Overall length: 920mm (36 7/32 inches)
• Tensile Strength: 3150 kgs (cm²) / 20 tons (ins²)
• Alternative to: 60156

Specifications:

• Brand: Sparex
• Category: 2
• D (ins): 2
• D (mm): 50
• E (ins): 3 35/64
• E (mm): 90
• erp_hazardous: No
• Hole Centres Ins: 3 5/32
• Hole Ø (ins): 1 19/64
• Linch Pin Ø (mm): 11
• Section ins: 1 3/16x3 1/8
• Tariff Code: 7319909000
• Working length (ins): 2
• Working length (mm): 50

This product is not associated with any particular make or model or OEM part number.
