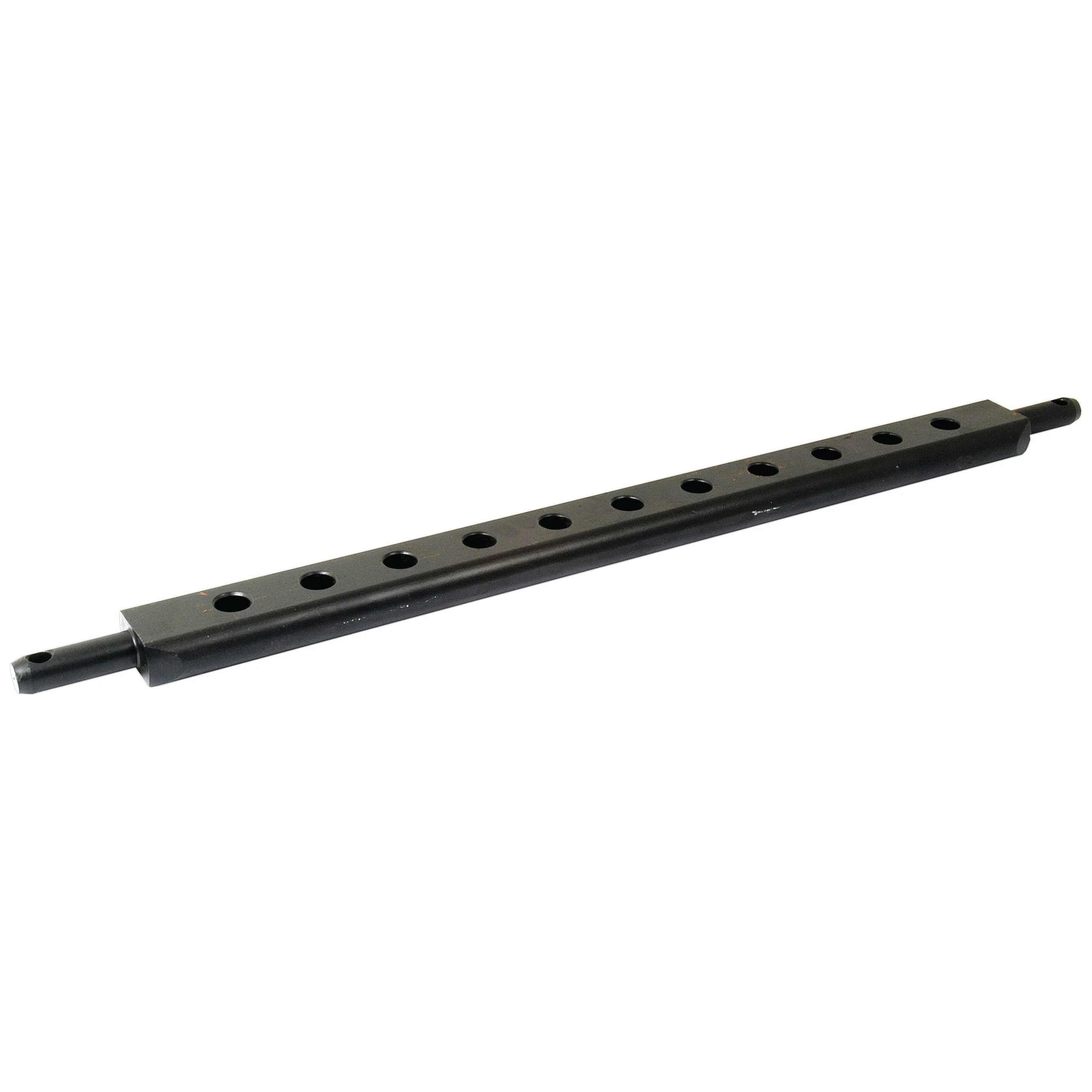

Flat Drawbar (Cat. 2) - 11 Holes, 781mm | Sparex Part No. S.126

Enhance your agricultural equipment with the Sparex Flat Drawbar, designed for durability and performance. This high-quality drawbar features a pin diameter of 28mm, a hole diameter of 20mm, and hole centers spaced at 54mm, making it an ideal choice for various applications.

Product Specifications

• Alternative to: 49126
• Brand: Sparex
• Category: 2
• D (ins): 2 3/8
• D (mm): 60
• E (ins): 2 3/8
• E (mm): 60
• Hole centers (mm): 54
• Hole Centers (ins): 2 1/8
• Hole Ø (ins): 25/32
• Hole Ø (mm): 20
• Linch Pin Ø (mm): 11
• Number of holes: 11
• Overall length (ins): 30 3/4
• Overall length (mm): 781
• Pin Ø (ins): 1 1/8
• Pin Ø (mm): 28
• Section (mm): 30x63
• Section (ins): 1 3/16x2 1/2
• Tariff Code: 7319909000
• Tensile Strength (kgs/cm²): 8000
• Tensile Strength (tons/in²): 50
• Working length (ins): 2 3/8
• Working length (mm): 60

Suitable For

This Flat Drawbar is compatible with a variety of agricultural machinery, including:

• Allis Chalmers - Various Models
• Ford / New Holland - Models: 4000, 4100, 4600, 5000, 5030, 5100, 5110, 5200, 5340, 5600, 5610, 5640, 5900, 6410, 6610, 6640, 6700, 6710, 6810, 7000, 7100, 7200, 7410, 7600, 7610, 7710, 7740, 8010, MAJOR, SUPER MAJOR
• Massey Ferguson - Models: 135, 135 GAS / 135 PETROL, 148, 165, 175, 178, 185, 188, 240, 265, 275, 35, 35 GAS / 35 PETROL, 375E BRAZILIAN, 550, 565, 575, 65

Manufacturer Information

This product is manufactured to fit various OEM specifications:

• Case IH / International Harvester - Part No: 3140007R2
• Ford / New Holland - Part Nos: 8201834, 201834, 81811489, 3140007R2
• Landini - Part Nos: 3306432M2, 829032M1, 3813740P1
• Massey Ferguson - Part Nos: 3306432M2, 3813740M1, 829032M1, 3813740P1

Upgrade your equipment with the Sparex Flat Drawbar, engineered for strength and reliability in demanding agricultural environments.
