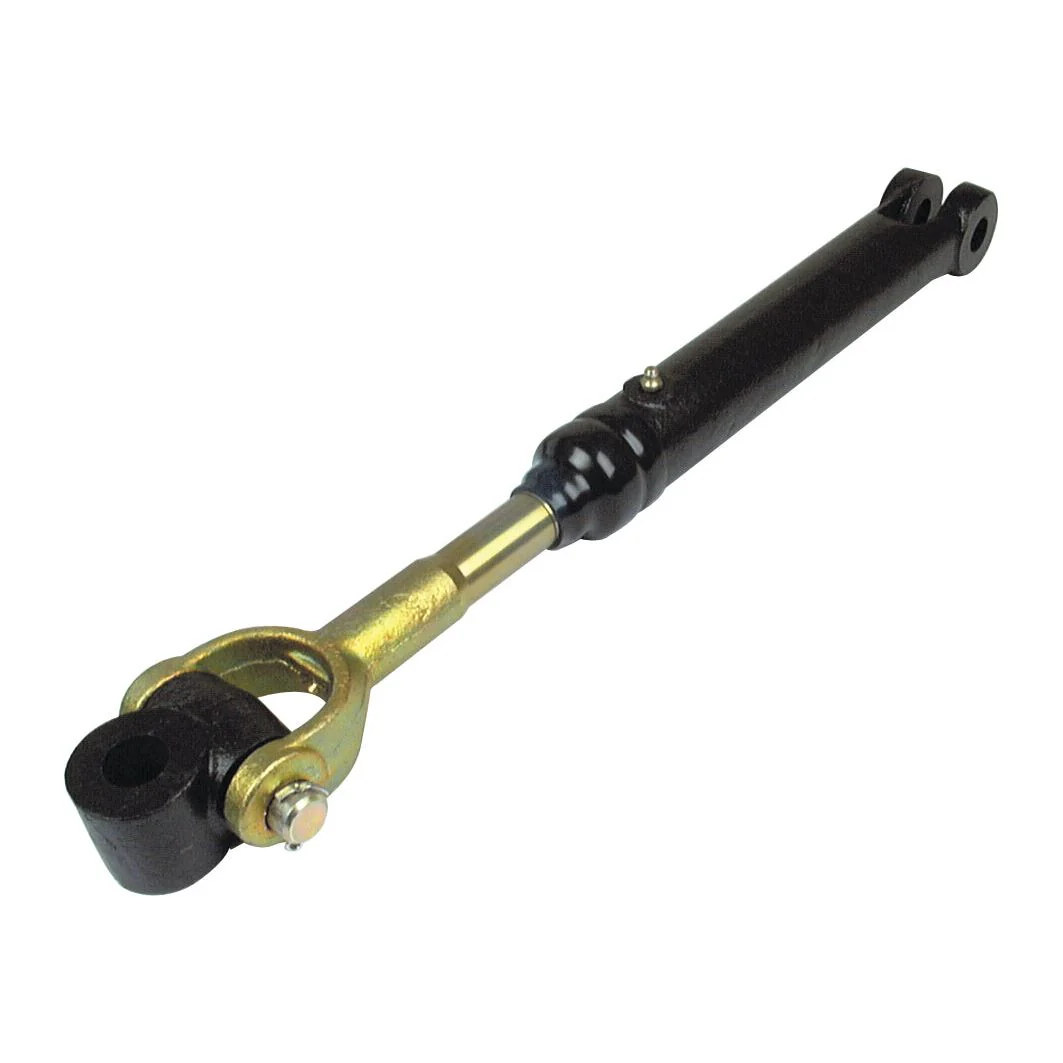

Levelling Box Assembly - Knuckle Ø 16.5mm- Fork Hole Ø 16mm - Min. Length:495mm - 3/4 UNC | Sparex Part No.S.17954

This high-quality Levelling Box Assembly is a Sparex part number S.17954, designed for use with Massey Ferguson tractors. It features a knuckle diameter of 16.5mm and a fork hole diameter of 16mm, with a minimum length of 495mm and a maximum length of 520mm. The internal width is 20mm and the external width is 45mm.

Key Features:

• Brand: Spenco
• End Fittings A: Knuckle Ø 16.5mm
• End Fittings B: Fork Hole Ø 16mm
• Fork Hole Ø (ins): 5/8
• Fork Hole Ø (mm): 16
• Knuckle Bore Ø (ins): 5/8
• Knuckle Bore Ø (mm): 16.5
• Knuckle Width (ins): 1 7/8
• Knuckle Width (mm): 48
• Maximum Length (ins): 20 15/32
• Maximum Length (mm): 520
• Minimum Length (ins): 19 31/64
• Minimum Length (mm): 495
• Thread size: 3/4
• Thread type: UNC
• Width External (mm): 45
• Width External ins: 1 49/64
• Width Internal (mm): 20
• Width Internal ins: 25/32
• Yoke: S.16020

Suitable For:

• Massey Ferguson 35
• Massey Ferguson 35 GAS / 35 PETROL
• Massey Ferguson 35X
• Massey Ferguson FE35

Additional Information:

• Related products: 16020, 1640, 1795, 2985
• Tariff Code: 7303009090

This product is not associated with any particular OEM part number.
