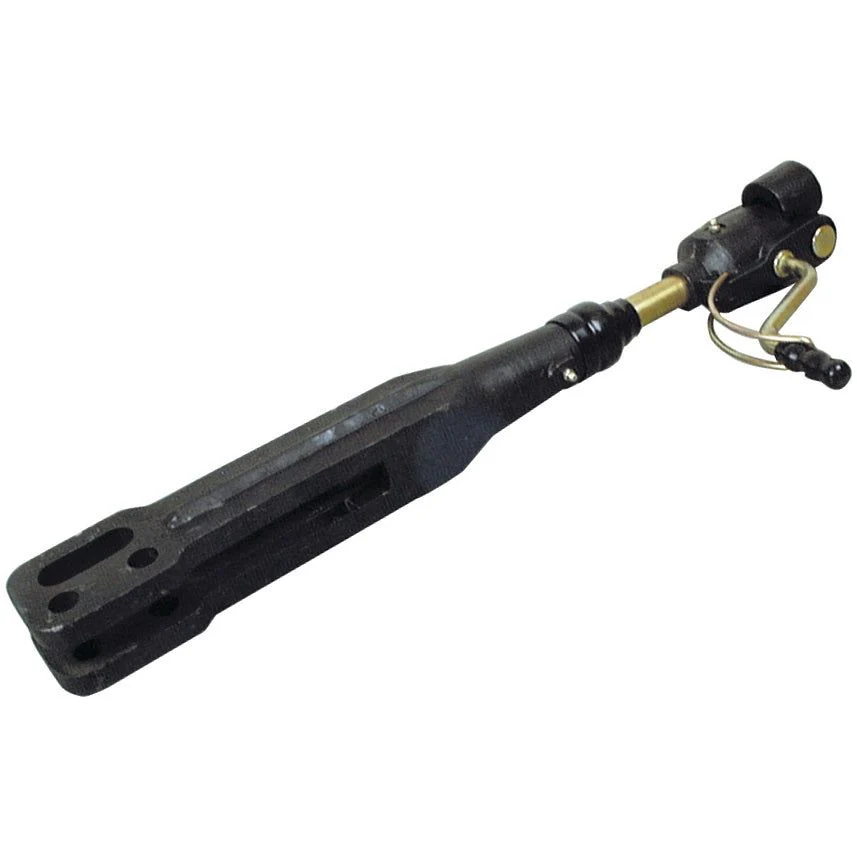

Levelling Box Assembly | Sparex Part No. S.8626

Enhance your agricultural machinery with the Levelling Box Assembly, designed for optimal performance and durability. This assembly features a knuckle diameter of Ø 22mm and fork hole dimensions of Ø 20 & 21x63mm, ensuring compatibility with a variety of equipment. With a minimum length of 665mm and a maximum length of 770mm, it provides the flexibility needed for various applications.

Product Specifications

• Minimum Length: 665mm
• Maximum Length: 770mm
• Internal Width: 22mm
• External Width: 57mm
• Alternative to: 48035
• Brand: Spenco
• End Fittings A: Knuckle Ø 22mm
• End Fittings B: Fork Hole Ø 20 & 21x63mm
• Fork Hole Ø (inches): 25/32 & 53/64x2 31/64
• Fork Hole Ø (mm): 20 & 21x63
• Compatible Forks: S.8625 or S.48040
• Gearbox Compatibility: S.4280
• Knuckle Bore Ø (inches): 7/8
• Knuckle Bore Ø (mm): 22
• Knuckle Width (inches): 1 21/32
• Knuckle Width (mm): 42
• Thread Size: 1 UNC
• Tariff Code: 7303009090
• Notes: Not suitable for 'through the cab operation'
• Related Products: 16767, 4280, 4282, 4283, 4288, 8625

Suitable For

This Levelling Box Assembly is compatible with a range of Massey Ferguson models, including:

• 265, 265 S (TR), 275, 285 (FR), 285 S (TR), 290, 298, 350, 362, 365, 372, 375, 375E BRAZILIAN, 382, 390, 390E BRAZILIAN, 390T, 398, 399, 575, 590, 675, 690, 698, 698T, 699
• TAFE 8504

Manufacturer Information

Also compatible with Landini models:

• 1861392M3, 1863885M1, 195648M1, 200191M1, 1860834M2, 181345M1, 183630M1, 1682387M91, 1682345M1, 1660438M92, 195644M1, 897653M2, 831263M1, 1660438V92, 352438X1

And additional Massey Ferguson parts:

• 1693987M94, 1660438M92, 1693989M94, 1693985M94, 1693985M94, 1682387M91, 1863053M92, 1863053M93, 1863053M94
