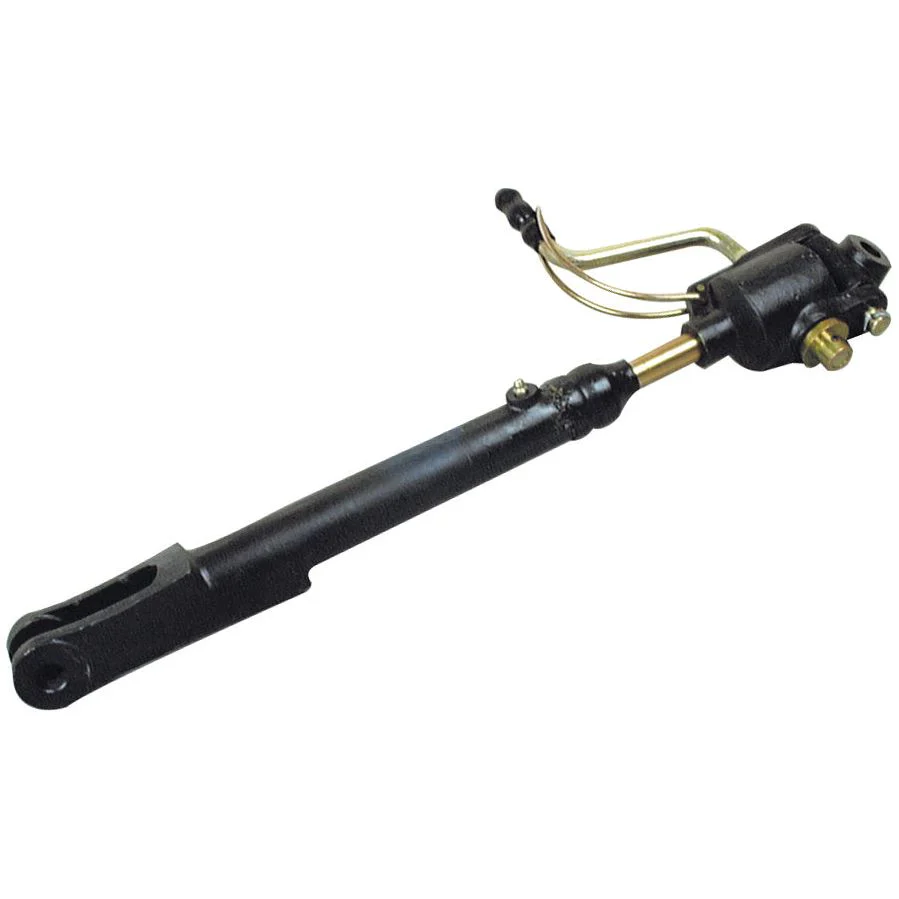

Levelling Box Assembly - Knuckle Ø 16.5mm - Fork Hole Ø 16mm - Min. Length: 500mm - 3/4 UNC | Sparex Part No. S.575

Introducing the Levelling Box Assembly, a high-quality component designed for optimal performance in agricultural machinery. With a minimum length of 500mm and a maximum length of 600mm, this assembly is engineered to meet your specific needs. The internal width measures 18mm, while the external width is 42mm, ensuring a perfect fit for your equipment.

Product Specifications

• Alternative to: 48045, 49575
• Brand: Spenco
• End Fittings A: Knuckle Ø 16.5mm
• End Fittings B: Fork Hole Ø 16mm
• Hazardous Material: No
• Fork Hole Ø: 5/8 inches (16mm)
• Fork: S.392
• Gearbox: S.539
• Knuckle Bore Ø: 5/8 inches (16.5mm)
• Knuckle Width: 1 7/8 inches (48mm)
• Maximum Length: 23 5/8 inches (600mm)
• Minimum Length: 19 11/16 inches (500mm)
• Related Products: 16020, 1640, 16762, 1795, 17954, 237, 392, 40968, 539, 74345
• Tariff Code: 7303009090
• Thread Size: 3/4
• Thread Type: UNC
• Width External: 42mm (1 21/32 inches)
• Width Internal: 18mm (45/64 inches)

Suitable For

This Levelling Box Assembly is compatible with a range of Massey Ferguson models including 35, 35 GAS, 35 PETROL, 35 US BUILT, 35X, 50, and FE35.

Manufacture Information

Also suitable for Landini models with OEM part numbers 182642M94, and for Massey Ferguson models 182642M91, 182642M94, and 354068X1.
