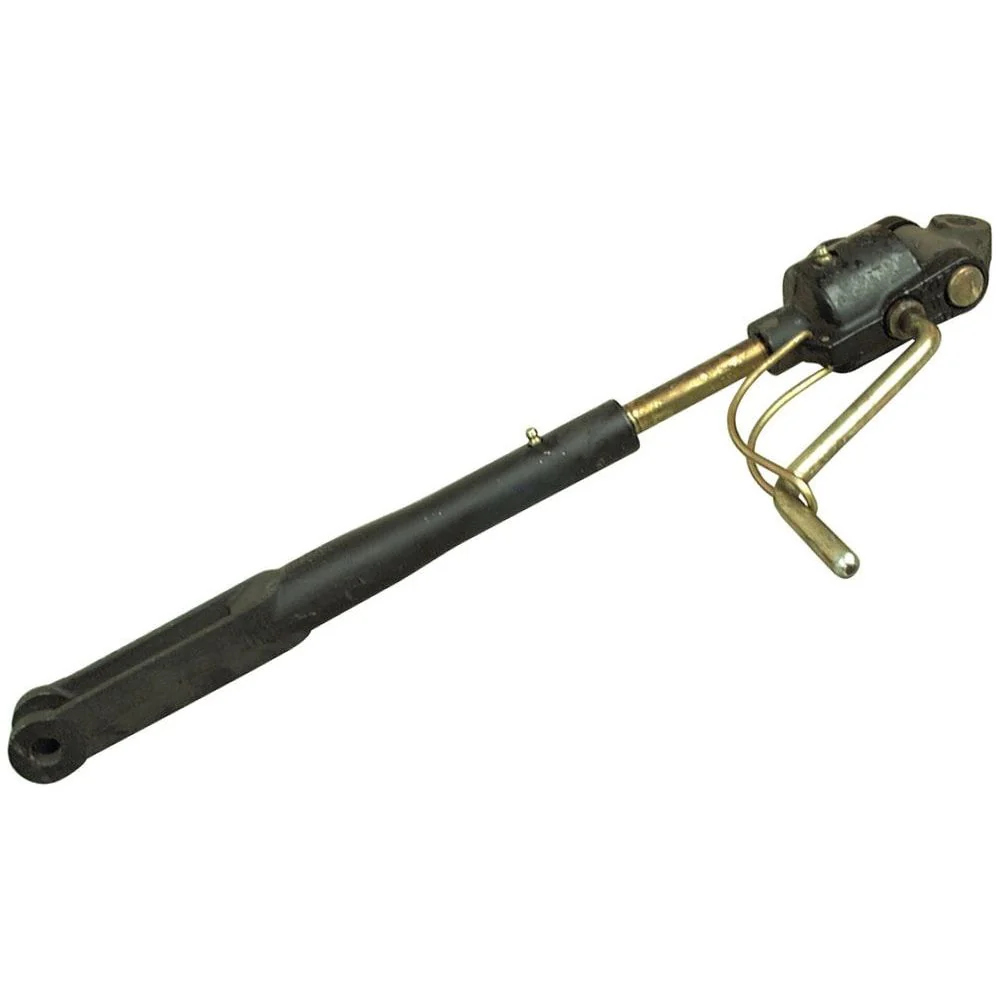

Levelling Box Assembly - Knuckle Ø 16.5mm - Fork Hole Ø 16mm - Min. Length: 545mm - 3/4 UNC | Sparex Part No. S.572

Discover the high-quality Levelling Box Assembly designed for optimal performance and durability. With a minimum length of 545mm and a maximum length of 640mm, this assembly is perfect for various applications. The internal width measures 18mm, while the external width is 42mm, ensuring a precise fit for your machinery.

Product Specifications

• Alternative to: 579
• Brand: Spenco
• End Fittings A: Knuckle Ø 16.5mm
• End Fittings B: Fork Hole Ø 16mm
• Fork Hole Ø (ins): 5/8
• Fork Hole Ø (mm): 16
• Fork: S.392
• Gearbox: S.539
• Knuckle Bore Ø (ins): 5/8
• Knuckle Bore Ø (mm): 16.5
• Knuckle Width (ins): 1 7/8
• Knuckle Width (mm): 48
• Maximum Length (ins): 25 13/64
• Maximum Length (mm): 640
• Minimum Length (ins): 21 29/64
• Minimum Length (mm): 545
• Related products: 11316, 1640, 1795, 234, 392, 539, 74345
• Tariff Code: 7303009090
• Thread size: 3/4
• Thread type: UNC
• Width External (mm): 42
• Width External (ins): 1 21/32
• Width Internal (mm): 18
• Width Internal (ins): 45/64

Suitable For

This Levelling Box Assembly is compatible with a range of Massey Ferguson models including:

• 135
• 135 US BUILT
• 150
• 165
• 165 US BUILT
• 50
• 65
• 65 US BUILT
• 765
• 865

Manufacturer Information

This product is manufactured to fit various OEM specifications, including:

• Landini - 184347M93
• Massey Ferguson - 193502M91, 195644M1, 184346M93, 184347M93, 184347M92, 3580777M93, 193501M91, 897679M91, 897679M92
• Renault - 7700052919
