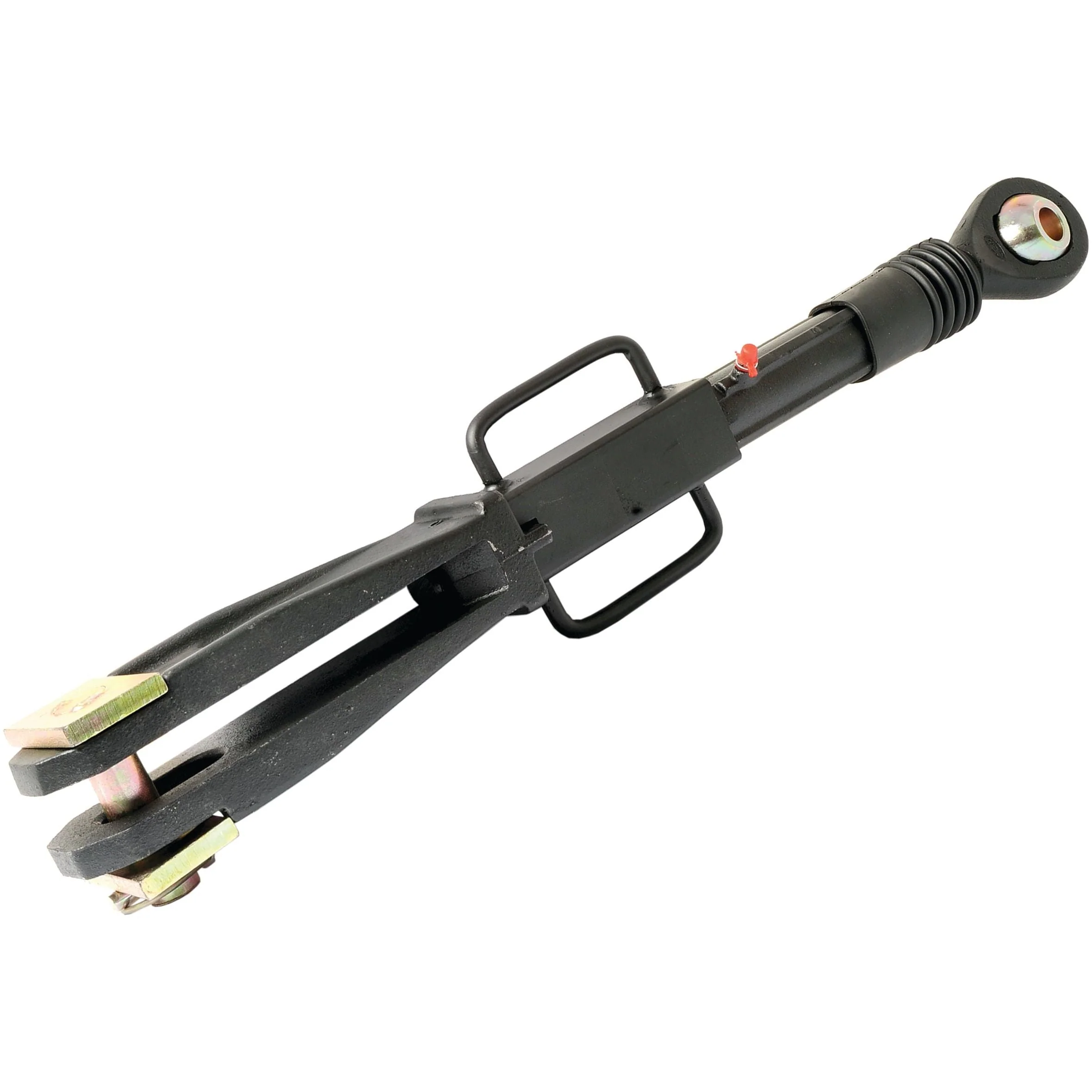

Levelling Box Assembly - Ball Ø 22mm - Fork Hole Ø 22x60mm - Min. Length: 677mm - M27x3 Metric | Sparex Part No. S.44062

Enhance your agricultural machinery with the high-quality Levelling Box Assembly from Sparex. Designed for durability and precision, this assembly features a minimum length of 677mm and a maximum length of 875mm, making it versatile for various applications. The internal width measures 32mm, while the external width is 77mm.

Product Specifications

• Ball Size: 55/64 in (22 mm)
• Ball Width: 121/32 in (42 mm)
• Brand: Sparex
• End Fittings A: Ball Ø 22mm
• End Fittings B: Fork Hole Ø 22x60mm
• Fork Hole Ø: 55/64x2 23/64 in (22x60 mm)
• Maximum Length: 34 29/64 in (875 mm)
• Minimum Length: 24 21/32 in (677 mm)
• Related Products: 149940, 149941
• Tariff Code: 7303009090
• Thread Size: M27x3
• Thread Type: Metric
• Width External: 77 mm (3 1/32 in)
• Width Internal: 32 mm (1 17/64 in)

Suitable For

This Levelling Box Assembly is compatible with a wide range of Massey Ferguson models, including:

• 3050, 3060, 3065, 3070, 3075, 3080, 3085, 3090, 3095
• 3115, 3120, 3125, 5425, 5435, 5445, 5455, 5460, 5465, 5470
• 6110, 6120, 6130, 6140, 6150, 6160, 6170, 6180, 6190
• 6235, 6245, 6255, 6260, 6265, 6270, 6280, 6290, 6445
• 6455, 6460, 6465, 6470, 6475, 6480

Manufacturer Information

Manufactured by Massey Ferguson, Part No. 3616223M92.
