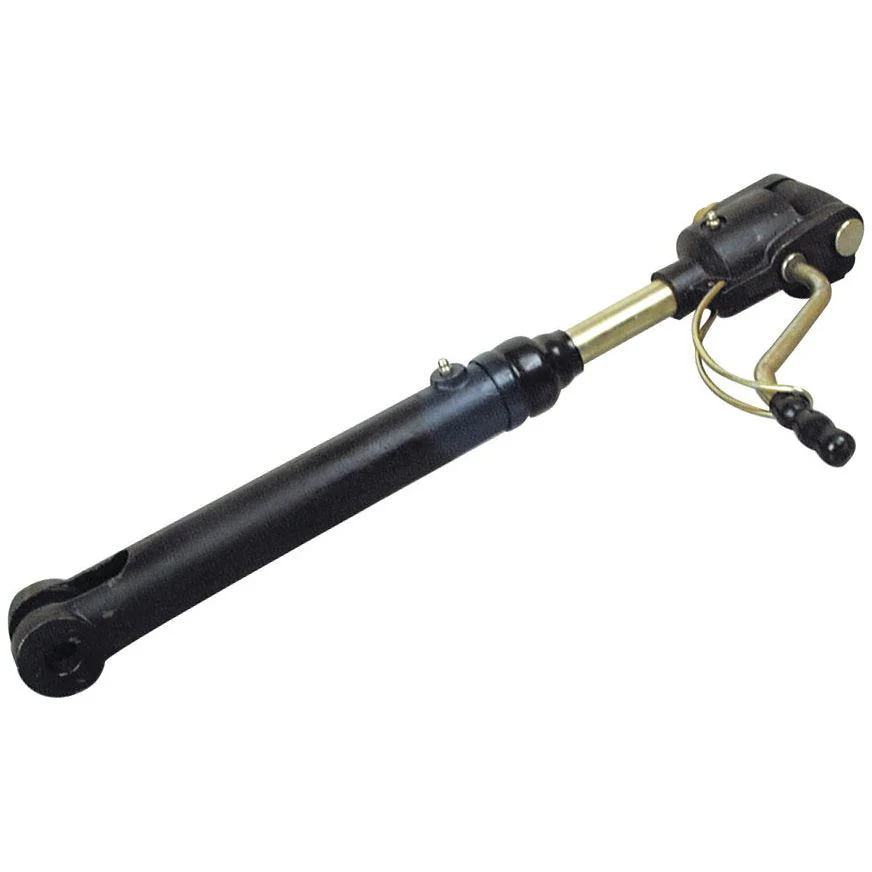

Levelling Box Assembly - Knuckle Ø 22mm - Fork Hole Ø 19mm - Min. Length: 520mm - 1 UNC | Sparex Part No. S.4290

Enhance your agricultural machinery with the Levelling Box Assembly from Sparex. Designed for durability and precision, this assembly features a minimum length of 520mm and a maximum length of 630mm, making it an ideal choice for various applications.

Product Specifications

• Brand: Spenco
• End Fittings A: Knuckle Ø 22mm
• End Fittings B: Fork Hole Ø 19mm
• Fork Hole Ø: 3/4 in (19 mm)
• Fork: S.4281
• Gearbox: S.4280
• Knuckle Bore Ø: 7/8 in (22 mm)
• Knuckle Width: 1 21/32 in (42 mm)
• Maximum Length: 24 51/64 in (630 mm)
• Minimum Length: 20 15/32 in (520 mm)
• Related Products: 11506, 4280, 4281, 4282, 4283, 4286
• Tariff Code: 7303009090
• Thread Size: 1
• Thread Type: UNC
• Width External: 54 mm (2 1/8 in)
• Width Internal: 18 mm (45/64 in)

Suitable For

This Levelling Box Assembly is compatible with Massey Ferguson models: 165, 360, 50, 65, and 765.

Manufacture Information

Also suitable for Landini models: 1884760M92, 893569M92, and Massey Ferguson models: 893569M92, 1884760M94, 1884760M92.
