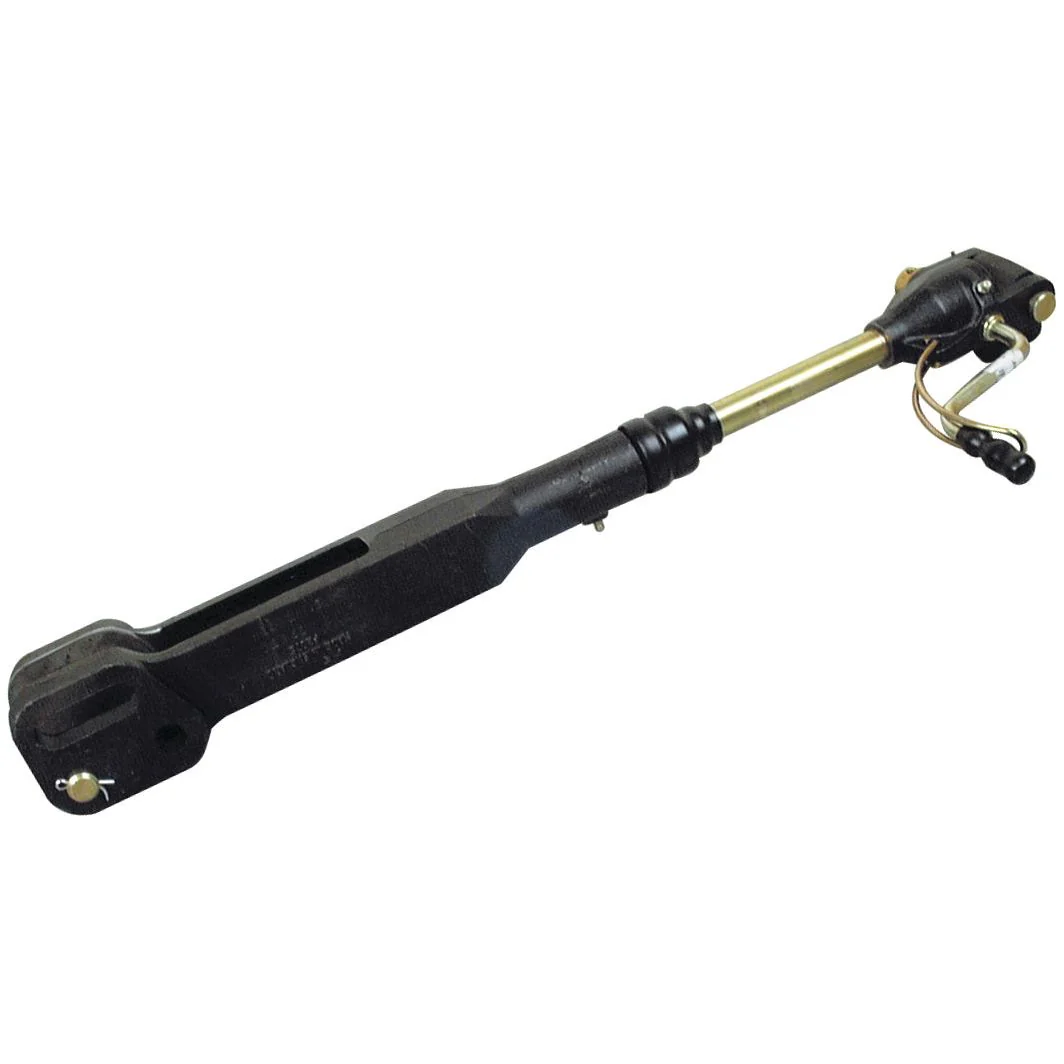

Levelling Box Assembly - Knuckle Ø 22mm - Fork Hole Ø 20.5 & 22x64mm

Product SKU: SP-42054

Brand: Spenco

Dimensions: Minimum Length: 760mm | Maximum Length: 860mm | Internal Width: 31mm | External Width: 75mm

Product Specifications

• End Fittings A: Knuckle Ø 22mm
• End Fittings B: Fork Hole Ø 20.5 & 22x64mm
• Fork Hole Ø (inches): 13/16 & 7/8x2 33/64
• Fork Hole Ø (mm): 20.5 & 22x64
• Gearbox: S.4280
• Knuckle Bore Ø (inches): 7/8
• Knuckle Bore Ø (mm): 22
• Knuckle Width (inches): 1 21/32
• Knuckle Width (mm): 42
• Maximum Length (inches): 33 51/64
• Maximum Length (mm): 860
• Minimum Length (inches): 29 59/64
• Minimum Length (mm): 760
• Related Products: 42053, 4280, 4282, 4283, 4288
• Tariff Code: 7303009090
• Thread Size: 1
• Thread Type: UNC
• External Width (mm): 75
• External Width (inches): 2 61/64
• Internal Width (mm): 31
• Internal Width (inches): 1 7/32

Compatibility Information

This Levelling Box Assembly is suitable for:

• Massey Ferguson Models: 3050, 3060, 3065, 3070, 3080, 3090

Manufacturer Information

Compatible with the following OEM part numbers:

• Landini: 3382727M93, 3384087M93
• Massey Ferguson: 3384087M93, 3382727M93
