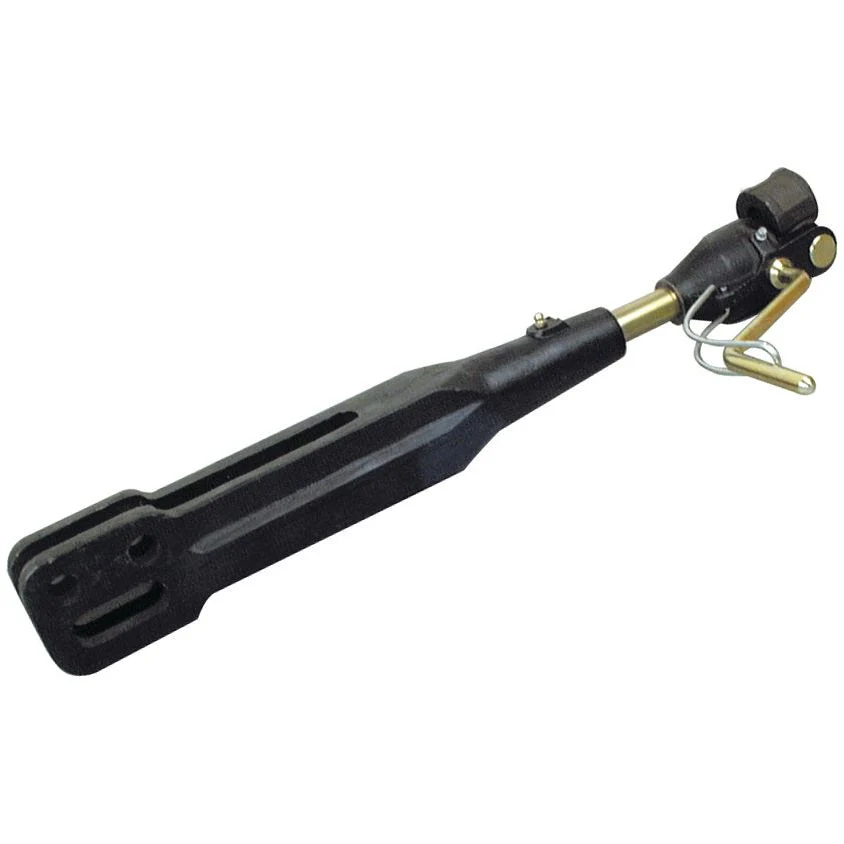

Levelling Box Assembly - Knuckle Ø 22mm - Fork Hole Ø 20 & 21x63mm - Min. Length 1 UNC | Sparex Part No. S.42049

Enhance your agricultural machinery with the high-quality Levelling Box Assembly from Sparex. Designed for durability and precision, this assembly features a knuckle diameter of 22mm and fork hole dimensions of 20 & 21x63mm. With a minimum length of 22mm and an external width of 57mm, it is engineered to meet the demands of various farming applications.

Product Specifications

• Brand: Sparex
• End Fittings A: Knuckle Ø 22mm
• End Fittings B: Fork Hole Ø 20 & 21x63mm
• Fork Hole Ø (ins): 25/32 & 53/64x2 31/64
• Fork Hole Ø (mm): 20 & 21x63
• Knuckle Bore Ø (ins): 7/8
• Knuckle Bore Ø (mm): 22
• Knuckle Width (ins): 1 21/32
• Knuckle Width (mm): 42
• Related Products: 4282, 8625
• Tariff Code: 7303009090
• Thread Size: 1
• Thread Type: UNC
• Width External (mm): 57
• Width External (ins): 2 1/4
• Width Internal (mm): 22
• Width Internal (ins): 7/8

Suitable For

This levelling box assembly is compatible with:

• Landini Models: 5830, 6030
• Massey Ferguson Models: 253, 263, 283 BRAZILIAN, 360, 365, 375, 383, 390, 390T, 393

Manufacturer Information

OEM Fitment Information for Massey Ferguson: 1693989M94, 1693990M95

Upgrade your machinery with the reliable and efficient Levelling Box Assembly from Sparex, ensuring optimal performance in your farming operations.
