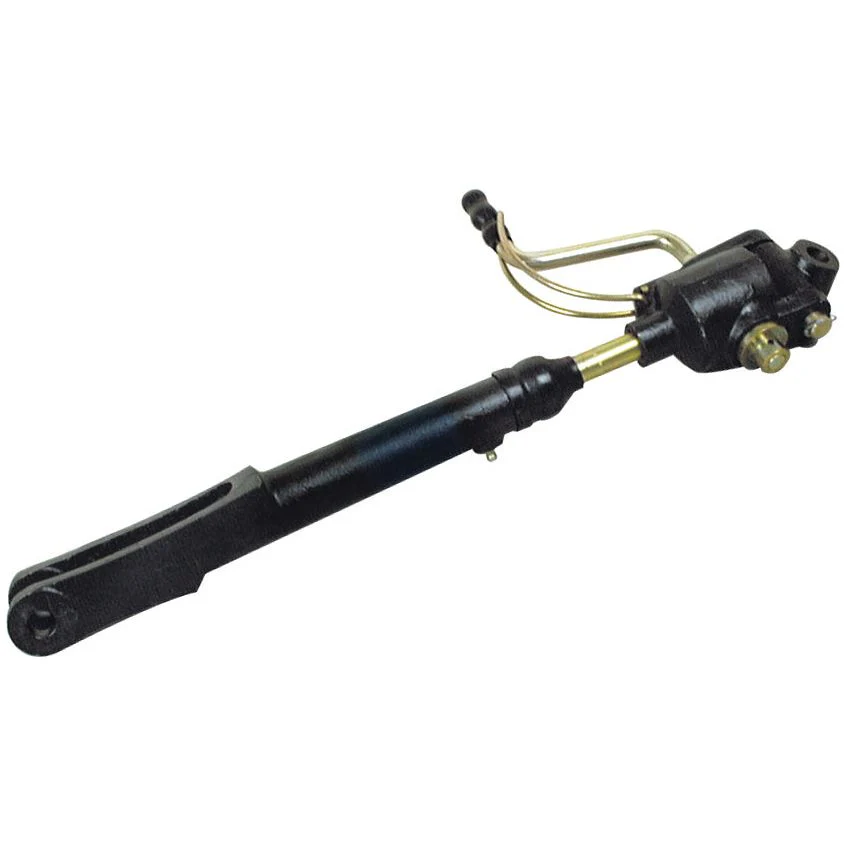

Levelling Box Assembly - Knuckle Ø 16.5mm - Fork Hole Ø 16mm - Min. Length: 475mm - 3/4 UNC | Sparex Part No. S.3233

Discover the high-quality Levelling Box Assembly designed for optimal performance and durability. With a minimum length of 475mm and a maximum length of 575mm, this assembly is perfect for various applications. The internal width measures 20mm, while the external width is 45mm, ensuring a precise fit for your machinery.

Product Specifications

• Alternative to: 48045
• Brand: Spenco
• End Fittings A: Knuckle Ø 16.5mm
• End Fittings B: Fork Hole Ø 16mm
• Fork Hole Ø (ins): 5/8
• Fork Hole Ø (mm): 16
• Fork: S.2985
• Gearbox: S.539
• Knuckle Bore Ø (ins): 5/8
• Knuckle Bore Ø (mm): 16.5
• Knuckle Width (ins): 1 7/8
• Knuckle Width (mm): 48
• Maximum Length (ins): 22 41/64
• Maximum Length (mm): 575
• Minimum Length (ins): 18 45/64
• Minimum Length (mm): 475
• Related products: 16020, 1640, 16762, 1795, 237, 2985, 40969, 539, 74345
• Tariff Code: 7303009090
• Thread size: 3/4
• Thread type: UNC
• Width External (mm): 45
• Width External (ins): 1 49/64
• Width Internal (mm): 20
• Width Internal (ins): 25/32

Suitable For

This Levelling Box Assembly is compatible with Massey Ferguson models: 133, 135, 135 GAS / 135 PETROL, 140, 152, 20C, 230, 230 US BUILT, 245, and 3165.

Manufacture Information

OEM part numbers include Massey Ferguson 888628M91 and 1884342M92.
