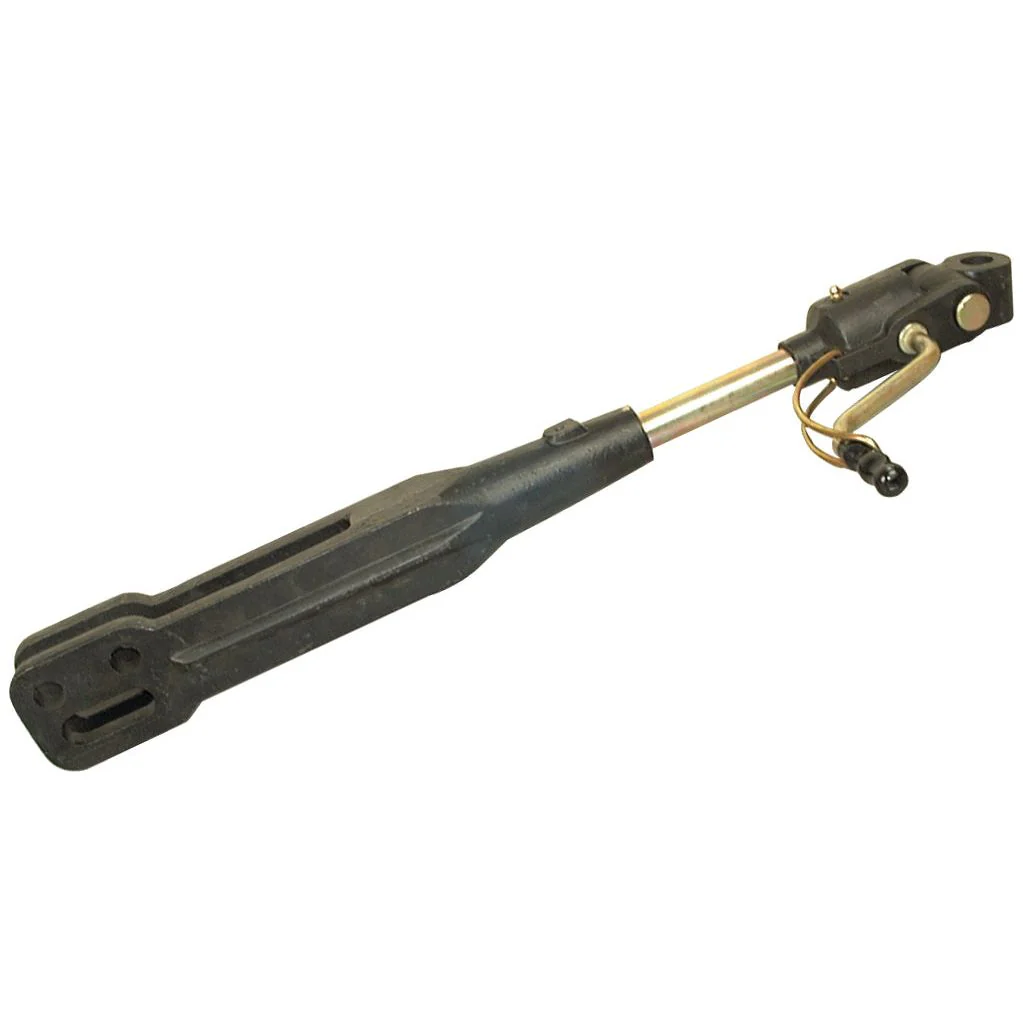

Levelling Box Assembly - Knuckle Ø 22mm- Fork Hole Ø 19mm - Min. Length:650mm - 1 UNS | Sparex Part No.S.16876

This high-quality Levelling Box Assembly is a Sparex part, designed for use with Massey Ferguson tractors. It features a knuckle diameter of 22mm and a fork hole diameter of 19mm, with a minimum length of 650mm and a maximum length of 760mm. This assembly is compatible with a range of Massey Ferguson models, including the 185 and 188.

Product Specifications

• Brand: Spenco
• End Fittings A: Knuckle Ø 22mm
• End Fittings B: Fork Hole Ø 19mm
• Fork Hole Ø (ins): 3/4
• Fork Hole Ø (mm): 19
• Fork: S.16877
• Gearbox: S.4280
• Knuckle Bore Ø (ins): 7/8
• Knuckle Bore Ø (mm): 22
• Knuckle Width (ins): 1 21/32
• Knuckle Width (mm): 42
• Maximum Length (ins): 29 59/64
• Maximum Length (mm): 760
• Minimum Length (ins): 25 19/32
• Minimum Length (mm): 650
• Related products: 16767, 4280, 4282, 4283, 4288
• Tariff Code: 7303009090
• Thread size: 1
• Thread type: UNS

Suitable For

This Levelling Box Assembly is suitable for the following Massey Ferguson models:

• 185
• 188

Manufacture Information

This Levelling Box Assembly is compatible with the following Massey Ferguson OEM part numbers:

• 1808329M91
• 1863884M92
• 1863884M94

Order your Levelling Box Assembly today and ensure your Massey Ferguson tractor is running smoothly.
