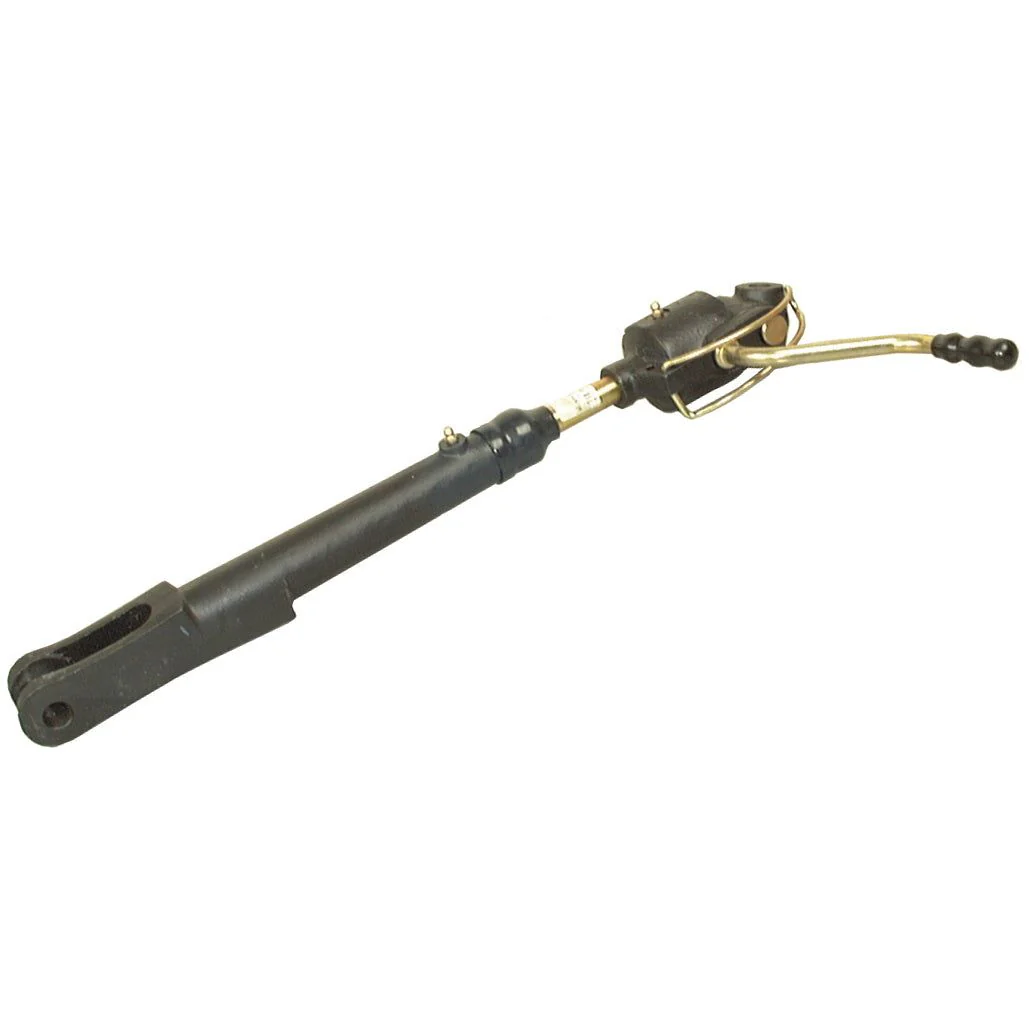

Levelling Box Assembly - Knuckle Ø 16.5mm- Fork Hole Ø 16mm - Min. Length:510mm - 3/4 UNC | Sparex Part No.S.16874

This Levelling Box Assembly is a high-quality replacement part for various Landini and Massey Ferguson tractors. It features a knuckle diameter of 16.5mm, a fork hole diameter of 16mm, and a minimum length of 510mm. The assembly is constructed with durable materials to ensure long-lasting performance.

Product Specifications

• Brand: Spenco
• End Fittings A: Knuckle Ø 16.5mm
• End Fittings B: Fork Hole Ø 16mm
• Fork Hole Ø (ins): 5/8
• Fork Hole Ø (mm): 16
• Fork: S.2985
• Gearbox: S.539
• Knuckle Bore Ø (ins): 5/8
• Knuckle Bore Ø (mm): 16.5
• Knuckle Width (ins): 1 7/8
• Knuckle Width (mm): 48
• Maximum Length (ins): 23 13/16
• Maximum Length (mm): 605
• Minimum Length (ins): 20 5/64
• Minimum Length (mm): 510
• Related products: 1640, 1795, 234, 2985, 539, 74345
• Tariff Code: 7303009090
• Thread size: 3/4
• Thread type: UNC
• Width External (mm): 45
• Width External ins: 1 49/64
• Width Internal (mm): 20
• Width Internal ins: 25/32

Suitable For

This Levelling Box Assembly is compatible with the following Massey Ferguson models:

• 133
• 135
• 135 GAS / 135 PETROL
• 135 US BUILT
• 140
• 152
• 165
• 165 US BUILT
• 20C
• 20D
• 240
• 340
• 550

It is also compatible with the following Landini models:

• 897678M93
• 1660373M92

Manufacturer Information

This Levelling Box Assembly is manufactured by Spenco and is distributed by Sparex.

For more information about this product, please contact Sparex directly.
