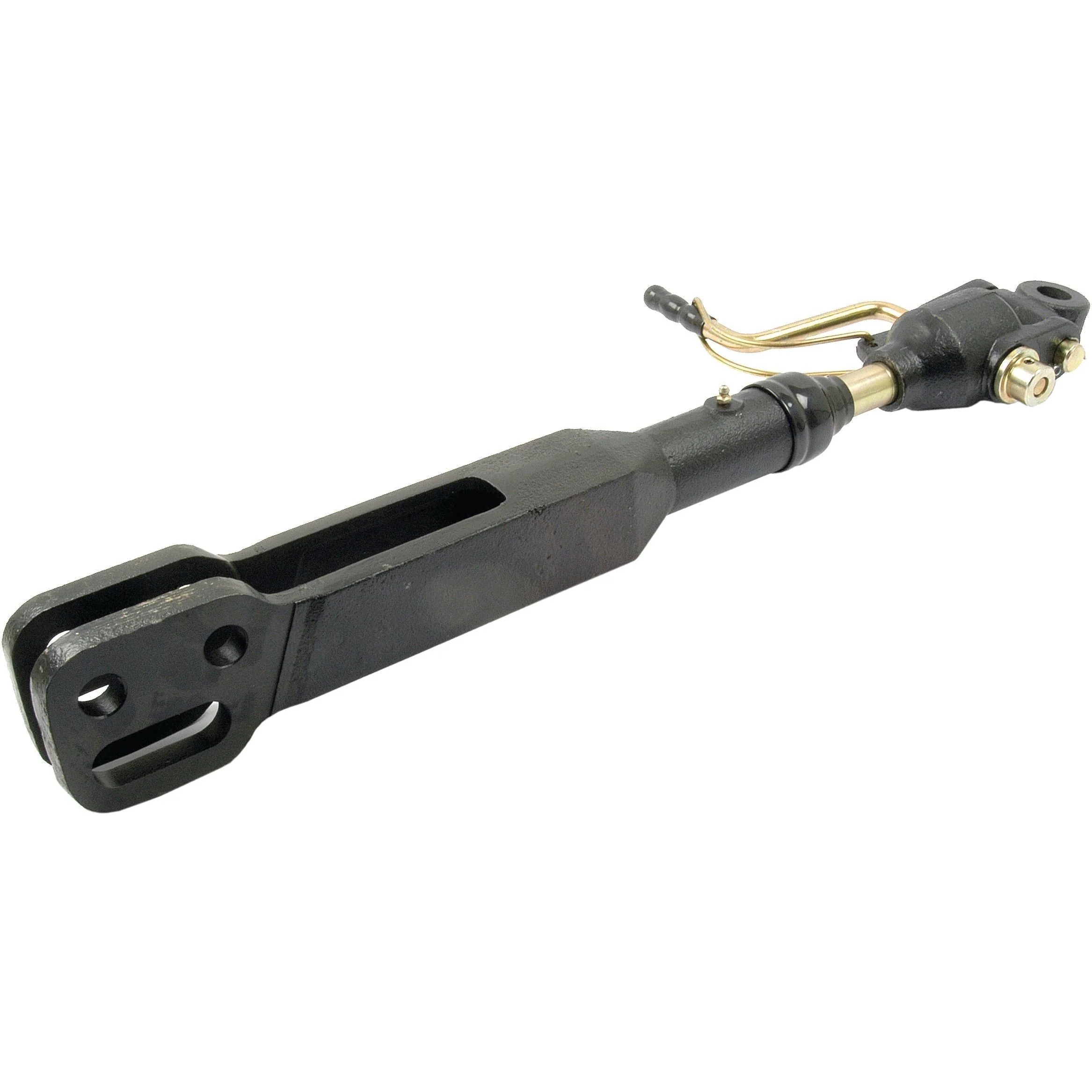

Levelling Box Assembly - Knuckle Ø 22mm- Fork Hole Ø 20 & 21x63mm - Min. Length:540mm - 1 UNC | Sparex Part No.S.16863

This high-quality Levelling Box Assembly is a genuine Sparex part, designed for use with Massey Ferguson tractors. It features a knuckle diameter of 22mm, a fork hole diameter of 20 & 21x63mm, and a minimum length of 540mm. The assembly is constructed with durable materials to ensure long-lasting performance.

Key Features:

• Brand: Spenco
• Minimum Length: 540mm
• Maximum Length: 670mm
• Width Internal: 22mm
• Width External: 57mm
• Knuckle Bore Ø: 22mm (7/8 ins)
• Knuckle Width: 42mm (1 21/32 ins)
• Fork Hole Ø: 20 & 21x63mm (25/32 & 53/64x2 31/64 ins)
• Fork: S.8625
• Gearbox: S.4280
• Thread size: 1 UNC
• Tariff Code: 7303009090

Suitable For:

This Levelling Box Assembly is compatible with the following Massey Ferguson tractor models:

• 168
• 175
• 178
• 185
• 188
• 265
• 365
• 375
• 390
• 390T
• 575
• 675

Manufacturer Information:

This Levelling Box Assembly is manufactured by Sparex and is a direct replacement for the following Massey Ferguson OEM parts:

• 1693987M94
• 1693 987M94
• 1863053M94

Order your Levelling Box Assembly today and ensure your Massey Ferguson tractor is running smoothly.
