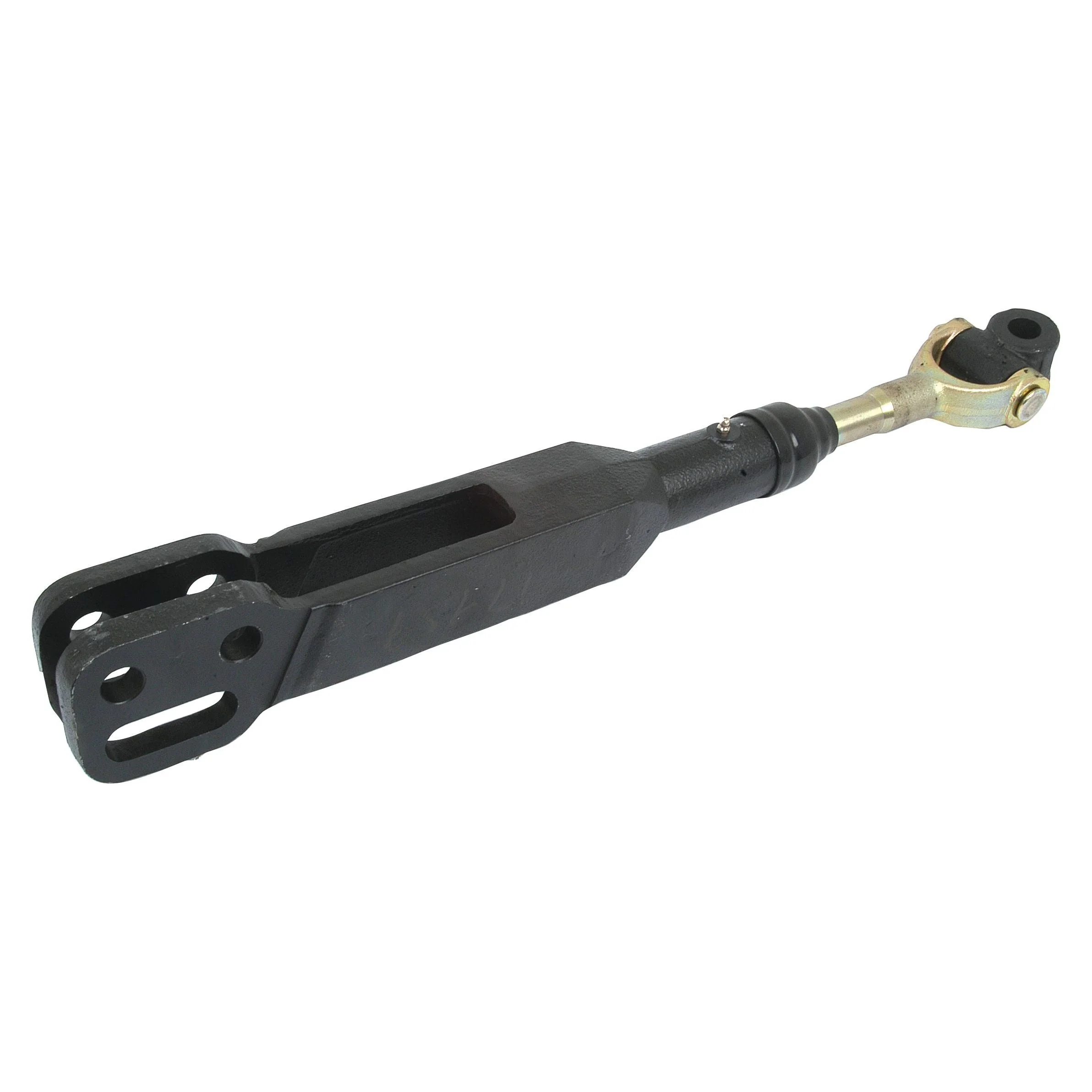

Levelling Box Assembly - Knuckle Ø 22mm- Fork Hole Ø 20 & 21x63mm - Min. Length:565mm - 1 UNC | Sparex Part No.S.17959

This high-quality Levelling Box Assembly is a Sparex part, designed for use with Massey Ferguson tractors. It features a knuckle with a 22mm diameter and a fork hole with a diameter of 20 & 21x63mm. The minimum length of the assembly is 565mm, and the maximum length is 640mm. It has a 1 UNC thread size and is made by Spenco.

Product Specifications

• Brand: Spenco
• End Fittings A: Knuckle Ø 22mm
• End Fittings B: Fork Hole Ø 20 & 21x63mm
• Fork Hole Ø (ins): 25/32 & 53/64x2 31/64
• Fork Hole Ø (mm): 20 & 21x63
• Knuckle Bore Ø (ins): 7/8
• Knuckle Bore Ø (mm): 22
• Knuckle Width (ins): 1 21/32
• Knuckle Width (mm): 42
• Maximum Length (ins): 25 13/64
• Maximum Length (mm): 640
• Minimum Length (ins): 22 1/4
• Minimum Length (mm): 565
• Related products: 16021, 4282, 4283, 8625
• Tariff Code: 7303009090
• Thread size: 1
• Thread type: UNC
• Width External (mm): 57
• Width External ins: 2 1/4
• Width Internal (mm): 22
• Width Internal ins: 7/8
• Yoke: S.16021

Suitable For

This Levelling Box Assembly is compatible with the following Massey Ferguson tractor models:

• 168
• 175
• 178
• 185
• 188
• 265
• 365
• 375
• 390
• 390T
• 575
• 675

Manufacturer Information

This product is not associated with any particular OEM part number.

Order your Levelling Box Assembly today and keep your Massey Ferguson tractor running smoothly!
