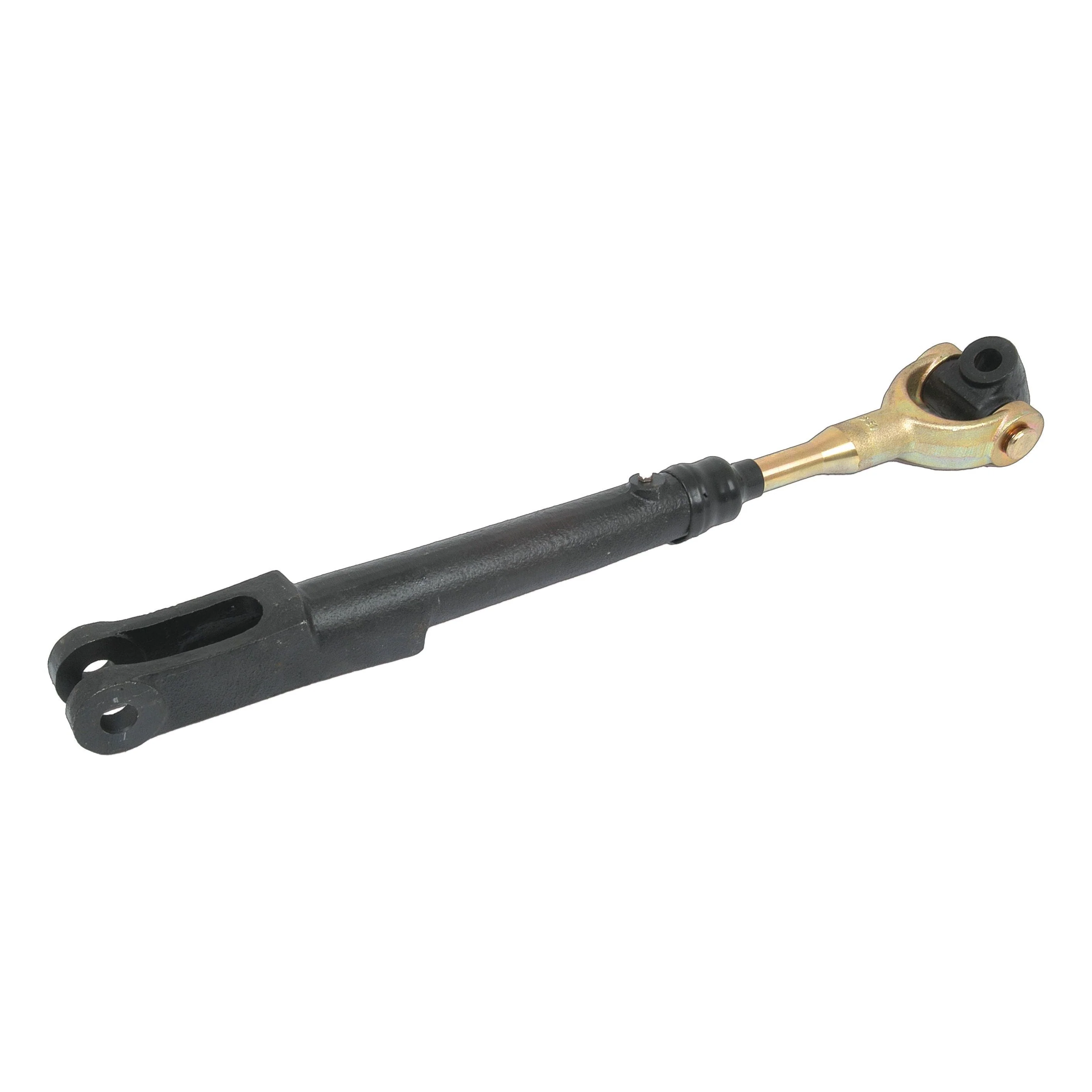

Levelling Box Assembly - Knuckle Ø 16.5mm- Fork Hole Ø 16mm - Min. Length:530mm - 3/4 UNC | Sparex Part No.S.17955

This high-quality levelling box assembly is designed for use with a variety of Massey Ferguson tractors. It features a knuckle diameter of 16.5mm and a fork hole diameter of 16mm. The minimum length is 530mm and the maximum length is 630mm. The internal width is 20mm and the external width is 45mm.

Product Specifications

• Brand: Spenco
• End Fittings A: Knuckle Ø 16.5mm
• End Fittings B: Fork Hole Ø 16mm
• Fork Hole Ø (ins): 5/8
• Fork Hole Ø (mm): 16
• Knuckle Bore Ø (ins): 5/8
• Knuckle Bore Ø (mm): 16.5
• Knuckle Width (ins): 1 7/8
• Knuckle Width (mm): 48
• Maximum Length (ins): 24 51/64
• Maximum Length (mm): 630
• Minimum Length (ins): 20 55/64
• Minimum Length (mm): 530
• Related products: 11316, 1640, 1795, 2985
• Tariff Code: 7303009090
• Thread size: 3/4
• Thread type: UNC
• Width External (mm): 45
• Width External ins: 1 49/64
• Width Internal (mm): 20
• Width Internal ins: 25/32
• Yoke: S.11316

Suitable For

Massey Ferguson 133, 135, 135 GAS / 135 PETROL, 140, 145, 152, 165, 20C, 20D, 20F, 240, 250, 260, 30B, 30D, 30E, 340, 40B, 550, 560

Manufacture Information

This product is not associated with any particular OEM part number.

Product Supplier: Sparex

Product Type: Levelling Box

Product SKU: SP-17955

Product OEM Fitment Information: This product is not associated with any particular OEM part number

Product Machine Fitment Information: Massey Ferguson 133, 135, 135 GAS / 135 PETROL, 140, 145, 152, 165, 20C, 20D, 20F, 240, 250, 260, 30B, 30D, 30E, 340, 40B, 550, 560

Additional Product Information: Min. Length 530mm - Max. Length 630mm - Width Int. 20 mm - Width Ext. 45 mm
