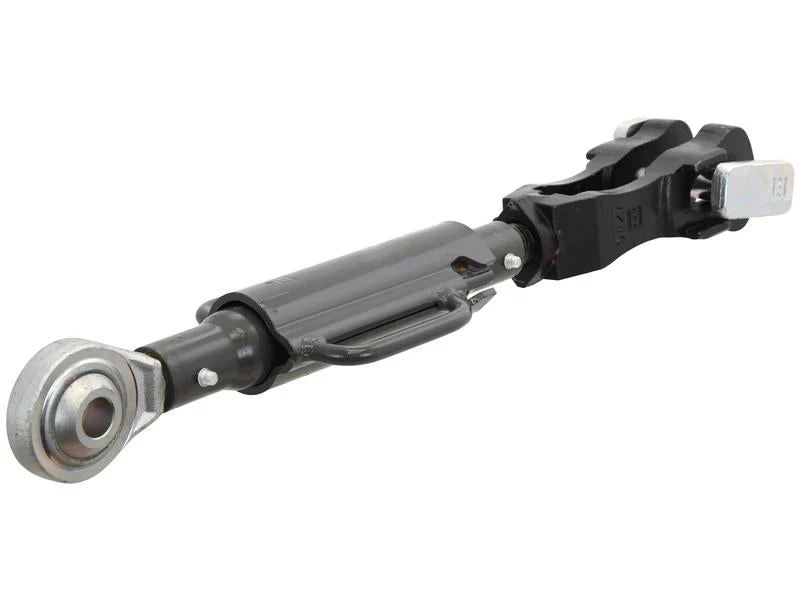

Levelling Box Assembly - Ball Ø 22mm - Fork Hole Ø 27x61mm

Introducing the Levelling Box Assembly from CBM, designed for optimal performance and compatibility with various machinery. This high-quality assembly features a durable ball size of 7/8 inches (22mm) and a robust fork hole measuring 1 1/8 x 2 23/64 inches (27 x 61mm).

Key Specifications:

• Ball Size: 7/8 inches (22mm)
• Ball Width: 42mm
• End Fittings A: Ball Ø 22mm
• End Fittings B: Fork Hole Ø 27x61mm
• Fork Hole Ø: 1 1/8 x 2 23/64 inches (28 x 60mm)
• Maximum Length: 32 43/64 inches (830mm)
• Minimum Length: 23 15/64 inches (590mm)
• Thread Size: M30x3 (Metric)
• Width External: 3 5/64 inches (78mm)
• Width Internal: 1 1/16 inches (27mm)

Compatibility:

This levelling box assembly is compatible with:

• Massey Ferguson: 5425, 5435, 5445, 5455, 5460, 5465 (OEM Fitment: 3798046M91, 3798046M92)
• Challenger: MT425B, MT445B, MT455B, MT465B, MT475B

Additional Information:

With a minimum length of 590mm and a maximum length of 830mm, this assembly is designed for versatility and ease of use. The external width of 78mm and internal width of 27mm ensure a perfect fit for your machinery needs.

Related Products: 150005

Tariff Code: 7319400000

Upgrade your equipment with the reliable Levelling Box Assembly from Sparex today!
