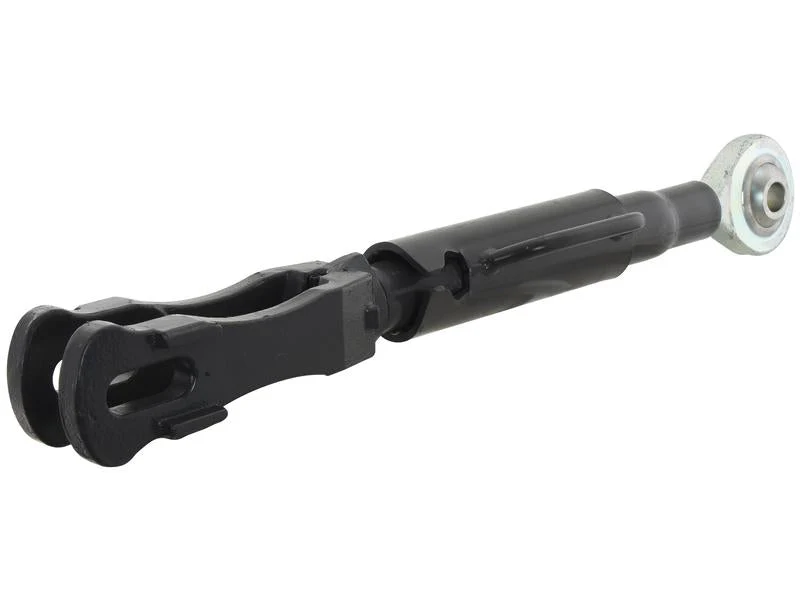

Levelling Box Assembly - Ball-Angled Ø 22mm - Fork Hole Ø 23x50mm

Introducing the Levelling Box Assembly from CBM, designed for optimal performance and compatibility with various machinery. This assembly features a ball size of 7/8 inches (22mm) and a robust ball width of 42mm, ensuring durability and reliability in demanding applications.

Key Specifications:

• Alternative to: 163765
• End Fittings A: Ball-Angled Ø 22mm
• End Fittings B: Fork Hole Ø 23x50mm
• Fork Hole Diameter: 29/32x1 31/32 inches (23x50mm)
• Maximum Length: 32 33/64 inches (826mm)
• Minimum Length: 23 37/64 inches (599mm)
• Thread Size: M33x3 (Metric)
• External Width: 2 9/16 inches (65mm)
• Internal Width: 1 19/64 inches (33mm)
• Tariff Code: 7303009090

Compatibility:

This Levelling Box Assembly is compatible with a range of Massey Ferguson and Challenger models, including:

• Challenger: MT445B, MT455B, MT465B, MT475B, MT515D, MT515E, MT525B, MT525D, MT535B, MT535D, MT545B, MT545D
• Massey Ferguson: 5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475, 5480, 6460, 6465, 6470, 6475, 6480, 6612 DYNA 4, 6613 DYNA 4, 6613 DYNA 6, 6614 DYNA 6, 6615 DYNA 4, 6615 DYNA 6, 6616 DYNA 6, 6712 S DYNA 4, 6713 S DYNA 4, 6713 S DYNA 6, 6714 S DYNA 4, 6714 S DYNA 6, 6715 S DYNA 4, 6715 S DYNA 6, 6716 S DYNA 6, 6718 S DYNA 6, 7614 DYNA 4, 7615 DYNA 4, 7615 DYNA 6, 7616 DYNA 6, 7618 DYNA 6, 7714 DYNA 4, 7714 S DYNA 4, 7715 DYNA 4, 7715 DYNA 6, 7715 S DYNA 4, 7715 S DYNA 6, 7716 DYNA 6, 7716 S DYNA 6, 7718 DYNA 6, 7718 S DYNA 6

Related Products:

Explore our related products for additional options:

• 149993
• 149994
• 150005

Upgrade your machinery with the Levelling Box Assembly - a reliable choice for enhanced performance and compatibility.
