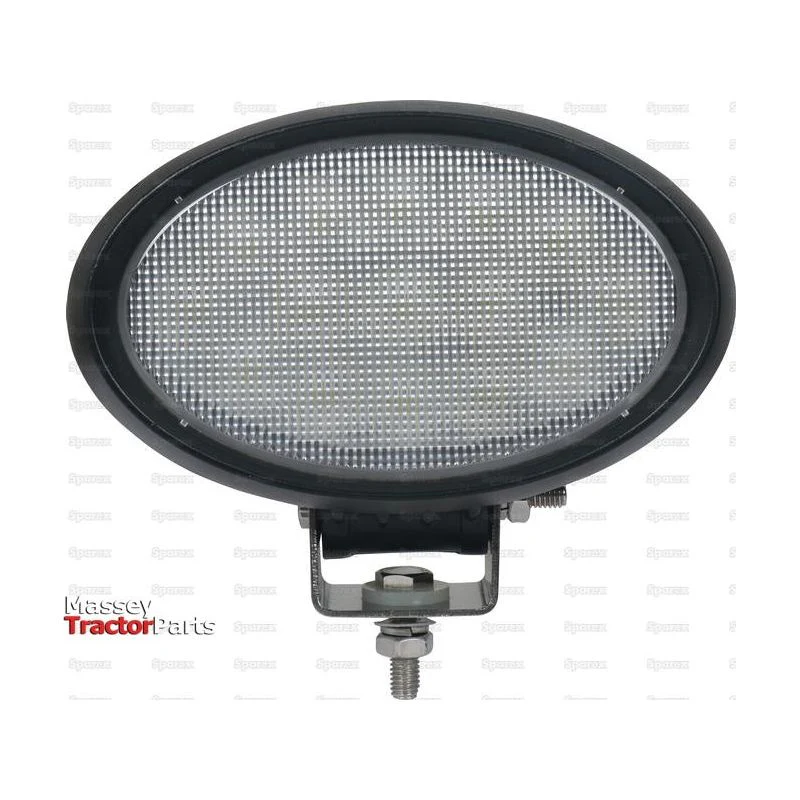

LED Work Light - Interference: Class 5, 4500 Lumens Raw, 10-30V | Sparex Part No. S.151852

Product Specifications

• Alternative to: 22391
• Beam Angle: 140°
• Beam Type: Flood Beam
• Brand: Sparex
• Cable Length: 400 mm
• CE Approved: Yes
• Connection Type: DJ7028C-1.5-11 Connector
• ECE Rating: Reg 10
• Effective Lumens: 2400
• Fixing: Bracket
• Housing Material: Aluminium
• Interference EMC EMI CISPR 25: Class 5
• IP Rating: IP6K9K
• Lens Colour: Clear
• Lens Material: Plastic Safety Glass
• Light Source: LED
• Lumens Raw: 4500
• Lux Value: 8275
• Number of LEDs: 15 LEDs
• Overall Height: 113 mm
• Overall Length: 161.2 mm
• Overall Width: 76.8 mm
• Power Consumption @ 12V: 3.3 Amps
• Power Consumption @ 24V: 1.67 Amps
• Related Products: 151851, 151855, 163751, 163752, 163905, 163906
• RoHS Approved: Yes
• SAE Approved: No
• Shape: Oval
• Tariff Code: 8539213000
• Volts: 10-30V
• Watts: 45W
• With Noise Suppression: Yes
• Working Temperature: -40°C to 50°C

Suitable For Information

This LED Work Light is compatible with a range of Massey Ferguson models including:

• 4707, 4708, 4709, 5609, 5610, 5710, 5711
• 6612 DYNA 4, 6613 DYNA 4, 6613 DYNA 6, 6614 DYNA 6, 6614 DYNA VT
• 6615 DYNA 4, 6615 DYNA 6, 6615 DYNA VT, 6616 DYNA 6, 6616 DYNA VT
• 6711, 6712, 6713 S DYNA 4, 7614 DYNA 4, 7615 DYNA 4
• 7615 DYNA 6, 7615 DYNA VT/DYNA STEP, 7616 DYNA 6
• 7616 DYNA VT/DYNA STEP, 7618 DYNA 6, 7618 DYNA VT/DYNA STEP
• 7619 DYNA 6, 7619 DYNA VT, 7620 DYNA 6, 7620 DYNA VT
• 7622 DYNA 6, 7622 DYNA VT, 7624 DYNA 6, 7624 DYNA VT
• 7626 DYNA 6, 7714 DYNA 4, 7715 DYNA 4, 7715 DYNA 6
• 7715 DYNA VT, 7716 DYNA 6, 7716 DYNA VT, 7718 DYNA 6
• 7718 DYNA VT, 7719 DYNA 6, 7719 DYNA VT, 7720 DYNA VT
• 7722 DYNA VT, 7724 DYNA VT, 7726 DYNA VT, 8650, 8660
• 8670, 8680, 8690, 8727, 8730, 8732, 8735, 8737, 8740

Manufacture Information

This product is not associated with any particular OEM part number.
