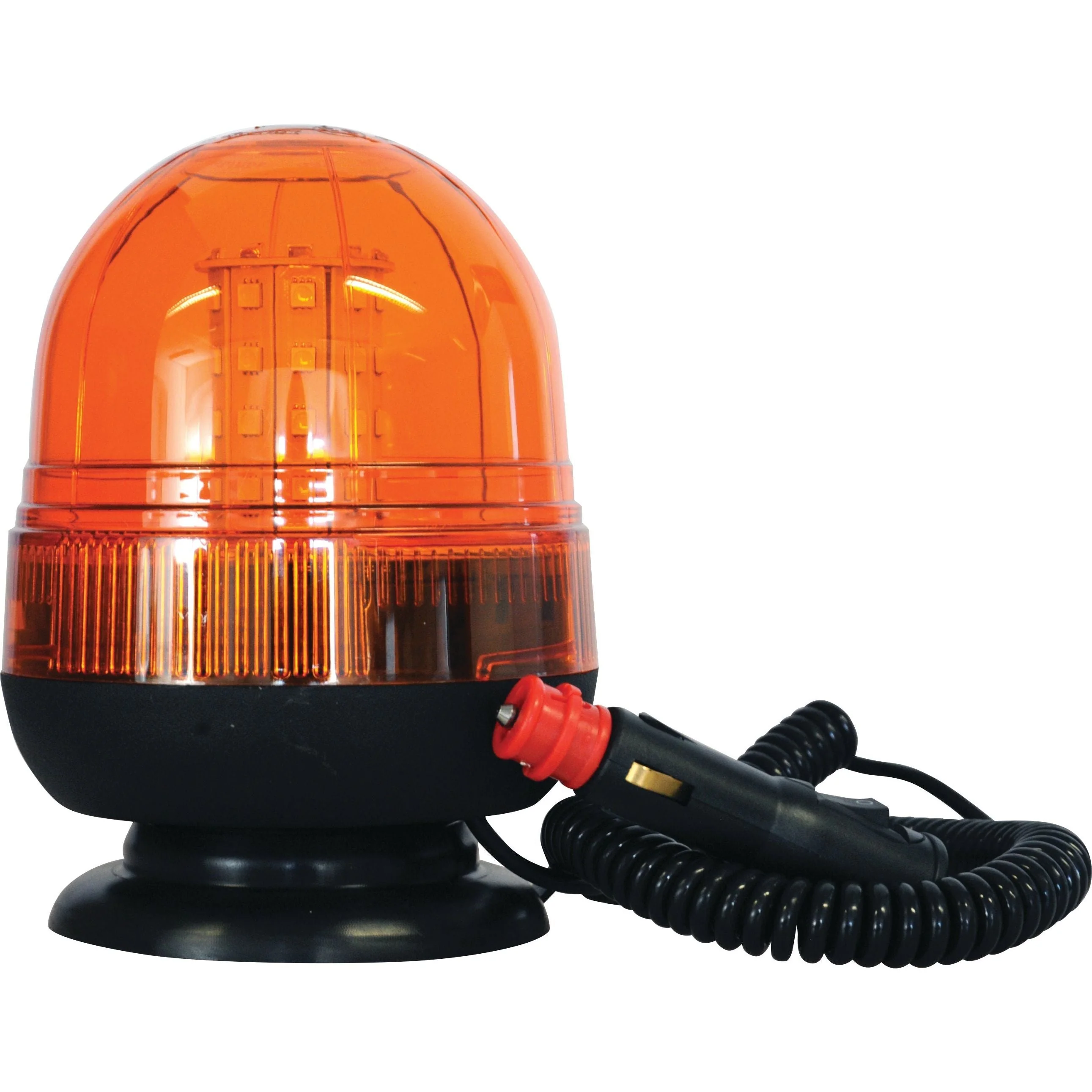

LED Beacon (Amber) - Interference Class 3, Magnetic, 12-24V - S.113215

Illuminate your surroundings with the high-performance LED Beacon from Sparex. This versatile beacon features a robust design with an ECE Rating of Reg 10 and is CE Approved, ensuring compliance with safety standards. With an IP55 rating, it is built to withstand harsh environments, making it ideal for various applications.

Key Features

• Functionality: Offers 3 distinct functions: rotating, double flashes, and six flashes for maximum visibility.
• Effective Lumens: 600 lumens for bright and effective signaling.
• Light Source: 40 high-efficiency LEDs with a raw output of 1200 lumens.
• Magnetic Fixing: Easy to install and reposition as needed.
• Working Temperature: Operates efficiently in temperatures ranging from -30°C to 50°C.

Product Specifications

• Brand: Sparex
• Cable Length: 3800 mm
• Connection Type: 12V Port
• Housing Material: Various Plastic Compounds
• Lens Colour: Amber
• Lens Material: Plastic Safety Glass
• Overall Dimensions: Height: 170 mm, Length: 128 mm, Width: 128 mm
• Power Consumption: 1.25 Amps at both 12V and 24V
• Shape: Round
• Speed: Rotating: 120±4 rpm, Double Flash: 346±4 rpm, Six Flash: 428±4 rpm
• Volts: 12-24V
• Watts: 15-30W
• Noise Suppression: Yes
• RoHS Approved: Yes
• ISO Rating: ISO 9001
• Interference EMC EMI CISPR 25: Class 3
• Tariff Code: 8512200090

Compatibility Information

This product is not associated with any particular make or model.

Manufacturer Information

This product is not associated with any particular OEM part number.
