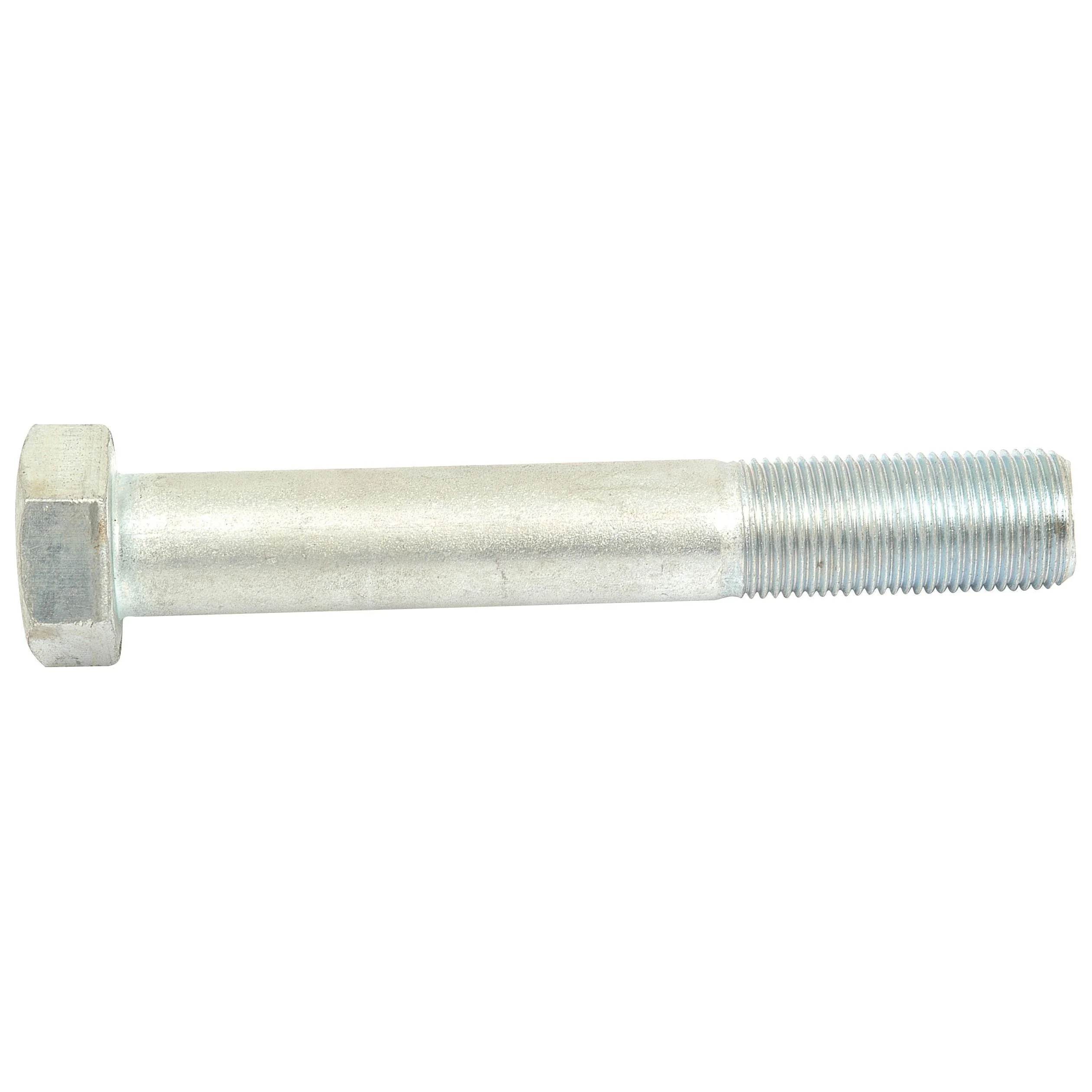

Imperial Bolt, 7/16''x1 3/4'' UNF (ASME B18.2.1) Tensile strength: 8.8. | Sparex Part No.S.14780

This high-quality Imperial Bolt is a reliable and durable fastening solution for various applications. It features a 7/16" diameter, 1 3/4" length, and UNF (Unified National Fine) thread type, conforming to ASME B18.2.1 standards. With a tensile strength of 8.8, this bolt is designed for robust and secure connections.

Product Specifications

• Diameter (A Ø): 7/16"
• Thread Length (B): 1 1/8"
• Bolt Type: Standard Bolts
• Brand: Sparex
• Color: BZP (Bright Zinc Plated)
• DIN: Standard No.
• Hazardous: No
• Finish: Zinc Plated
• Grade: SAE Grade 5
• Length: 1 3/4"
• Metric or Imperial: Imperial
• Pitch: 20
• Related Products: 1006, 1067, 1072, 4959, 4977, 5724, 5731
• Size: 7/16"
• Tariff Code: 7318153590
• Tensile Strength: 8.8
• Thread Length: 1 1/8"
• Thread Type: UNF
• Total Length: 1 3/4"

Suitable For

This product is not associated with any particular make or model.

Manufacturer Information

This Sparex bolt is compatible with various agricultural machinery, including:

• Landini: 12184451, 353565X1
• Massey Ferguson: 353565X1
