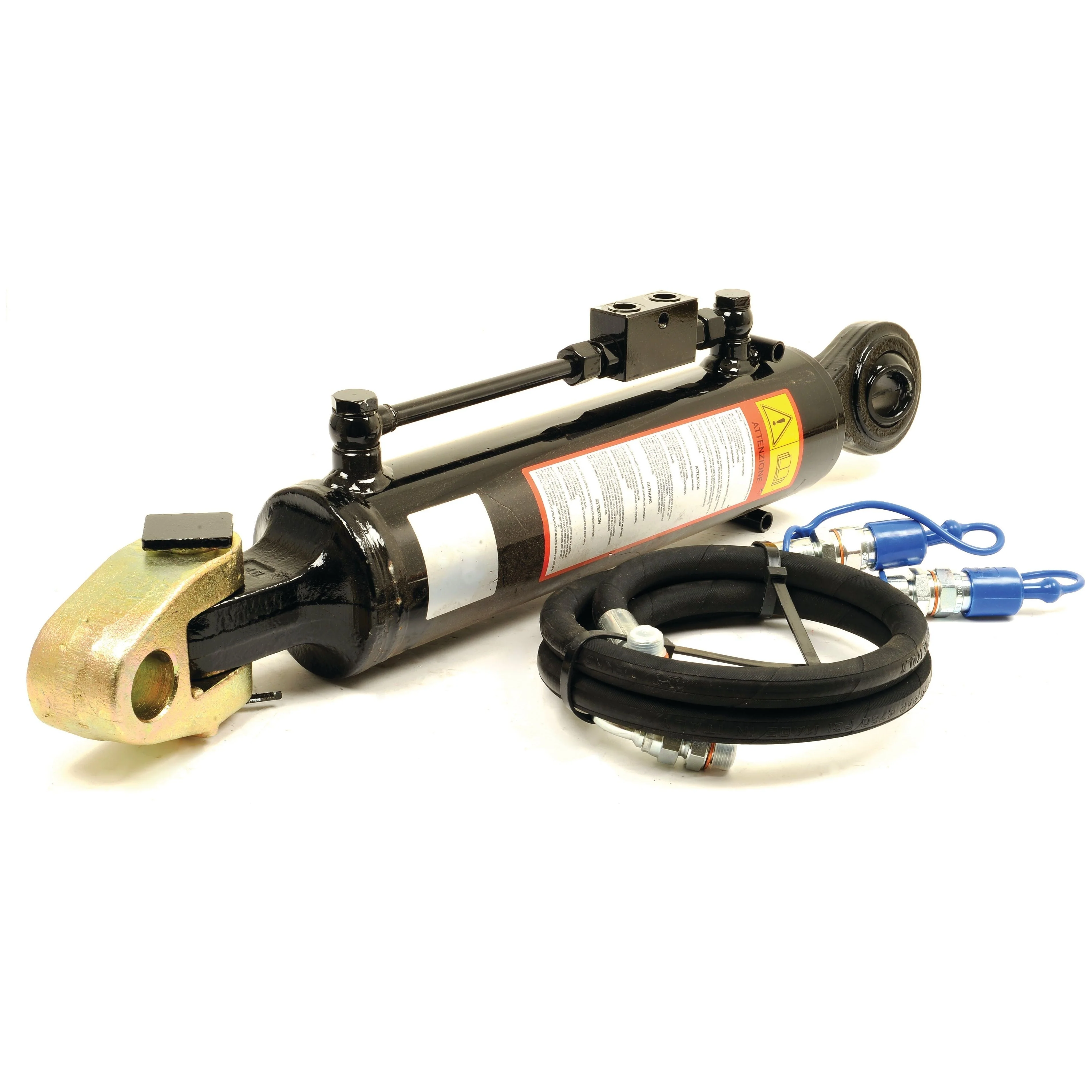

Introducing the Hydraulic Top Link (Cat. 40mm/3) by Sparex, designed for optimal performance and durability. This top link features a minimum length of 760mm and a maximum length of 995mm, making it versatile for various applications. Each unit is supplied with a Hose Set for easy installation.

Product Specifications

• A (mm): 200
• Alternative to: 119710
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 40mm
• Category: 40mm/3
• Check Valve Position: Top
• Cylinder Bore (mm): 120
• Implement End: Ball
• Lift Capacity (kgs @ 180 bar): 18600
• Maximum Length (mm): 995
• Minimum Length (mm): 760
• Related Products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 119707, 119709, 164592
• Rod Diameter (mm): 50
• Suitable for Tractors up to: 400hp (294kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 24600
• Tractor End: Knuckle

Suitable For Information

This hydraulic top link is compatible with a range of Fendt models, including:

• 1038 VARIO
• 1042 VARIO
• 1046 VARIO
• 1050 VARIO
• 819 VARIO SCR (832)
• 822 VARIO
• 822 VARIO S4 (839)
• 822 VARIO S4 NON SCR (839)
• 822 VARIO SCR (833)
• 822 VARIO TURBO
• 824 VARIO
• 824 VARIO S4 (840)
• 824 VARIO S4 NON SCR (840)
• 824 VARIO SCR (834)
• 824 VARIO TURBO
• 826 VARIO
• 826 VARIO S4 (841)
• 826 VARIO S4 NON SCR (841)
• 826 VARIO SCR (835)
• 828 VARIO
• 828 VARIO S4 (842)
• 828 VARIO S4 NON SCR (842)
• 828 VARIO SCR (836)
• 924 VARIO
• 924 VARIO SCR (941)
• 927 VARIO
• 930 VARIO
• 933 VARIO
• 936 VARIO
• 938 MT
• 939 VARIO
• 940 MT
• 942 VARIO
• 943 MT

Manufacture Information

This product is not associated with any particular OEM part number, ensuring a reliable alternative for your agricultural machinery needs.
