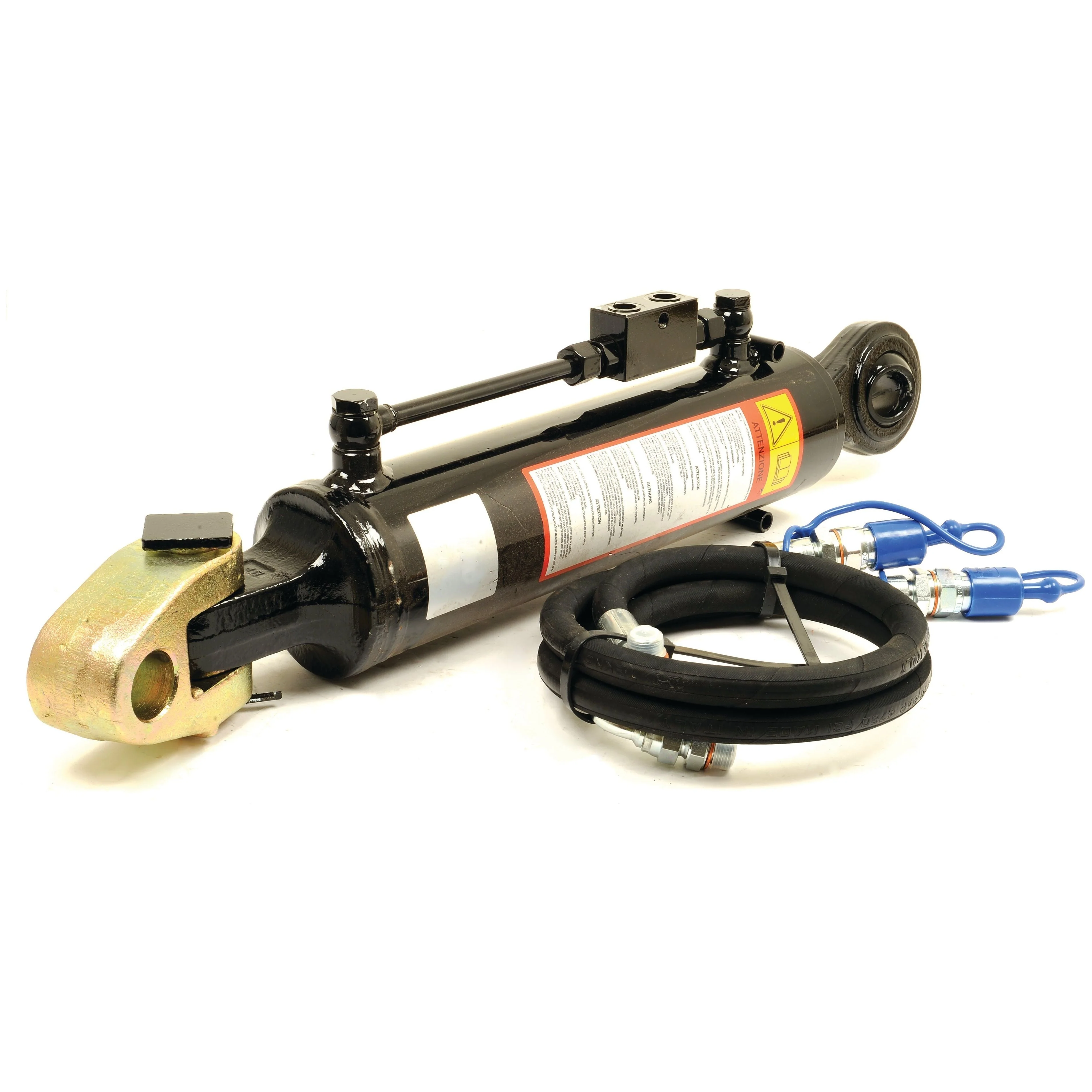

Hydraulic Top Link (Cat.4/3) Knuckle and Ball, Cylinder Bore: 120mm

Introducing the Hydraulic Top Link by Sparex, designed for optimal performance and durability. This top link features a minimum length of 760mm and a maximum length of 995mm, making it versatile for various applications. It comes complete with a hose set for easy installation and use.

Product Specifications

• A (mm): 200
• Alternative to: 119710
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 4
• Category: 4/3
• Check Valve Position: Top
• Cylinder Bore (mm): 120
• Implement End: Ball
• Lift Capacity (kgs @ 180 bar): 18600
• Maximum Length (mm): 995
• Minimum Length (mm): 760
• Related Products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 119707, 119708, 119709, 164592
• Rod Diameter (mm): 50
• Suitable for Tractors up to: 400hp (294kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 24600
• Tractor End: Knuckle

Suitable For

This hydraulic top link is compatible with a range of tractor models:

Ford / New Holland: T9.390, T9.435, T9.450, T9.480, T9.505, T9.530, T9.560, T9.565, T9.600, T9.615, T9.645, T9.670, T9.700

John Deere: 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8310R, 8320R, 8335R, 8345R, 8360R, 8370R, 8400R

Manufacturer Information

This product is not associated with any particular OEM part number, ensuring a reliable alternative for your agricultural machinery needs.
