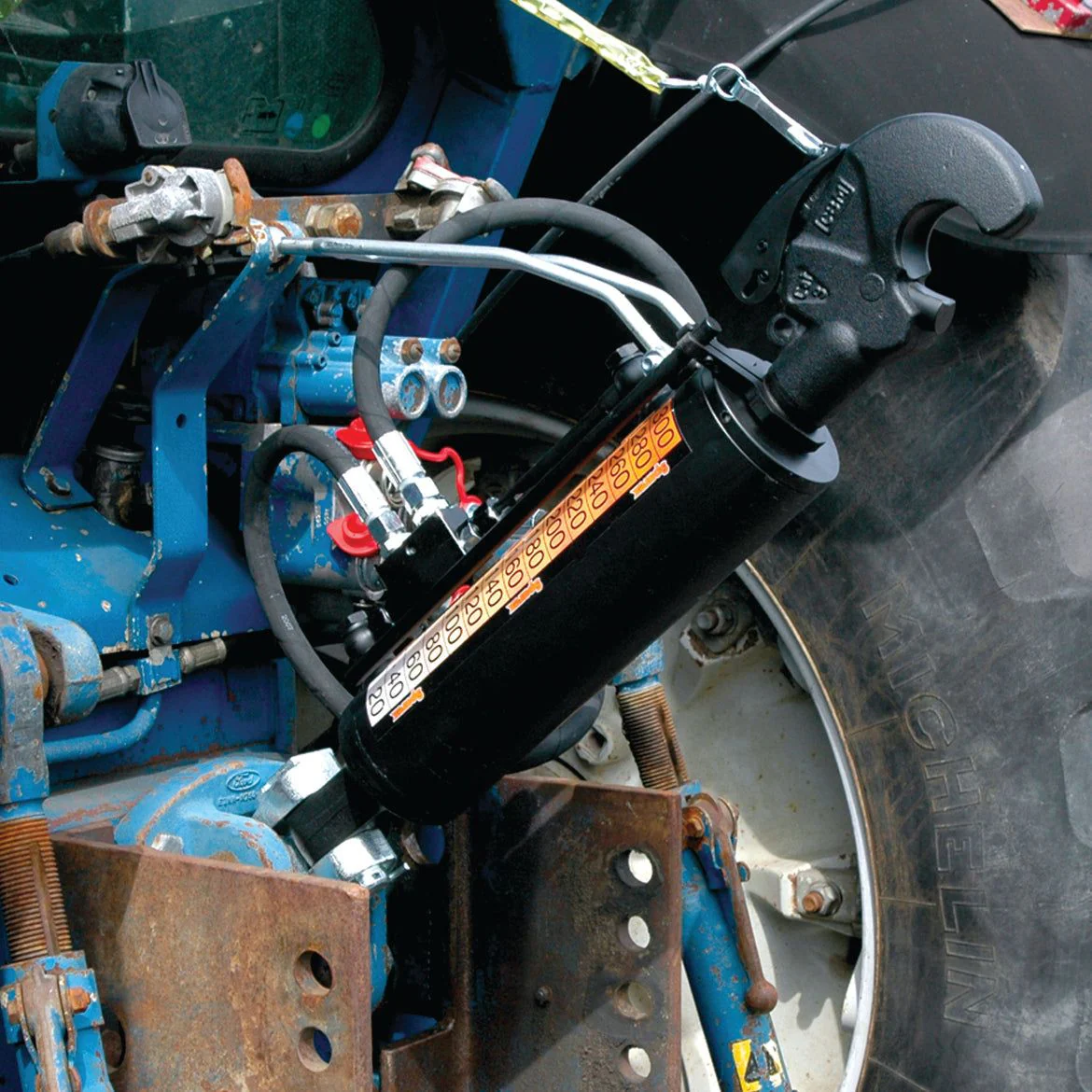

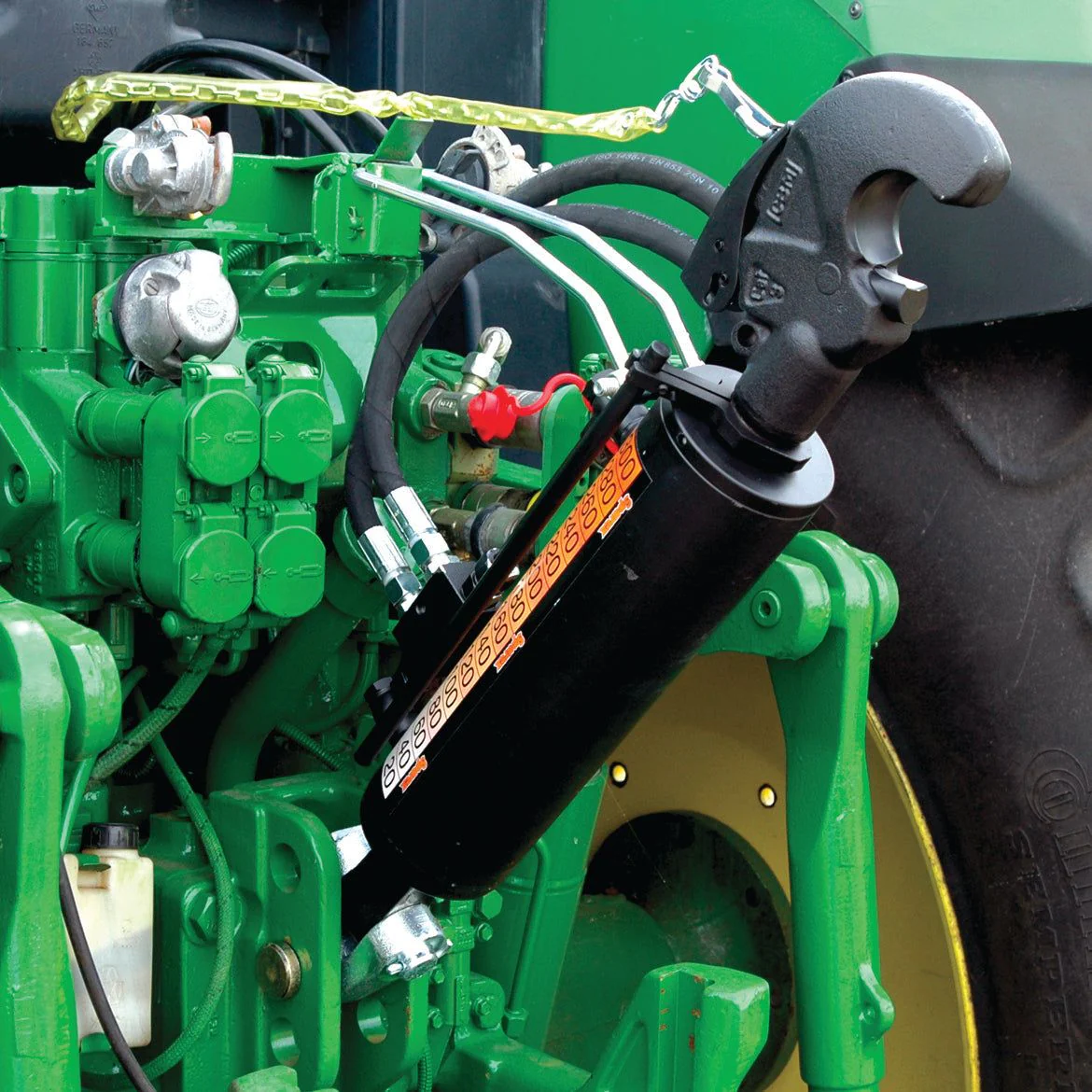

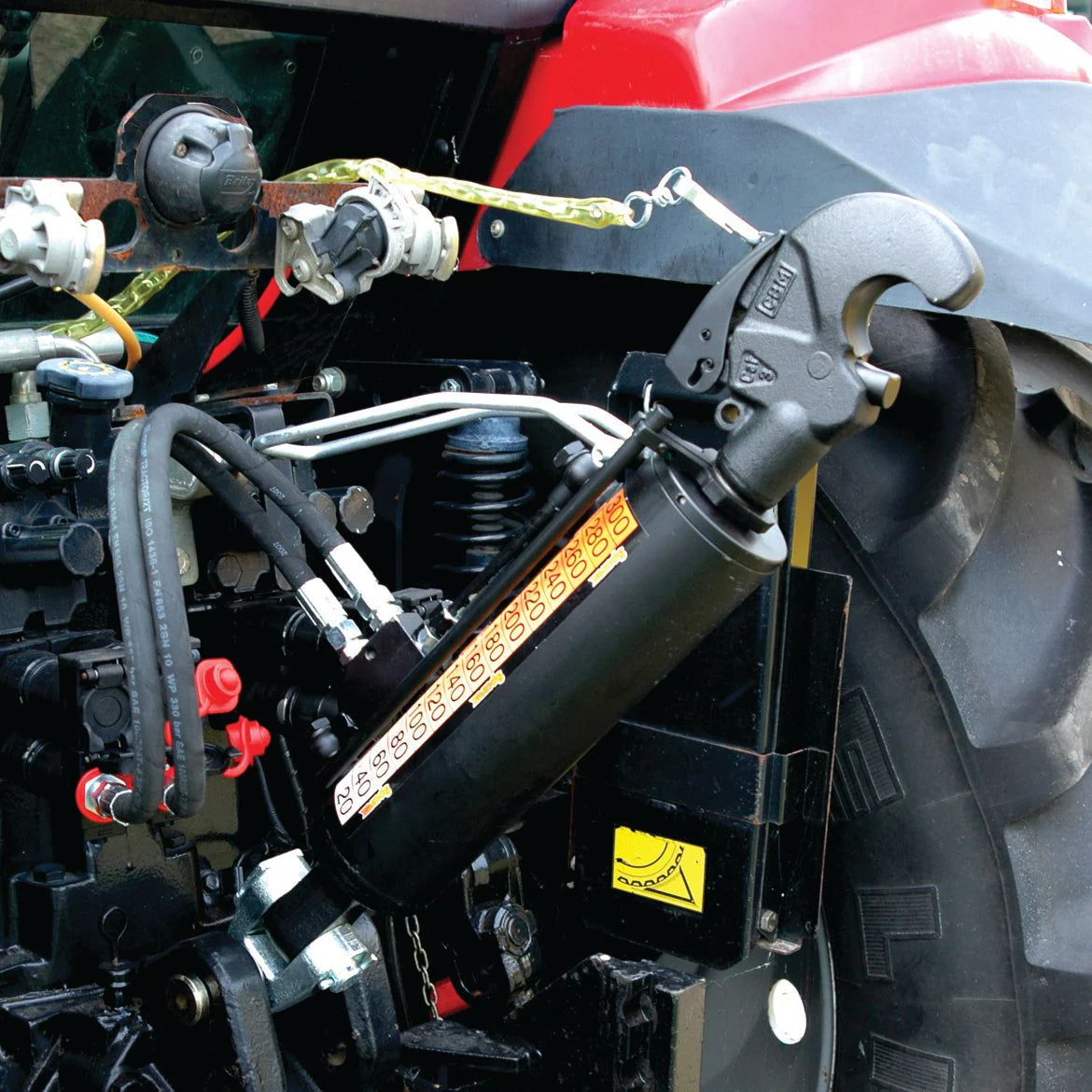

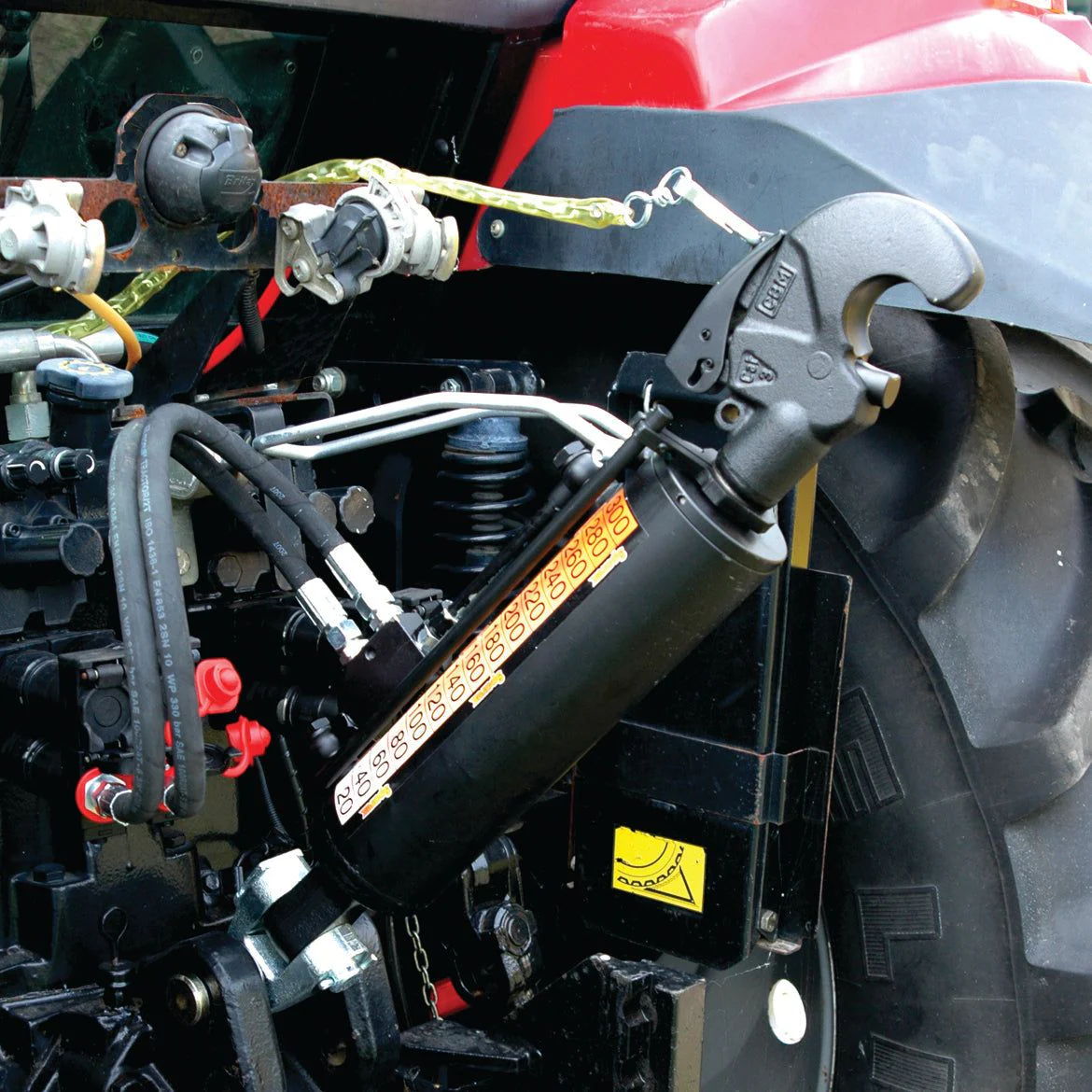

Hydraulic Top Link (Cat.36mm/3) - Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and versatility in your agricultural applications. With a minimum length of 650mm and a maximum length of 876mm, this hydraulic top link is perfect for tractors up to 200hp (147kW).

Key Features:

• Supplied with: Hose set, chain & ball, marker label with knuckle & pin
• Cylinder Bore: 90mm
• Lift Capacity: 8770 kg @ 180 bar
• Thrust Capacity: 11700 kg @ 180 bar
• Rod Diameter: 45mm
• Check Valve Position: Top

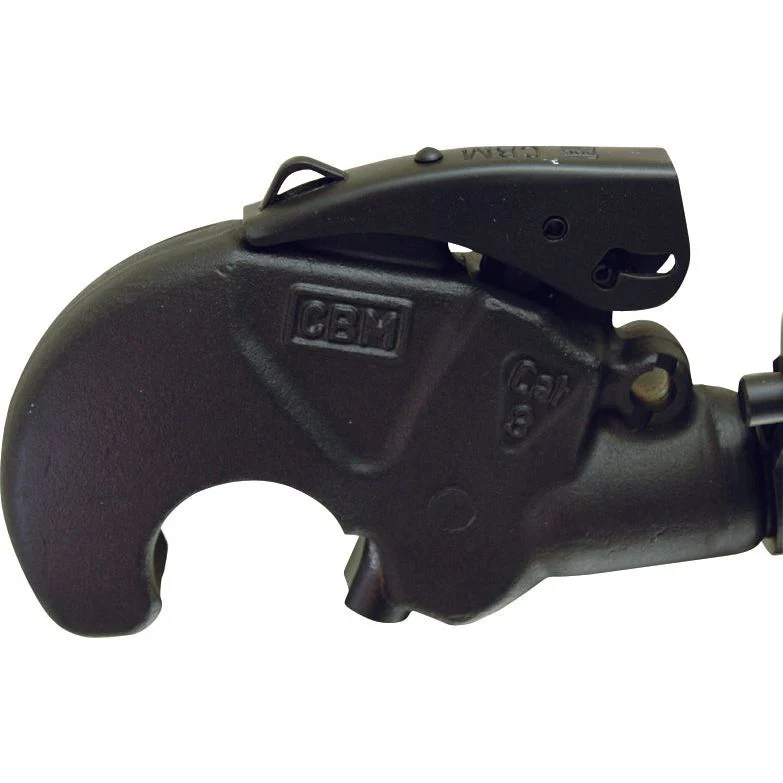

• Implement End: Q.R CBM Hook

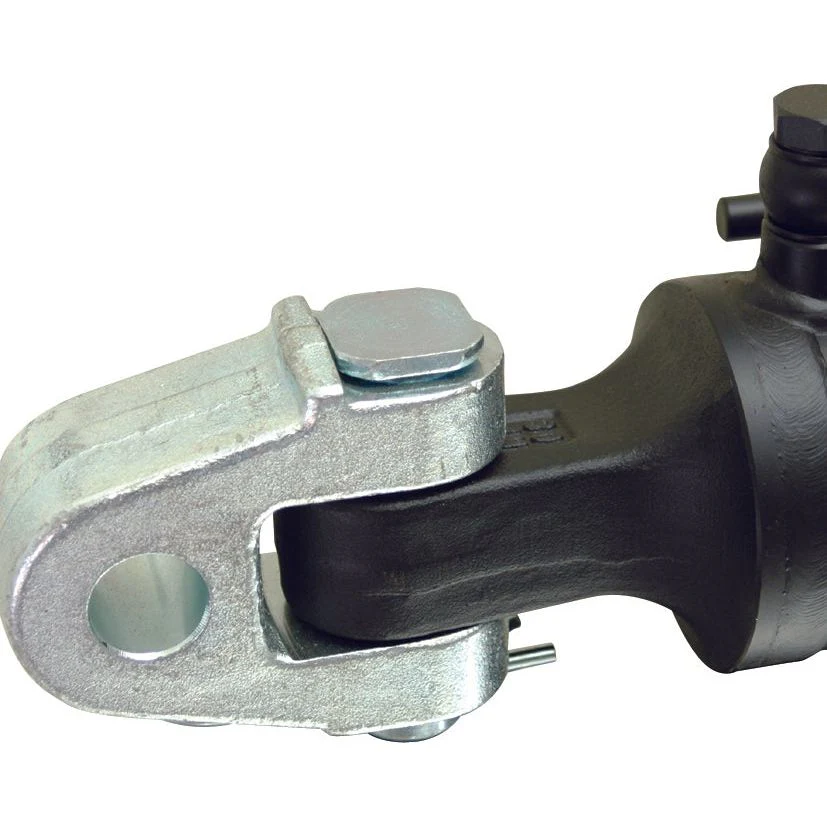

• Tractor End: Knuckle
• Tariff Code: 8412212090

Product Specifications:

• A (mm): 152
• Alternative to: 56801
• Category Implement End: 3
• Category Tractor End: 36mm
• Category: 36mm/3
• Maximum Length (mm): 876
• Minimum Length (mm): 650
• Related Products: 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 148196, 148197
• Tractor End Fixing: S.56817

Compatibility Information:

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information:

This product is not linked to any particular OEM part number, ensuring broad compatibility across various applications.
