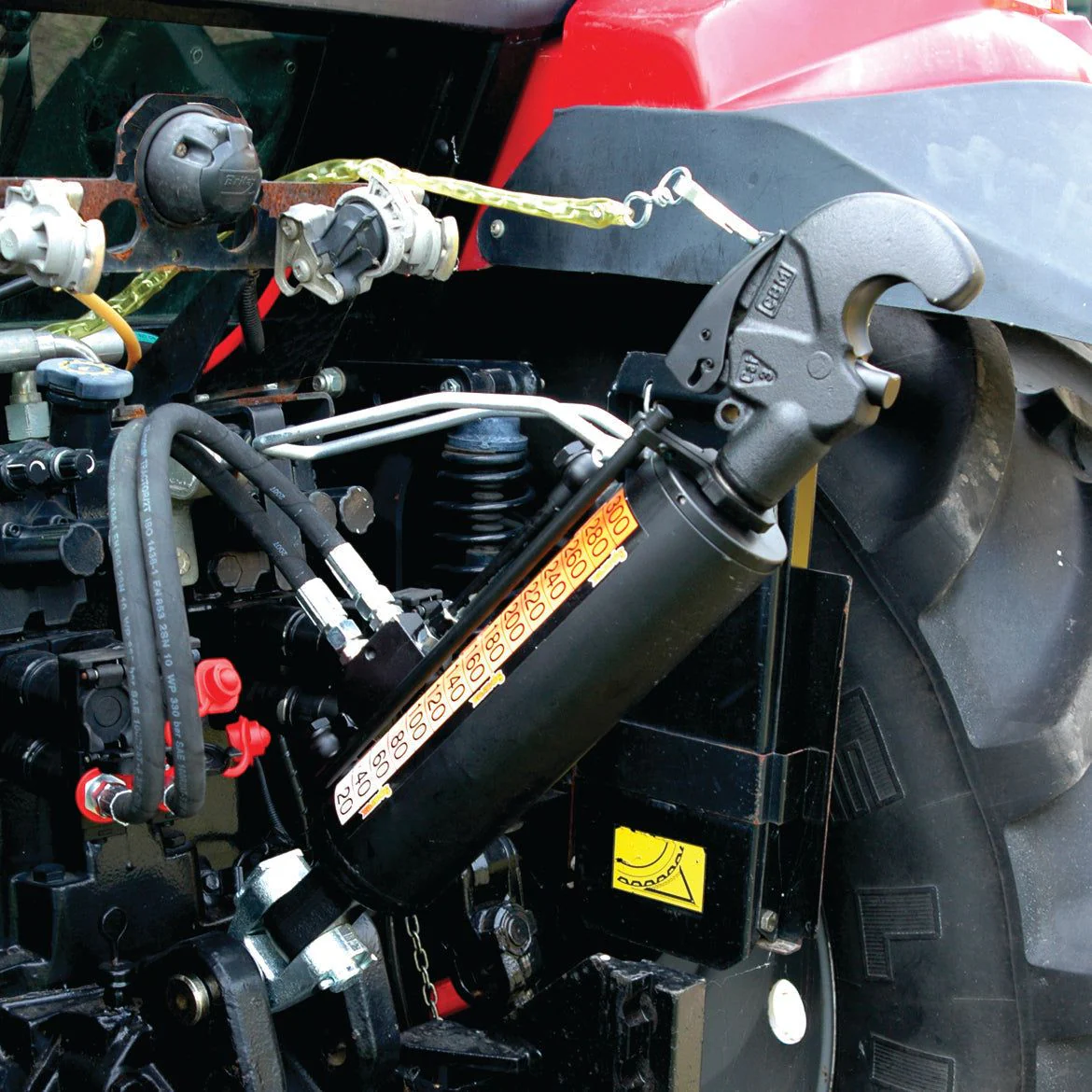

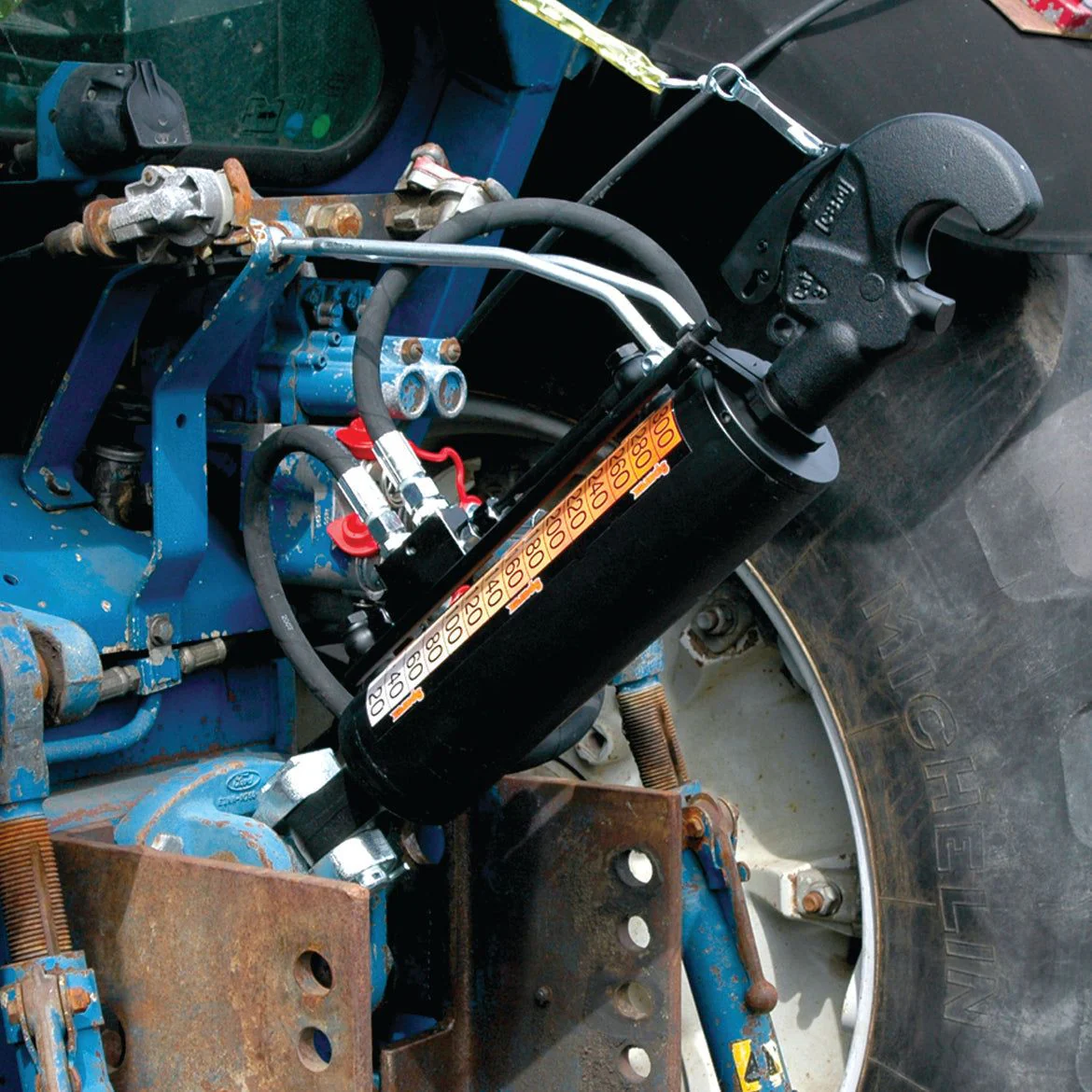

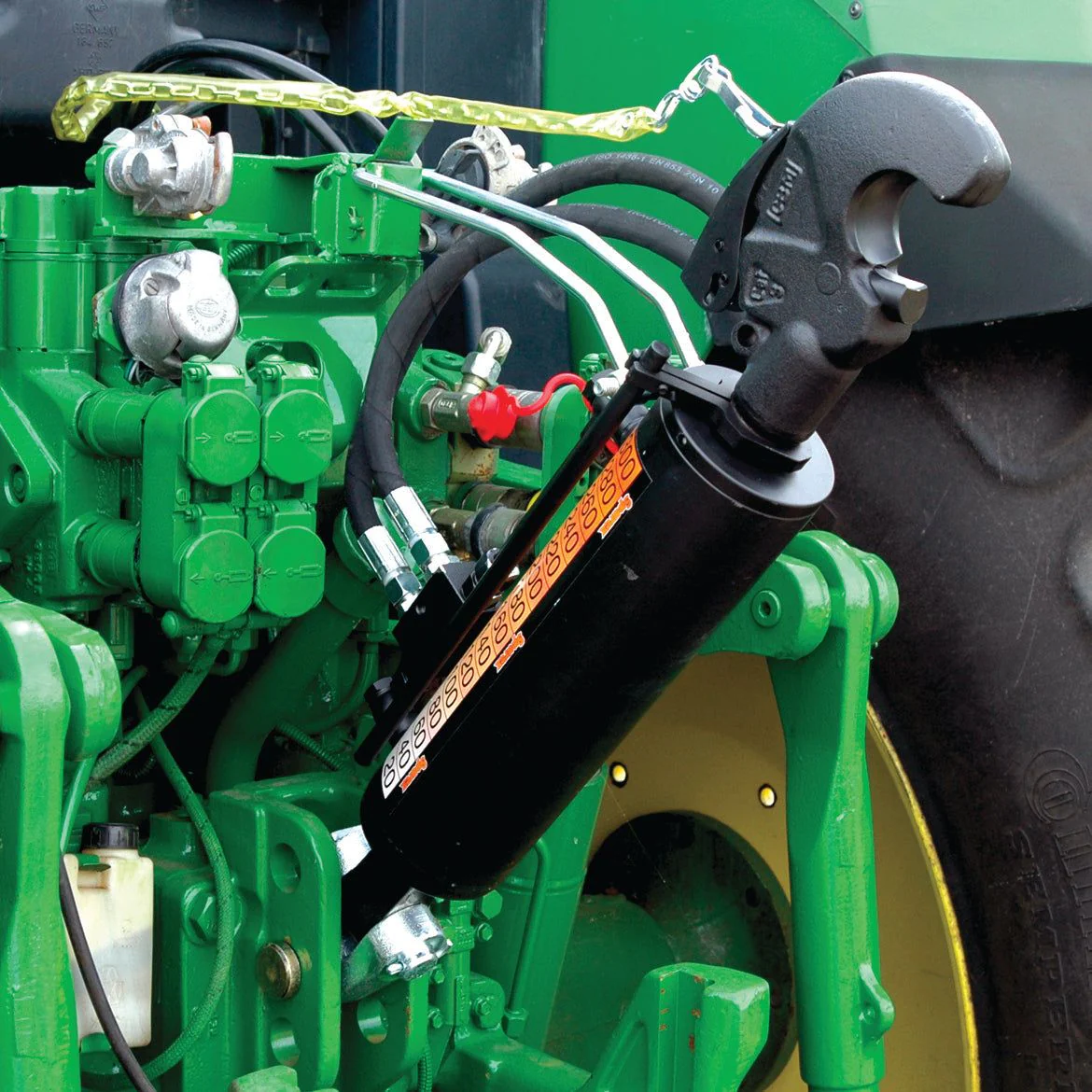

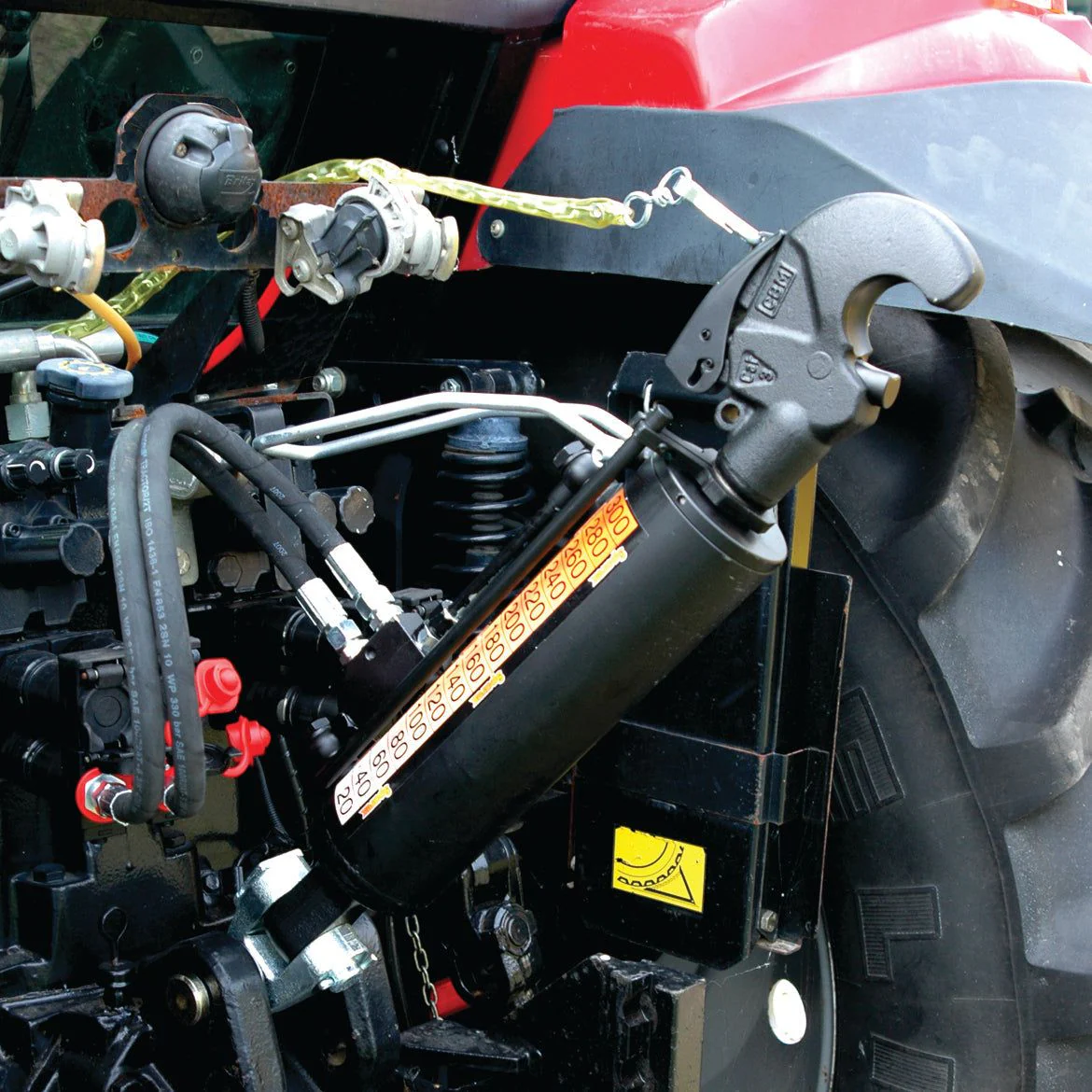

Hydraulic Top Link (Cat.36mm/3) - Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and versatility. With a minimum length of 565mm and a maximum length of 706mm, this hydraulic top link is perfect for a variety of agricultural applications. It comes complete with a hose set, chain & ball, and a marker label featuring a knuckle and pin for easy installation and use.

Product Specifications

• A (mm): 152
• Alternative to: 56800
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 36mm
• Category: 36mm/3
• Check Valve Position: Top
• Cylinder Bore (mm): 90

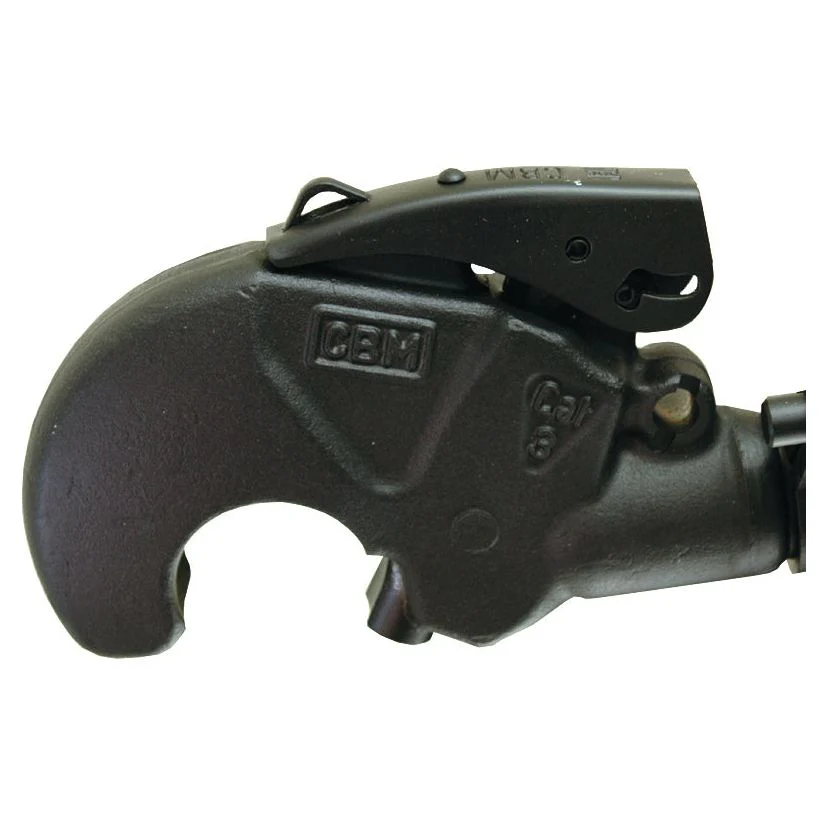

• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 8770
• Maximum Length (mm): 706
• Minimum Length (mm): 565
• Related Products: 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 148196, 148197
• Rod Diameter (mm): 45
• Suitable for Tractors up to: 200hp (147kW)
• Supplied with: Hose set, chain & ball, marker label with knuckle & pin
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 11700
• Tractor End Fixing: S.56817

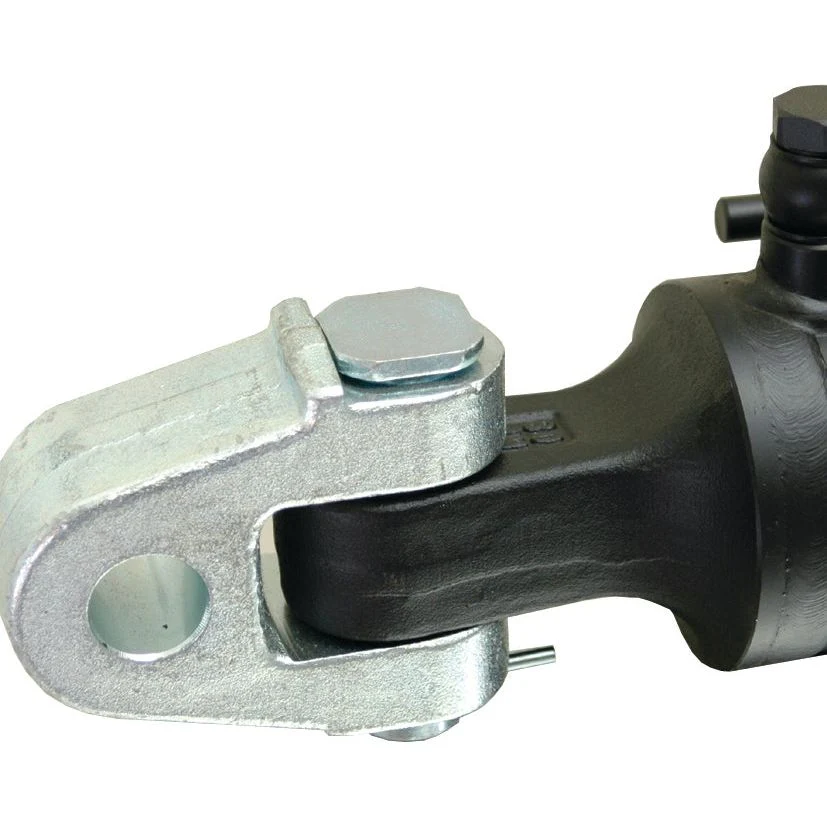

• Tractor End: Knuckle

Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring broad compatibility across various applications.
