Hydraulic Top Link (Cat.36mm/3) - Sparex Part No. S.399714

Enhance your tractor's performance with the Hydraulic Top Link, designed for versatility and strength. With a minimum length of 695mm and a maximum length of 965mm, this top link is perfect for various applications. It comes complete with a hose set, chain & ball, and a marker label featuring a knuckle & pin for easy installation and use.

Product Specifications

• A (mm): 152
• Alternative to: 32931
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 36mm
• Category: 36mm/3
• Check Valve Position: Top
• Cylinder Bore (mm): 80

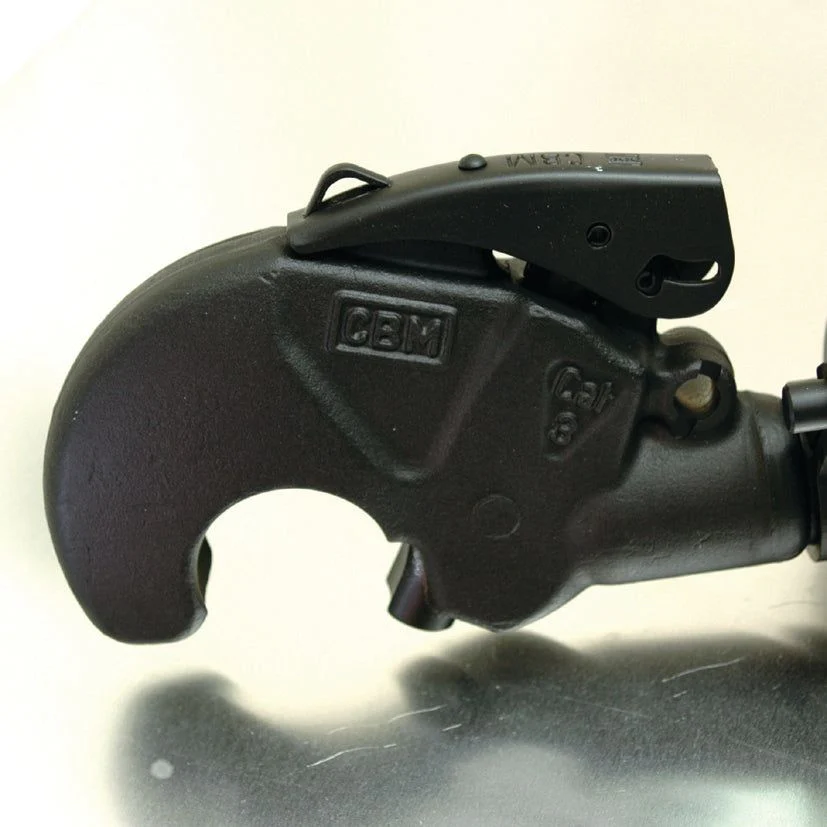

• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 6930
• Maximum Length (mm): 965
• Minimum Length (mm): 695
• Related Products: 10292, 32255, 33010, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968, 56817
• Rod Diameter (mm): 40
• Suitable for Tractors up to: 180hp (135kW)

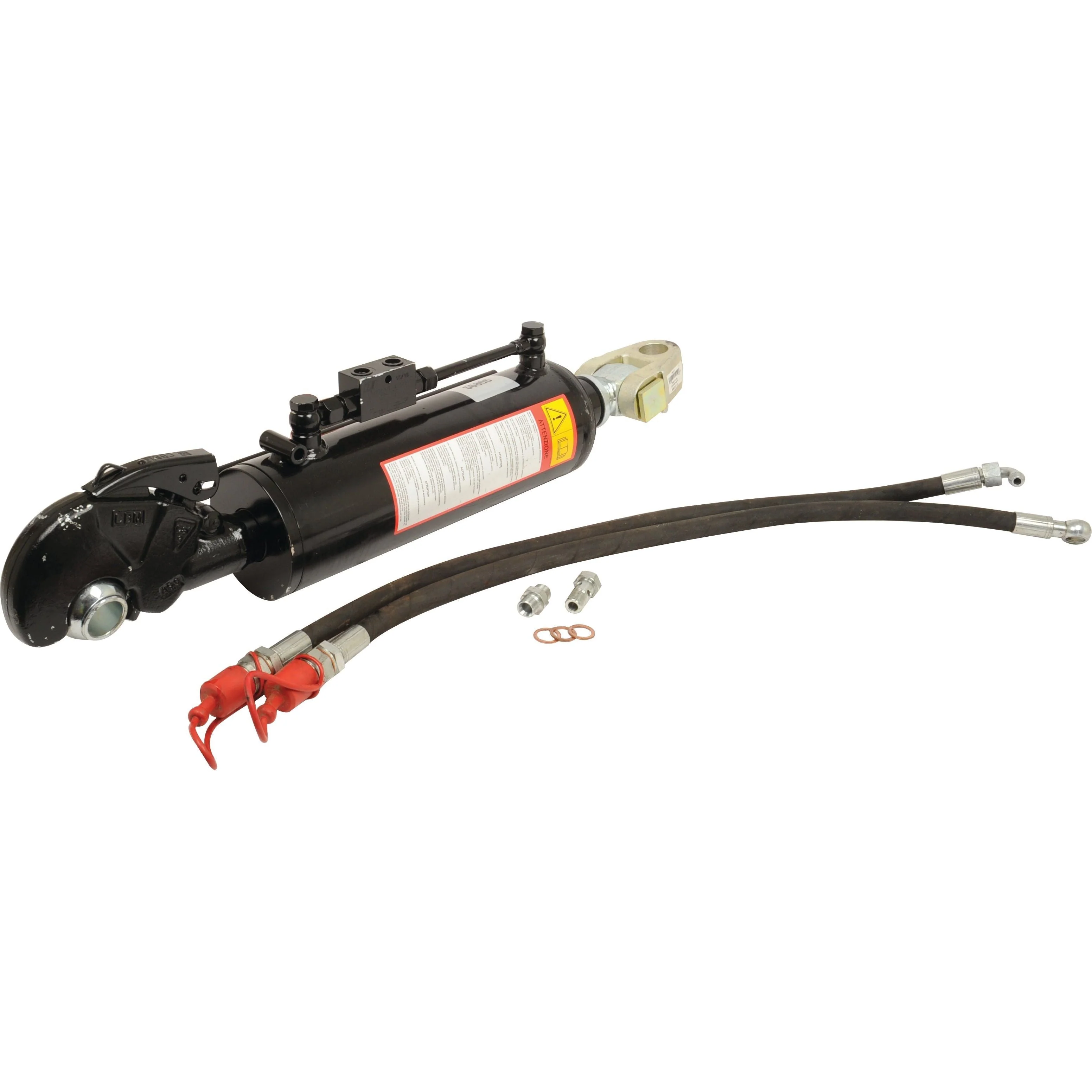

• Supplied with: Hose set, chain & ball, marker label with knuckle & pin
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 9240
• Tractor End Fixing: S.56817

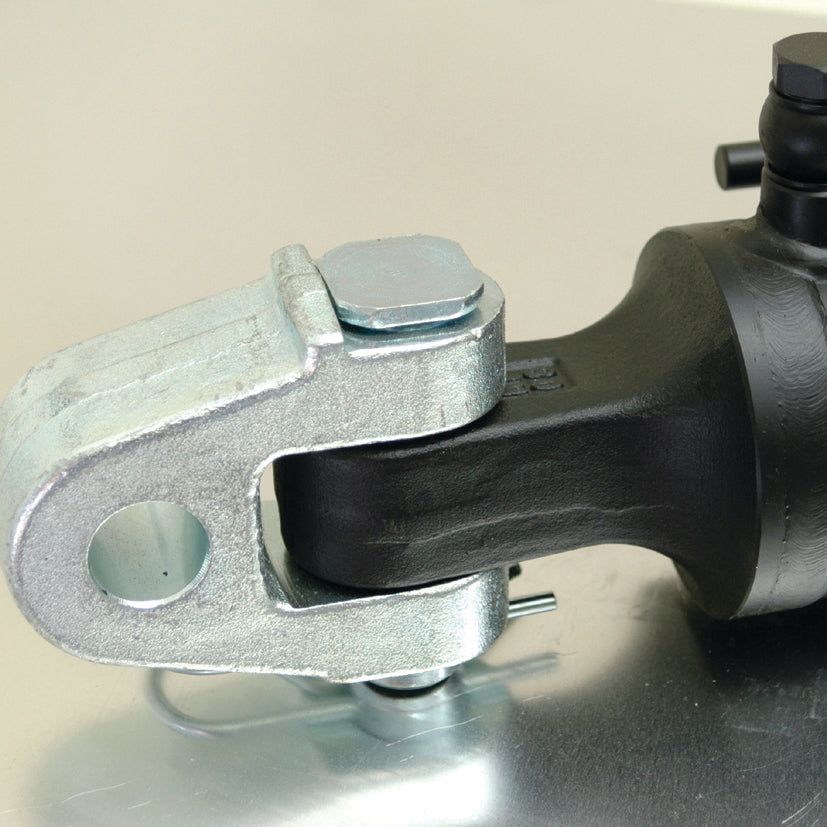

• Tractor End: Knuckle

Compatibility Information

This product is not associated with any particular make or model, making it a versatile choice for various applications.

Manufacturer Information

This product is not associated with any specific OEM part number, ensuring broad compatibility across different tractor models.
