Hydraulic Top Link (Cat.36mm/3) Knuckle and Ball, Cylinder Bore: 90mm

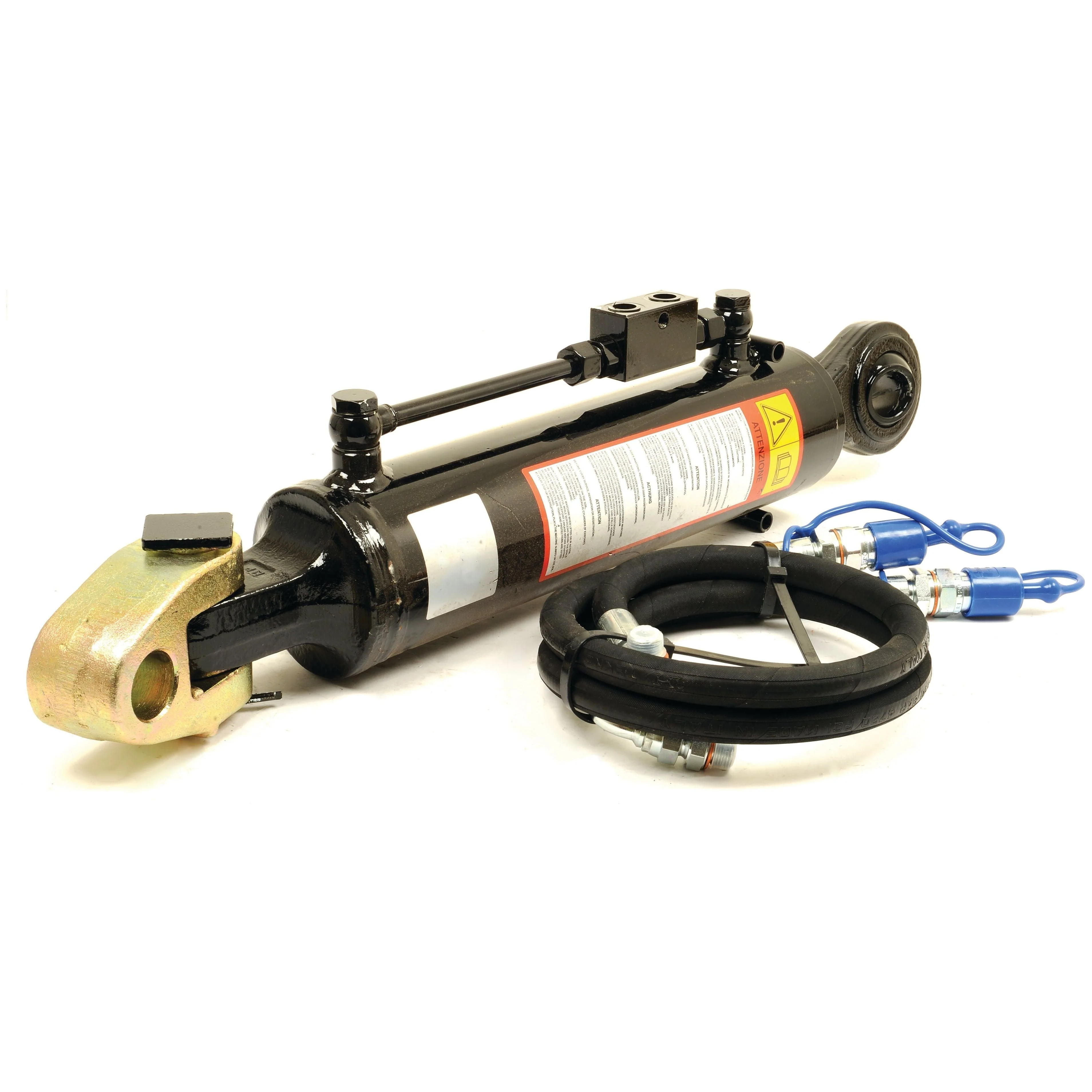

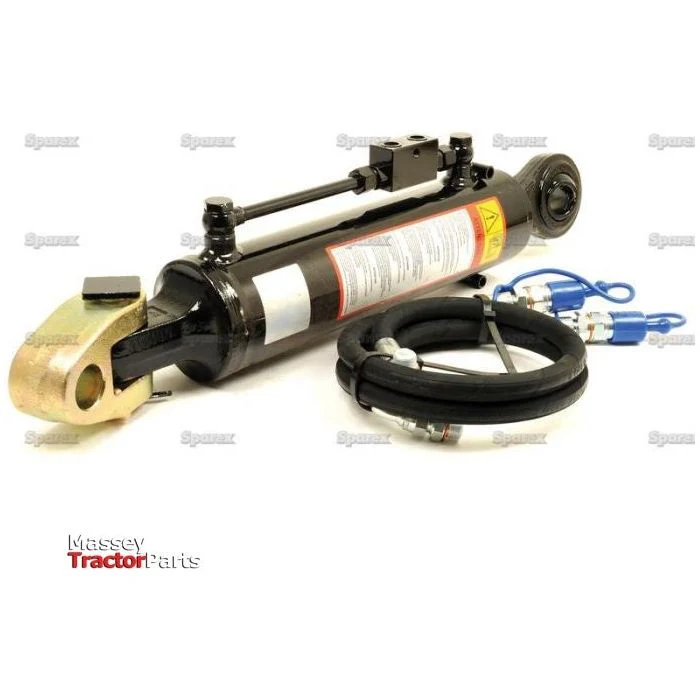

Introducing the Hydraulic Top Link by Sparex, designed for optimal performance and durability. This versatile hydraulic top link features a minimum length of 640mm and a maximum length of 903mm, making it suitable for a wide range of applications. Each unit is supplied with a hose set for easy installation and use.

Product Specifications

• A (mm): 152
• Alternative to: 56809
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 36mm
• Category: 36mm/3
• Check Valve Position: Top
• Cylinder Bore (mm): 90
• Implement End: Ball
• Lift Capacity (kgs @ 180 bar): 8770
• Maximum Length (mm): 903
• Minimum Length (mm): 640
• Related Products: 10292, 32257, 33137, 56817
• Rod Diameter (mm): 45
• Suitable for Tractors up to: 200hp (147kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 11700
• Tractor End Fixing: S.56817
• Tractor End: Knuckle

Compatibility Information

This hydraulic top link is designed for universal compatibility and is not associated with any specific make or model.

Manufacturing Information

This product does not correspond to any particular OEM part number, ensuring a broad application across various machinery.
