Hydraulic Top Link (Cat.36mm/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 640mm. | Sparex Part Number: S.331504
Hydraulic Top Link (Cat.36mm/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 640mm. | Sparex Part Number: S.331504

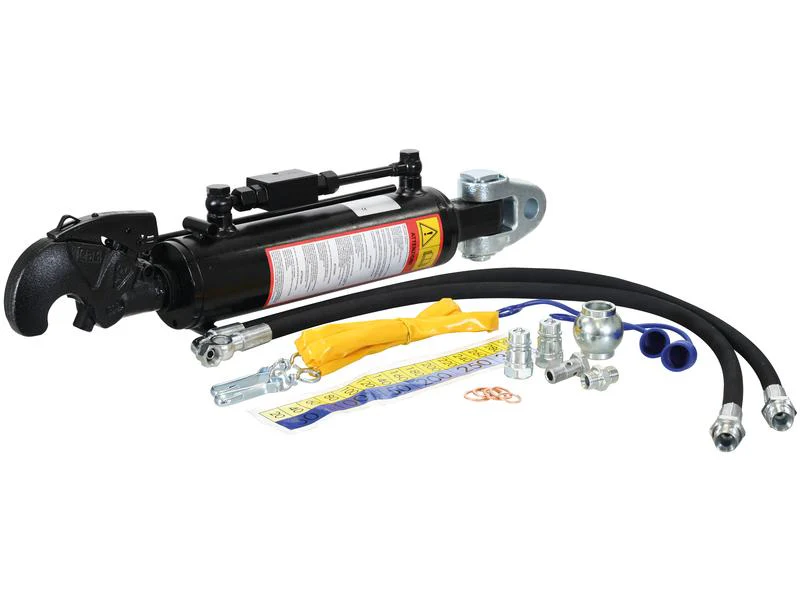

Hydraulic Top Link (Cat.36mm/2) - Knuckle and Q.R CBM Hook
Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This robust top link features a cylinder bore of 80mm and is suitable for tractors with a power output of up to 180hp (135kW).
Key Specifications:
- Length: Minimum 640mm, Maximum 885mm
- Lift Capacity: 6930 kg @ 180 bar
- Thrust Capacity: 9240 kg @ 180 bar
- Rod Diameter: 40mm
- Check Valve Position: Top
- Implement End: Q.R CBM Hook
- Tractor End: Knuckle (Fixing: S.56817)
- Alternative Part Number: 56812
- Tariff Code: 8412212090
Included Components:
This hydraulic top link comes complete with:
- Hose set
- Chain & ball
- Marker label with knuckle & pin
Related Products:
Explore additional compatible products: 10292, 32255, 33008, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968, 56817.
Upgrade your tractor's performance with the Sparex Hydraulic Top Link (Part Number: S.331504) and experience enhanced lifting capabilities and durability in your agricultural tasks.
Original: $764.78
-65%$764.78
$267.67Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Hydraulic Top Link (Cat.36mm/2) - Knuckle and Q.R CBM Hook
Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This robust top link features a cylinder bore of 80mm and is suitable for tractors with a power output of up to 180hp (135kW).
Key Specifications:
- Length: Minimum 640mm, Maximum 885mm
- Lift Capacity: 6930 kg @ 180 bar
- Thrust Capacity: 9240 kg @ 180 bar
- Rod Diameter: 40mm
- Check Valve Position: Top
- Implement End: Q.R CBM Hook
- Tractor End: Knuckle (Fixing: S.56817)
- Alternative Part Number: 56812
- Tariff Code: 8412212090
Included Components:
This hydraulic top link comes complete with:
- Hose set
- Chain & ball
- Marker label with knuckle & pin
Related Products:
Explore additional compatible products: 10292, 32255, 33008, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968, 56817.
Upgrade your tractor's performance with the Sparex Hydraulic Top Link (Part Number: S.331504) and experience enhanced lifting capabilities and durability in your agricultural tasks.
