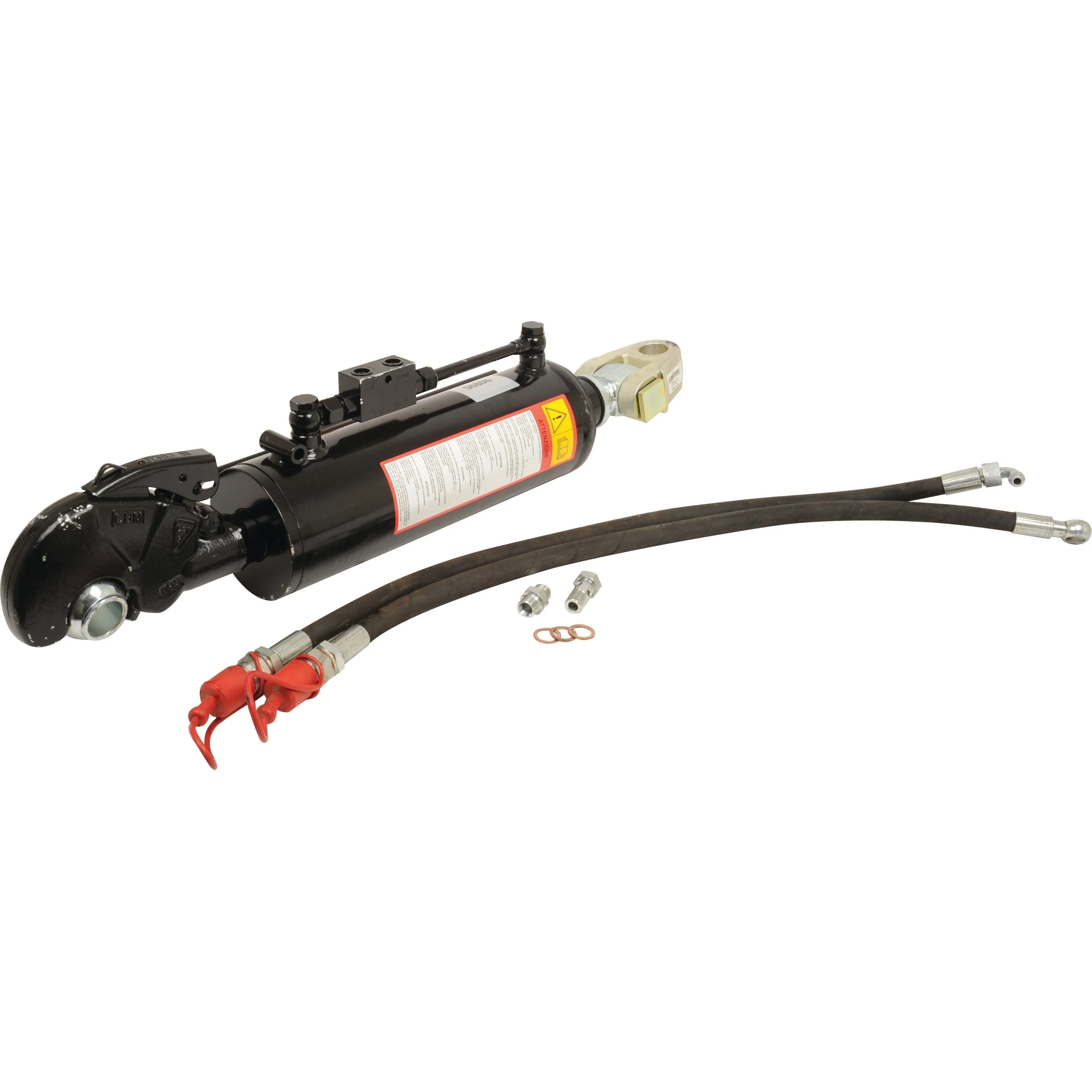

Hydraulic Top Link (Cat.36mm/2) - Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and versatility in agricultural applications. With a minimum length of 560mm and a maximum length of 725mm, this top link is perfect for a variety of tractor implements.

Key Features:

• Brand: Sparex
• Category: 36mm/2
• Cylinder Bore: 80mm
• Lift Capacity: 6930 kg @ 180 bar
• Thrust Capacity: 9240 kg @ 180 bar
• Rod Diameter: 40mm
• Check Valve Position: Top
• Implement End: Q.R CBM Hook
• Tractor End: Knuckle
• Suitable for Tractors up to: 180hp (135kW)

Specifications:

• A (mm): 152
• Alternative to: 56793
• Category Implement End: 2
• Tractor End Fixing: S.56817
• Tariff Code: 8412212090
• Related Products: 10292, 32255, 33008, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968, 56817

Included Accessories:

This hydraulic top link comes complete with a hose set, chain & ball, and a marker label with knuckle & pin for easy installation and use.

Compatibility Information:

This product is not associated with any particular make or model, ensuring broad compatibility across various tractor brands.

Manufacturer Information:

This product is not linked to any specific OEM part number, making it a versatile choice for your agricultural needs.
