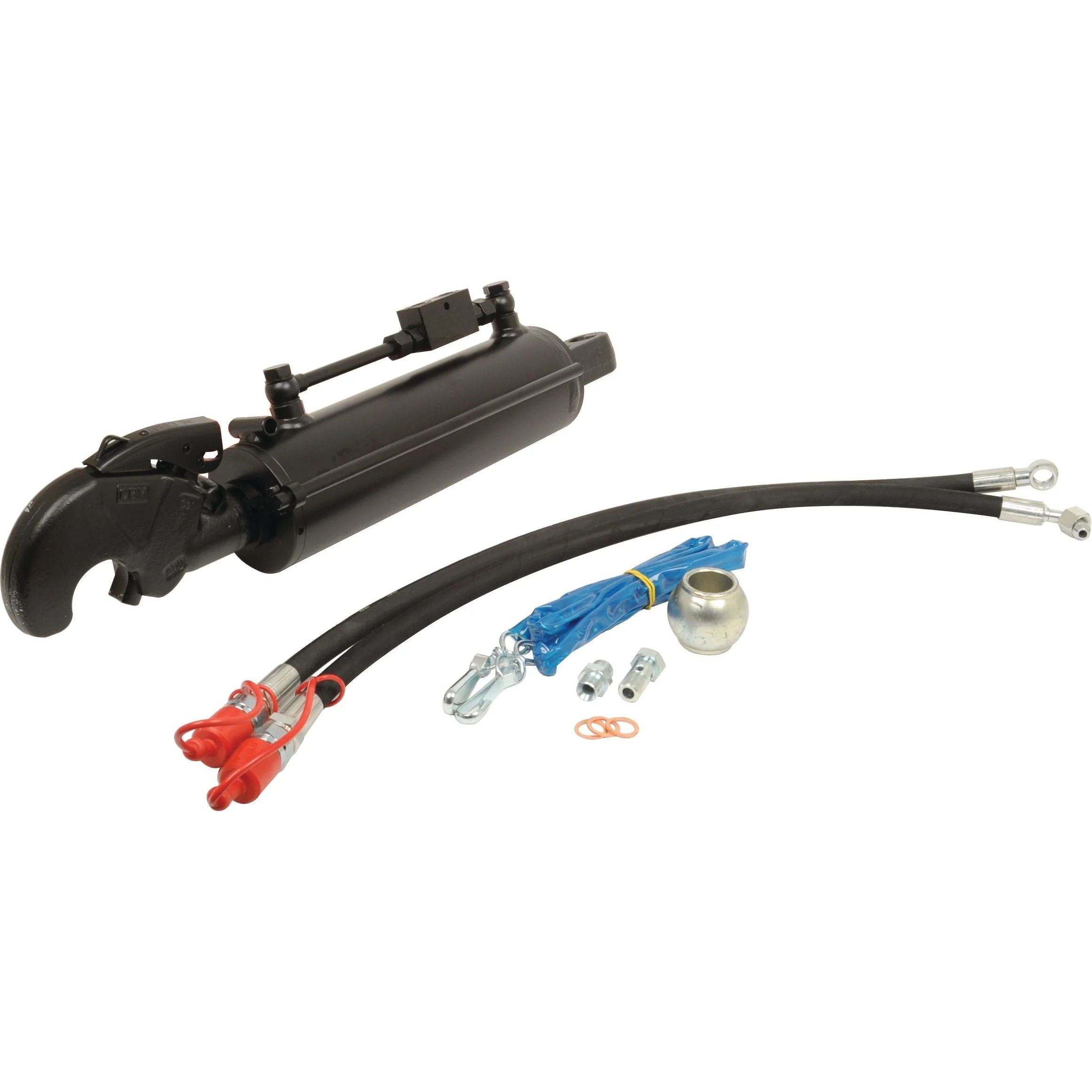

Hydraulic Top Link (Cat.-/3) with Knuckle and Q.R CBM Hook - Sparex Part No. S.56801

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a cylinder bore of 90mm and offers a minimum length of 590mm and a maximum length of 815mm. It is equipped with a Q.R CBM Hook at the implement end, ensuring a secure connection for your implements.

Product Specifications

• A (mm): 120
• Brand: Sparex
• Category Implement End: 3
• Check Valve Position: Top
• Cylinder Bore (mm): 90
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 8770
• Loop Option: 45
• Maximum Length (mm): 815
• Minimum Length (mm): 590
• Ram Stroke (mm): 235
• Rod Diameter (mm): 45
• Suitable for Tractors up to: 200hp (147kW)
• Thrust (kgs @ 180 bar): 11700
• Tractor End: Knuckle
• Tariff Code: 8412212090
• Related Products: 10287, 10288, 10289, 10290, 10292, 32257, 33004, 33010, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56815, 56817, 148196, 148197

Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring versatility across various applications.
