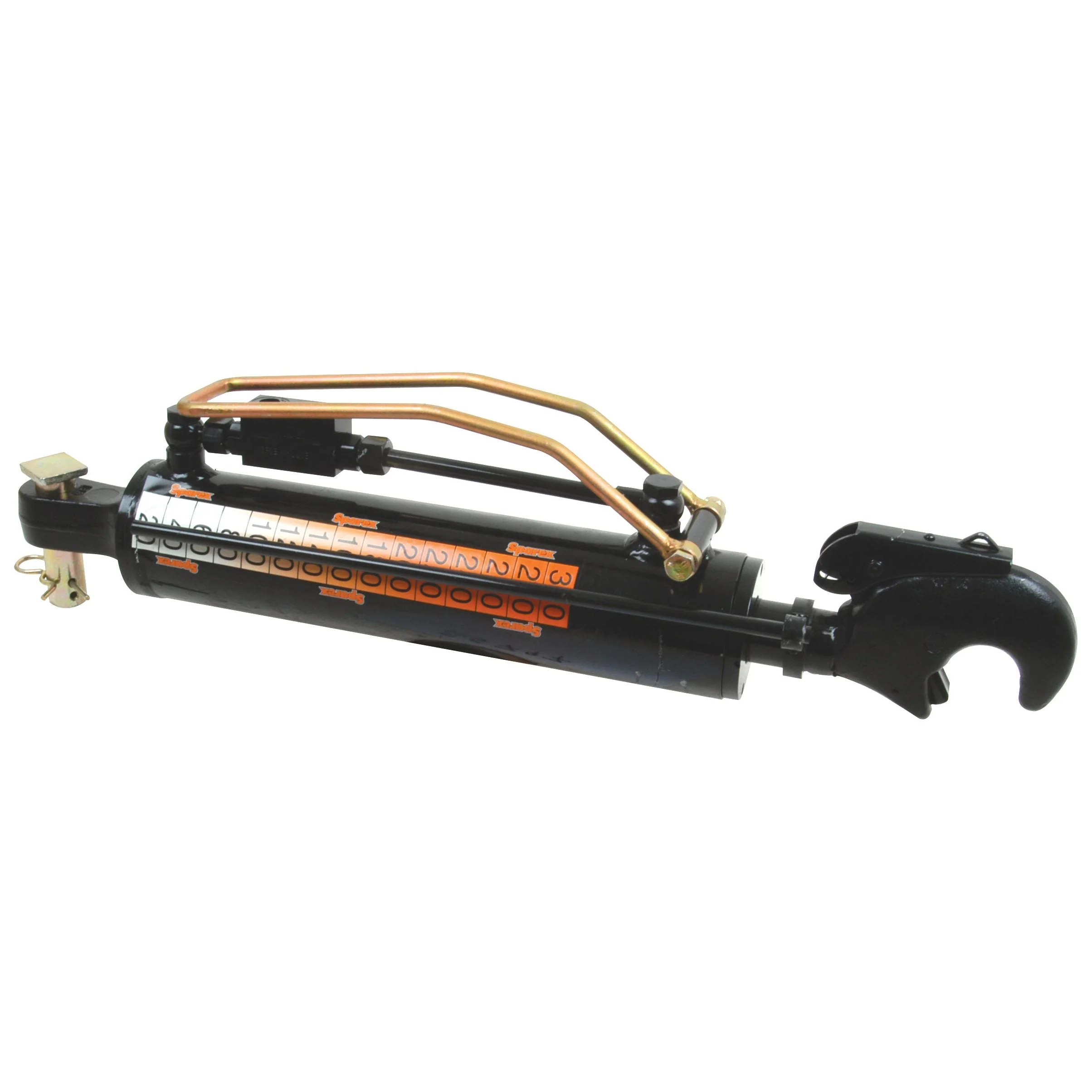

Hydraulic Top Link (Cat.-/3) with Q.R CBM Hook - Sparex Part No. S.56800

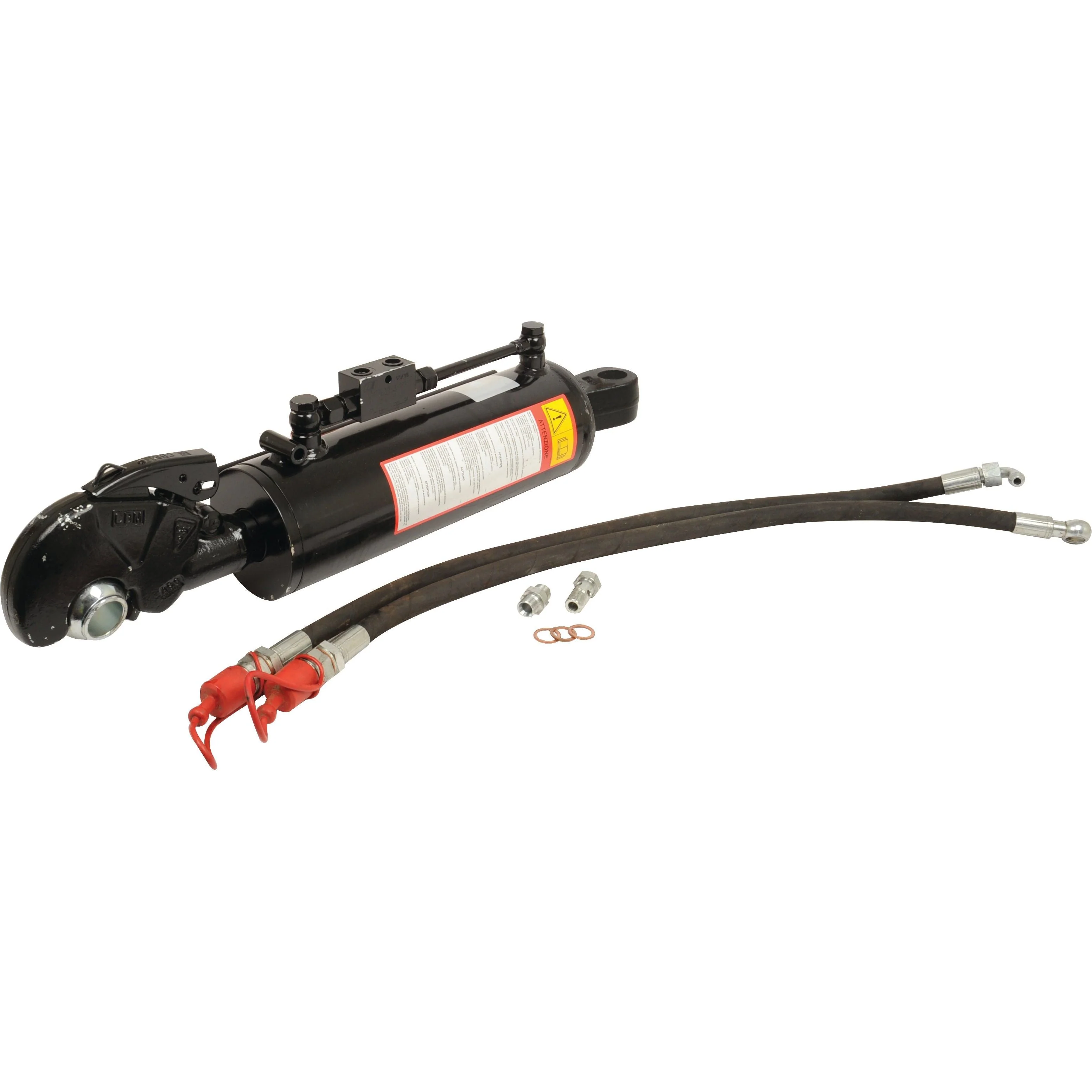

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for optimal performance, this hydraulic linkage features a minimum length of 500mm and a maximum length of 640mm. It comes complete with a hose set, chain & ball, and a marker label (without knuckle & pin), ensuring you have everything you need for installation and operation.

Product Specifications

• A (mm): 120
• Alternative to: 399891, 399892, 399893, 399894
• Brand: Sparex
• Category Implement End: 3
• Category: -/3
• Check Valve Position: Top
• Cylinder Bore (mm): 90
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs) @ 180 bar: 8770
• Loop Option: 45
• Maximum Length (mm): 640
• Minimum Length (mm): 500
• Ram Stroke (mm): 160
• Related Products: 10287, 10288, 10289, 10290, 10292, 32257, 33004, 33010, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56815, 56817, 148196, 148197
• Rod Diameter (mm): 45
• Suitable for Tractors up to: 200hp (147kW)
• Supplied with: Hose set, chain & ball, marker label without knuckle & pin
• Tariff Code: 8413910090
• Thrust (kgs) @ 180 bar: 11700

Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various applications.
