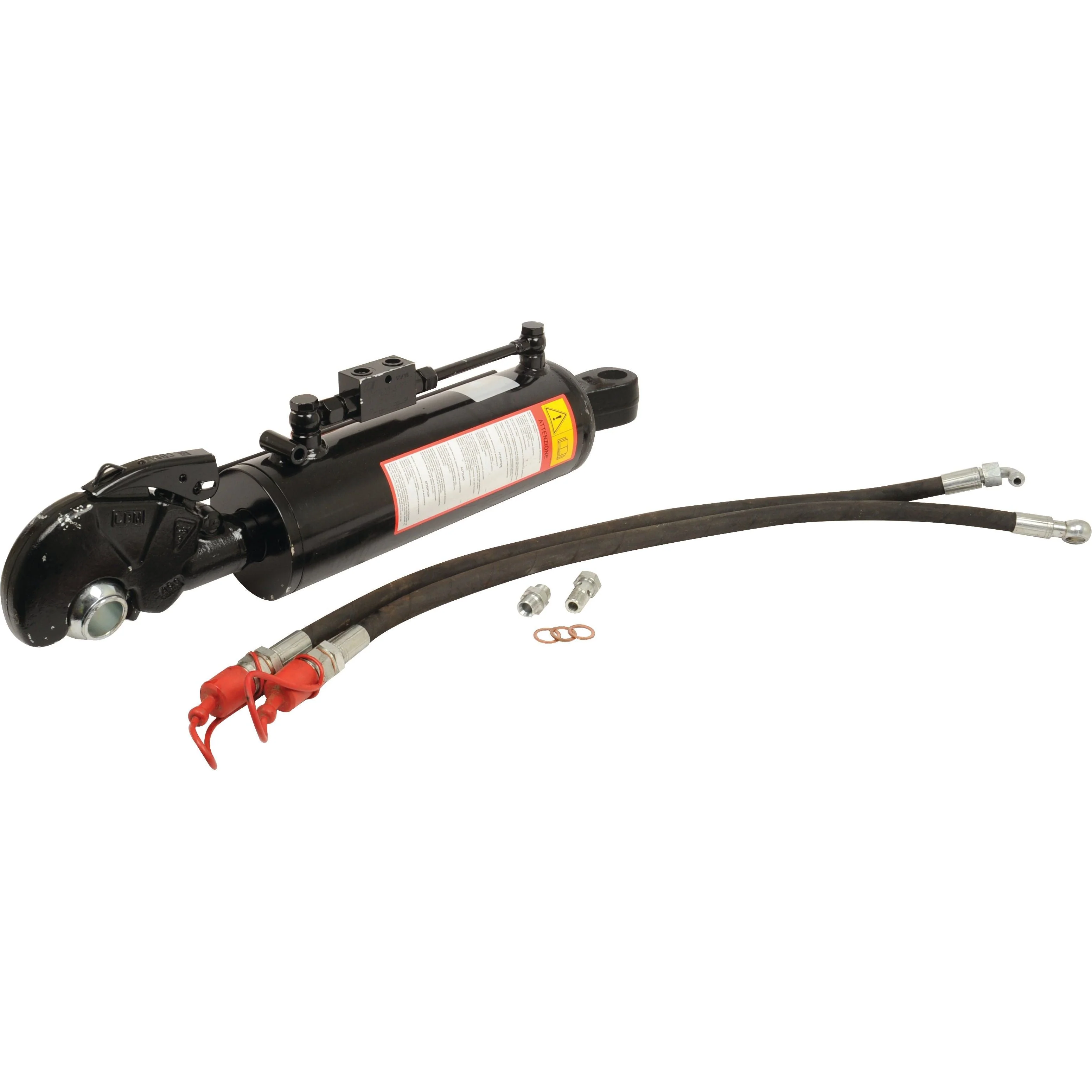

Hydraulic Top Link (Cat.-/3) with Q.R CBM Hook - Sparex Part No. S.32931

Enhance your agricultural equipment with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this hydraulic linkage features a minimum length of 635mm and a maximum length of 905mm. It comes complete with a hose set, chain & ball, and a marker label (without knuckle & pin) for easy installation and operation.

Product Specifications

• Alternative to: 399711, 399712, 399713, 399714
• Brand: Sparex
• Category Implement End: 3
• Check Valve Position: Top
• Cylinder Bore: 80mm
• Implement End: Q.R CBM Hook
• Lift Capacity @ 180 bar: 6930 kg
• Maximum Length: 905mm
• Minimum Length: 635mm
• Rod Diameter: 40mm
• Suitable for Tractors up to: 180hp (135kW)
• Thrust @ 180 bar: 9240 kg
• Tariff Code: 8412212090
• Related Products: 10287, 10288, 10289, 10290, 10292, 32255, 33004, 33010, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 148196, 148197

Compatibility Information

This hydraulic top link is not associated with any specific make or model, making it a versatile choice for various applications.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring broad compatibility across different machinery.
