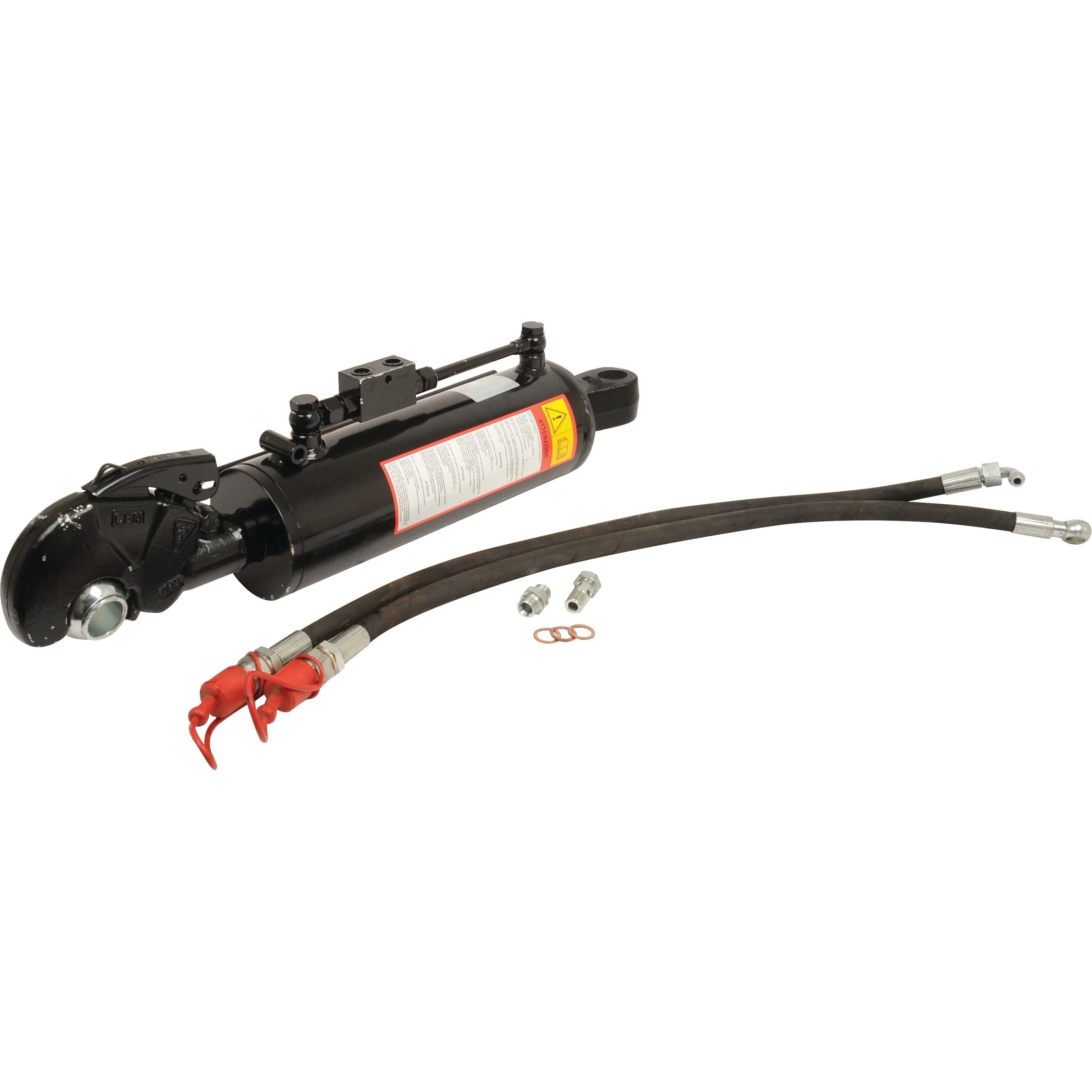

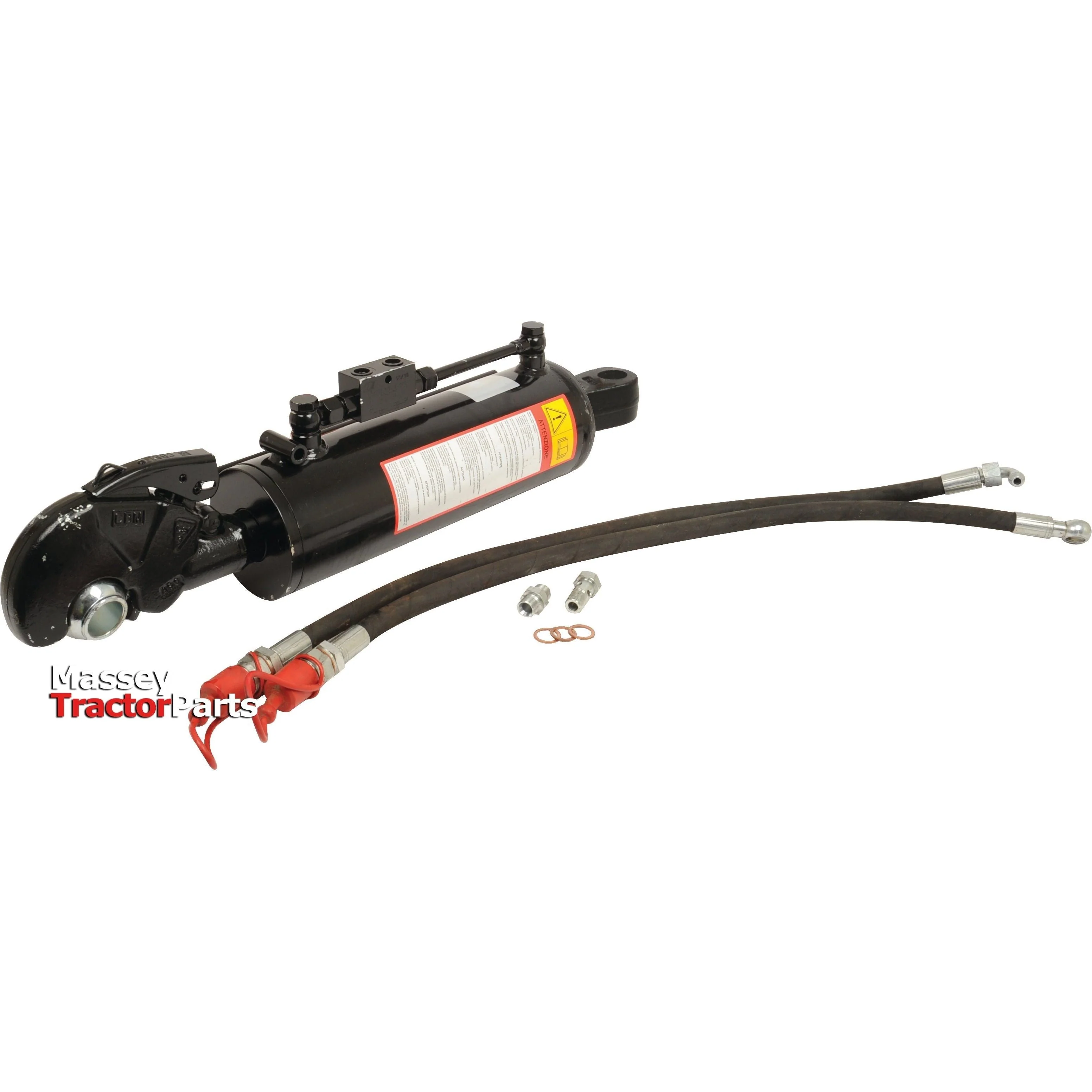

Hydraulic Top Link (Cat.-/3) with Q.R CBM Hook - Sparex Part No. S.56799

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for optimal performance, this hydraulic linkage features a minimum length of 505mm and a maximum length of 645mm. It comes complete with a hose set, chain & ball, and a marker label (without knuckle & pin) for easy installation and use.

Product Specifications

• Alternative to: 331541, 331542, 331543, 331544
• Brand: Sparex
• Category Implement End: 3
• Check Valve Position: Top
• Cylinder Bore: 80mm
• Implement End: Q.R CBM Hook
• Lift Capacity @ 180 bar: 6930 kg
• Maximum Length: 645mm
• Minimum Length: 505mm
• Rod Diameter: 40mm
• Suitable for Tractors up to: 180hp (135kW)
• Supplied with: Hose set, chain & ball, marker label without knuckle & pin
• Tariff Code: 8412212090
• Thrust @ 180 bar: 9240 kg

Compatibility Information

This hydraulic top link is versatile and not associated with any specific make or model, making it an excellent choice for various applications.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring broad compatibility across different machinery.
