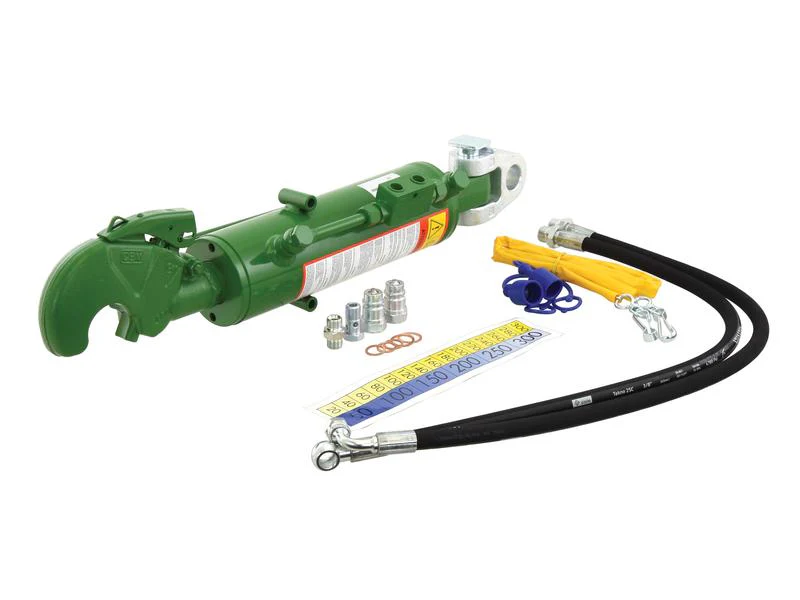

Hydraulic Top Link (Cat.3/3) - Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and compatibility with a range of John Deere tractors. This robust top link features a cylinder bore of 90mm and is engineered to handle heavy lifting tasks with ease.

Key Features:

• Alternative to: 150141
• Brand: Sparex
• Category: 3/3
• Implement End: Q.R CBM Hook
• Tractor End: Knuckle
• Check Valve Position: 45°
• Rod Diameter: 45mm
• Lift Capacity: 8770 kg @ 180 bar
• Thrust Capacity: 11700 kg @ 180 bar
• Minimum Length: 660mm
• Maximum Length: 888mm
• Suitable for Tractors up to: 200hp (147kW)
• Tariff Code: 8412212090

Compatibility:

This hydraulic top link is compatible with various John Deere models, including:

• 6090MC, 6090RC
• 6100MC, 6100RC
• 6110M, 6110MC, 6110RC
• 6120M, 6125M
• 6130, 6140M, 6145M
• 6R Series (110-250)
• And many more!

Related Products:

Explore additional compatible products: 10288, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33202, 39968, 148196, 148197, 150215, 163766.

Upgrade your tractor's performance with the Sparex Hydraulic Top Link - a reliable solution for all your agricultural needs!
