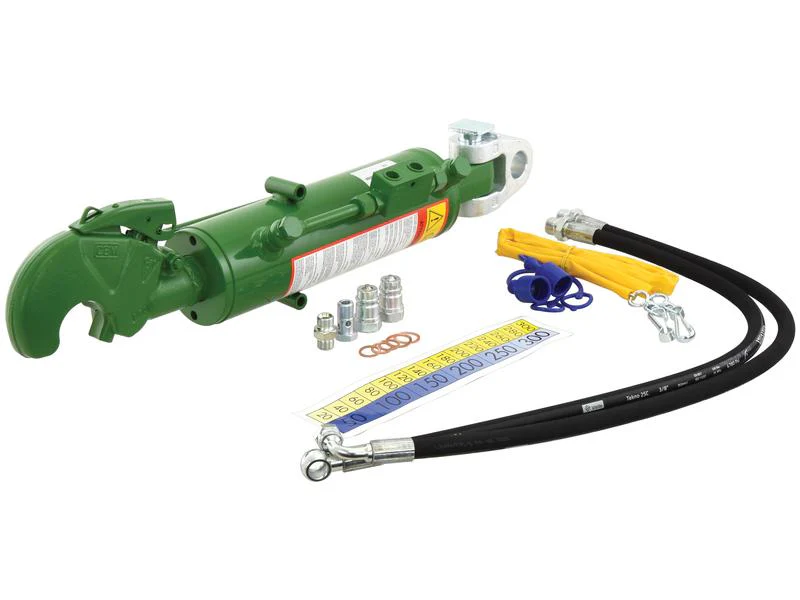

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook

Brand: Sparex

Part Number: S.150076

Product Type: Top Link

SKU: SP-150076

OEM Fitment: John Deere AL175552

Machine Compatibility: Suitable for John Deere models including 6150M, 6170M, 6830, 6930, and 7330 (North America Edition) among others.

Product Features:

• Category: 3/3
• Implement End: 3
• Tractor End: 3 (Knuckle)
• Check Valve Position: 45°
• Cylinder Bore: 90 mm
• Rod Diameter: 45 mm
• Thrust Capacity: 11700 kgs @ 180 bar
• Implement End Capacity: Q.R CBM HookLift 8770 kgs @ 180 bar
• Length Specifications: Minimum Length: 580 mm, Maximum Length: 768 mm

Included Accessories:

This hydraulic top link comes complete with a hose set, chain & ball, and a marker label featuring knuckle & pin for easy installation and use.

Additional Information:

Tariff Code: 8412212090

Suitable for Tractors up to: 200 hp (147 kW)

Related Products:

Explore additional compatible products: 10288, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33202, 148196, 148197, 150215, 163766.

Upgrade your tractor's performance with the Sparex Hydraulic Top Link, designed for durability and efficiency in demanding agricultural applications.
