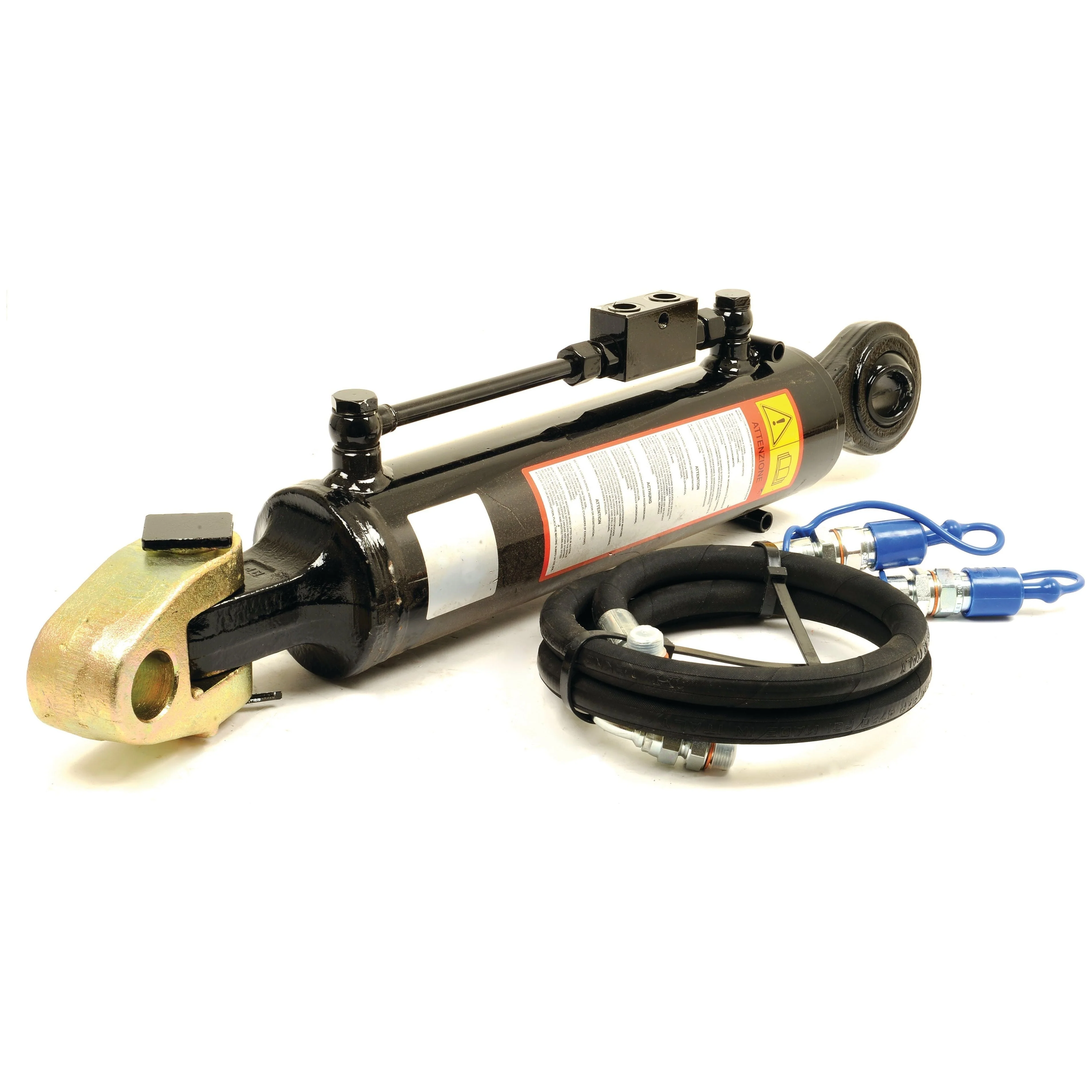

Introducing the Hydraulic Top Link (Cat.3/3) with Knuckle and Ball, designed for optimal performance in heavy-duty applications. This robust hydraulic top link features a cylinder bore of 120mm and offers a minimum length of 760mm and a maximum length of 995mm. It comes complete with a hose set for easy installation and use.

Product Specifications

• A (mm): 200
• Alternative to: 119710
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 3
• Category: 3/3
• Check Valve Position: Top
• Cylinder Bore (mm): 120
• Implement End: Ball
• Lift Capacity (kgs @ 180 bar): 18600
• Maximum Length (mm): 995
• Minimum Length (mm): 760
• Related Products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 119704, 119709, 164592
• Rod Diameter (mm): 50
• Suitable for Tractors up to: 400hp (294kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 24600
• Tractor End: Knuckle

Suitable For

This hydraulic top link is compatible with a variety of tractor models, including:

• Claas: AXION 920, AXION 930, AXION 940, AXION 950, AXION 960, XERION 4000, XERION 4500, XERION 5000
• Ford / New Holland: T8010, T8020, T8030, T8040, T8050, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305
• Massey Ferguson: 8450, 8460, 8470, 8480, 8650, 8660, 8670, 8680, 8690, 8727, 8727 S, 8730, 8730 S, 8732, 8732 S, 8735, 8735 S, 8737, 8737 S, 8740, 8740 S

Manufacturer Information

Manufactured by Massey Ferguson, Part No: 4295829M91.
