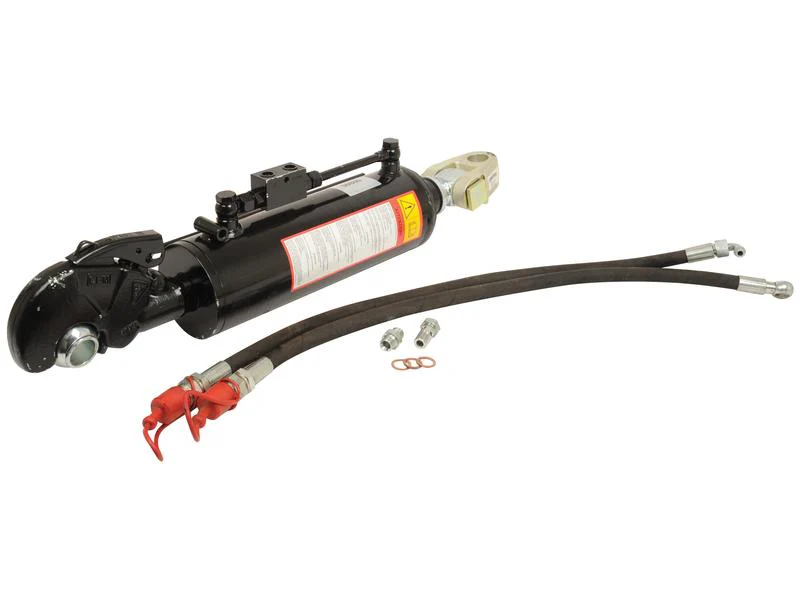

Hydraulic Top Link (Cat.3/2) - Knuckle and Q.R CBM Hook

Sparex Part Number: S.331862

Upgrade your tractor's performance with the Hydraulic Top Link designed for optimal functionality and durability. This top link features a robust cylinder bore of 63mm and is suitable for tractors up to 100hp (74kW).

Key Specifications:

• Length: Minimum 585mm, Maximum 776mm
• Lift Capacity: 3960 kg @ 180 bar
• Thrust Capacity: 5730 kg @ 180 bar
• Rod Diameter: 35mm
• Check Valve Position: Top
• Implement End: Q.R CBM Hook
• Tractor End: Knuckle
• Category: 3/2
• Category Implement End: 2
• Category Tractor End: 3
• A (mm): 148
• Alternative to: 32934
• Tariff Code: 8412212090

Included Components:

This hydraulic top link comes complete with:

• Hose set
• Chain & ball
• Marker label with threaded rod
• Knuckle & pin

Related Products:

Explore additional compatible products: 10288, 10292, 32253, 32946, 32952, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199.

Enhance your tractor's capabilities with the reliable and efficient Hydraulic Top Link from Sparex. Order now to experience superior performance!
