Introducing the Hydraulic Top Link (Cat. 28mm/3) with a robust Cylinder Bore of 90mm. This essential agricultural component features a minimum length of 650mm and a maximum length of 876mm, making it versatile for various applications. Each unit is supplied with a complete hose set, chain & ball, and a marker label equipped with a knuckle and pin for easy installation.

Product Specifications

• A (mm): 152
• Alternative to: 399993, 56801, 149593, 149665
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 3
• Category: 28mm/3
• Check Valve Position: Top
• Cylinder Bore (mm): 90

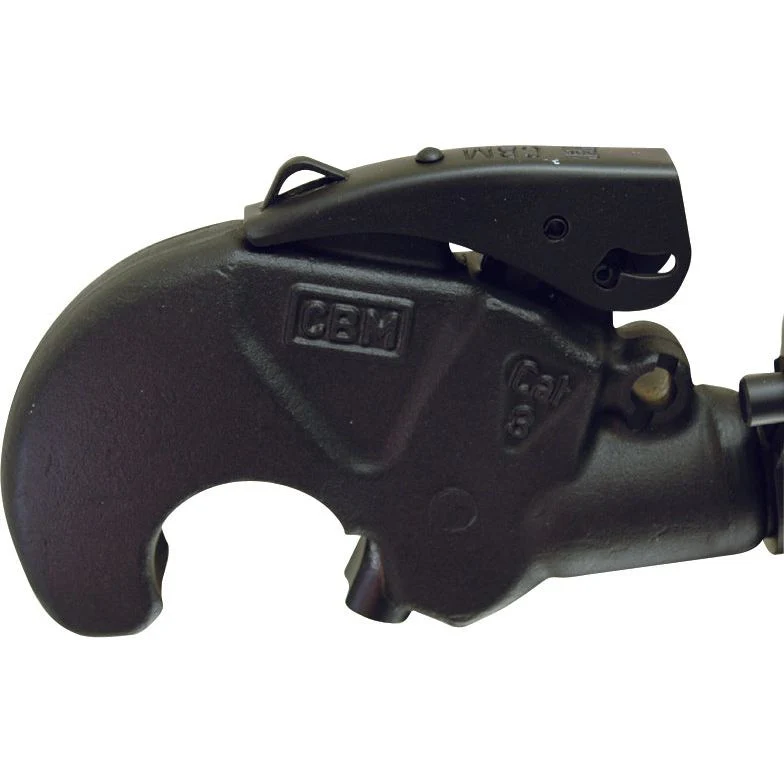

• Implement End: Q.R CBM Hook
• Lift Capacity (kgs) @ 180 bar: 8770
• Maximum Length (mm): 876
• Minimum Length (mm): 650
• Related Products: 10289, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197, 149679
• Rod Diameter (mm): 45
• Suitable for Tractors up to HP/Kw: 200hp (147kW)

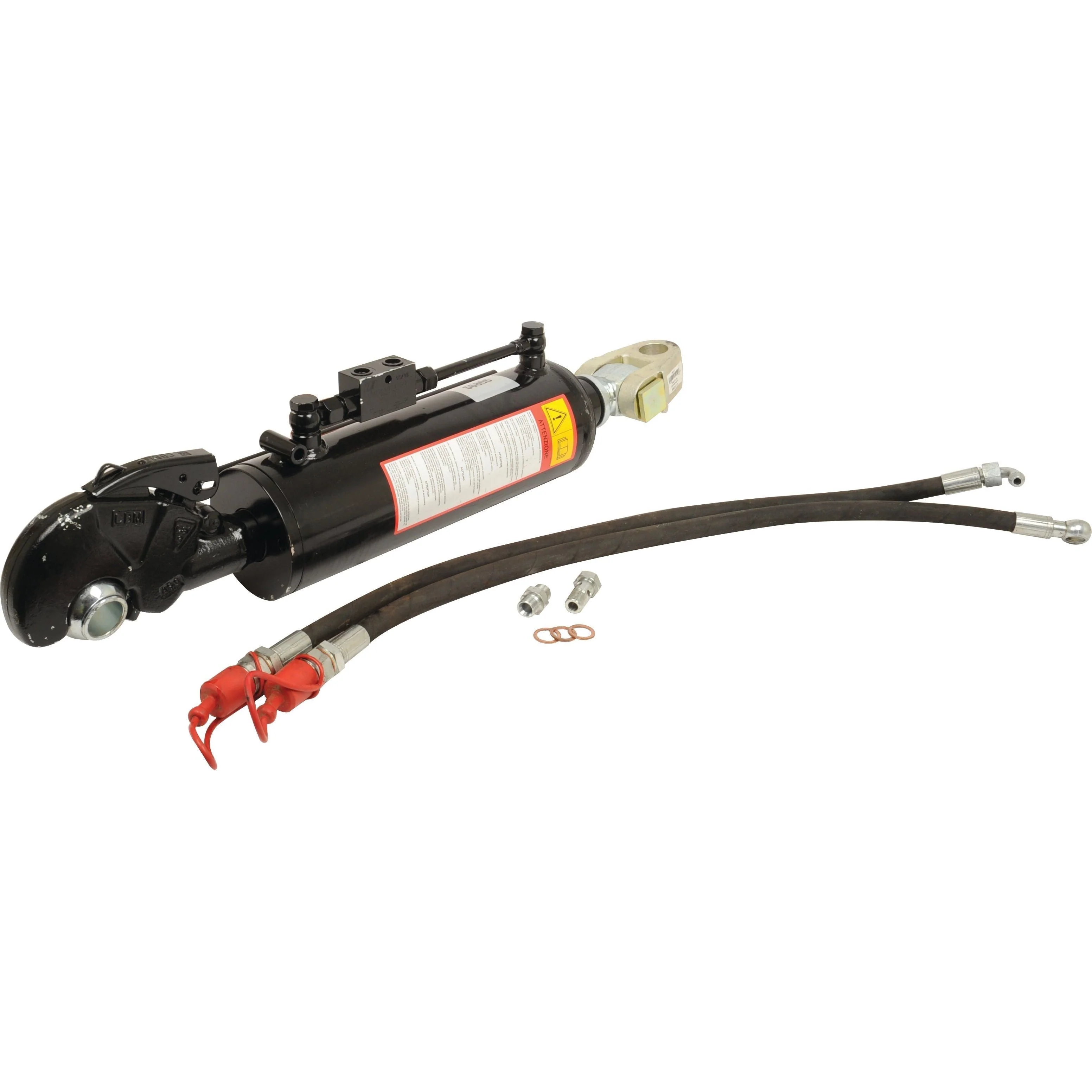

• Supplied with: Hose set, chain & ball, marker label with knuckle & pin
• Tariff Code: 8412212090
• Thrust (kgs) @ 180 bar: 11700
• Tractor End Fixing: S.10289

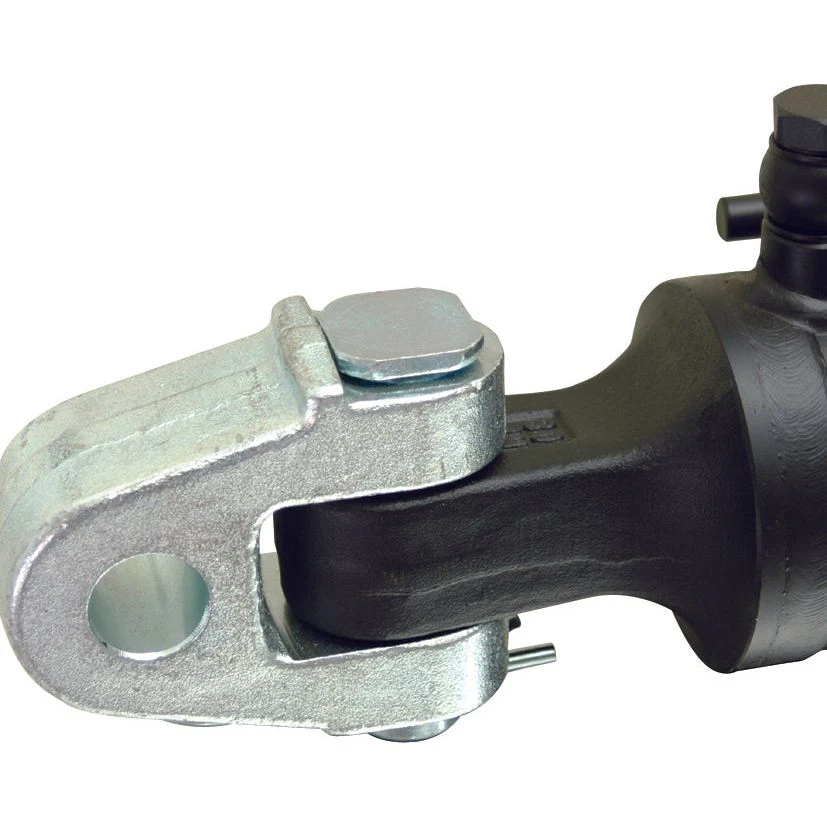

• Tractor End: Knuckle

Suitable For Information

This hydraulic top link is compatible with a wide range of tractors, including models from Case IH / International Harvester, Fiat, Ford / New Holland, and Steyr. Specific models include:

• Case IH / International Harvester: MAXXUM 100, 110, 120, 130, 140, 150, and more.
• Fiat: M100, M115, M125, M135, M160.
• Ford / New Holland: T6.120, T6.140, T6.150, TM120, TM130, and more.
• Steyr: 4100 PROFI, 4110 PROFI, 4120 PROFI, and more.

Manufacture Information

Compatible with OEM part numbers from Ford / New Holland: 82032588, 84399114, 84517023, 47134200, 48078438, 87710192.
