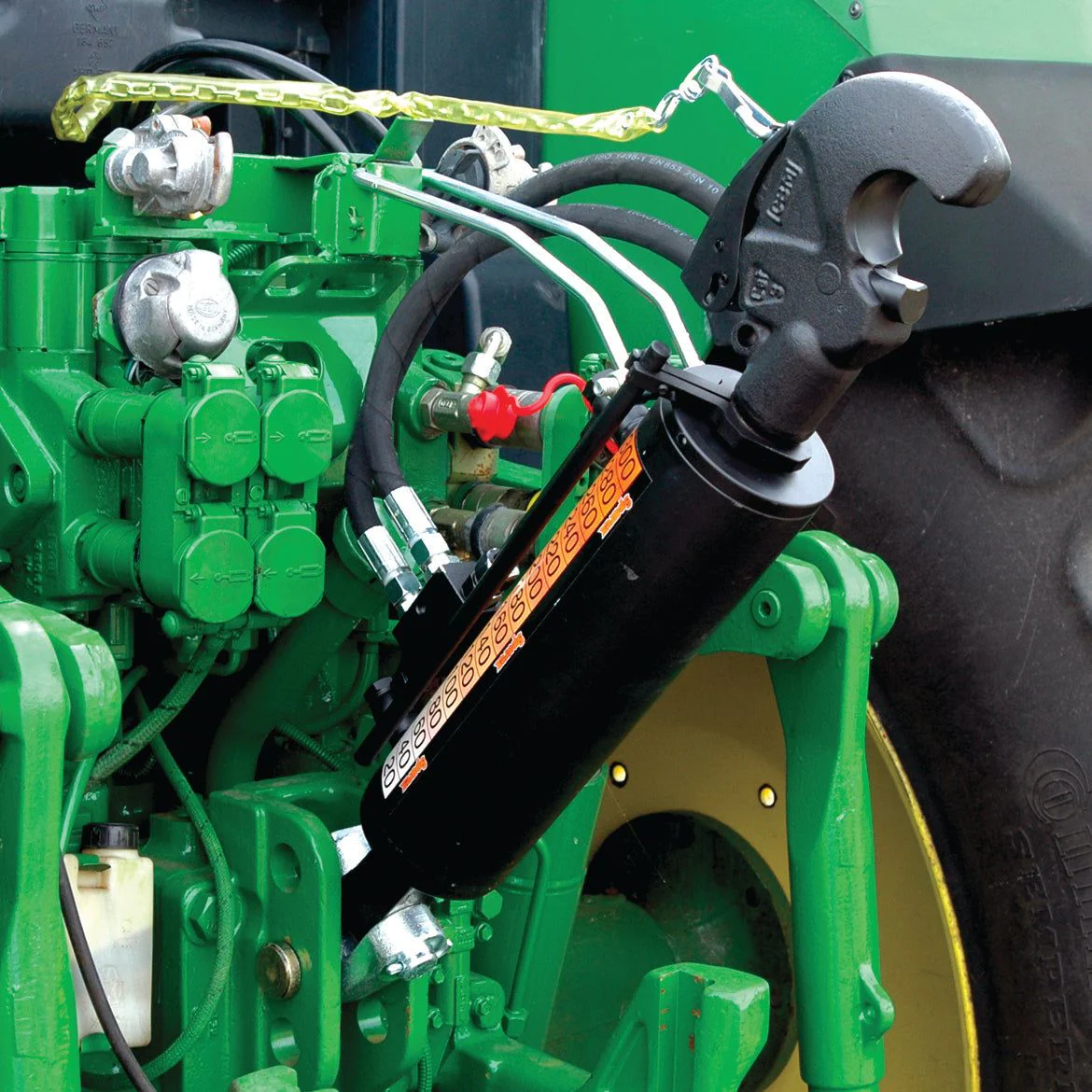

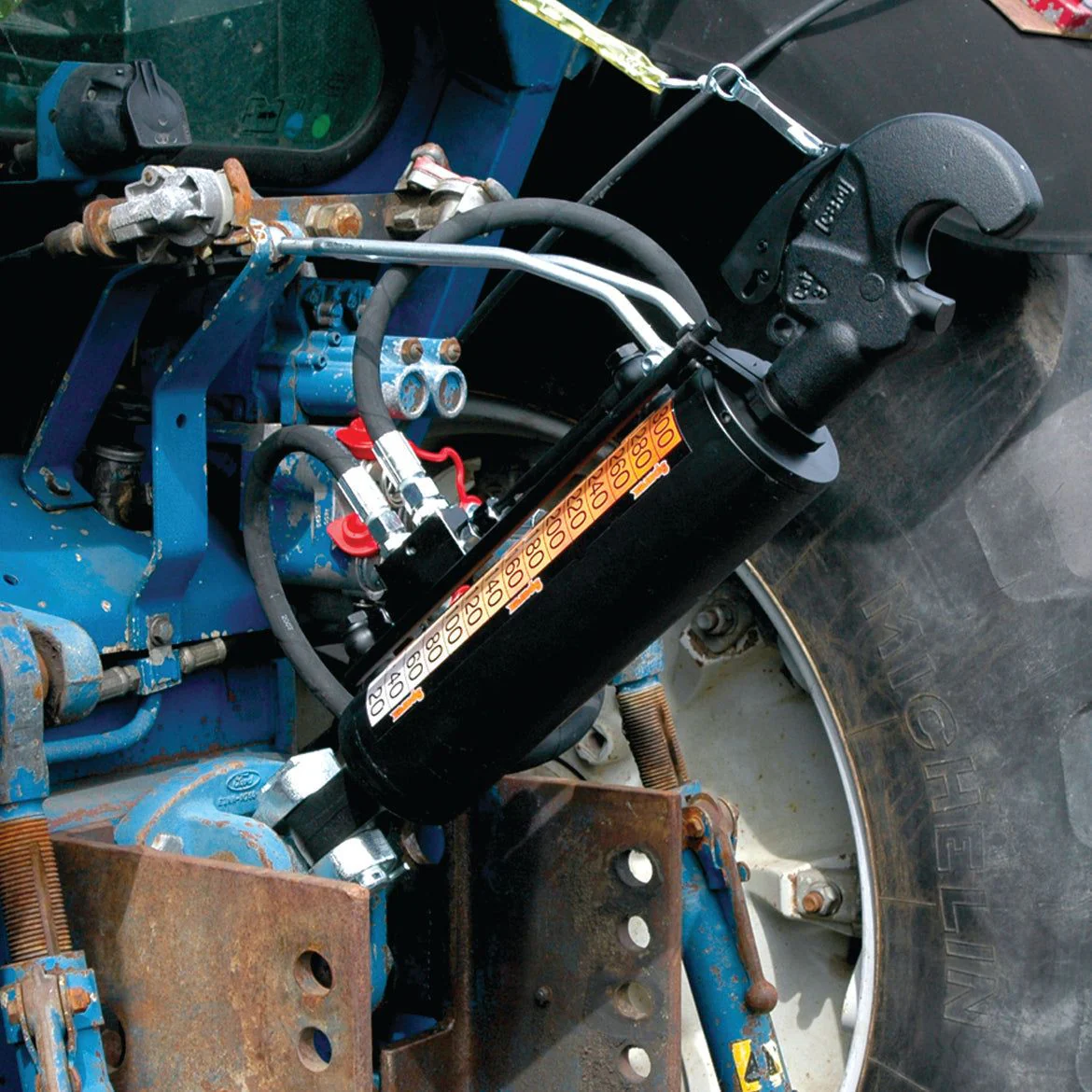

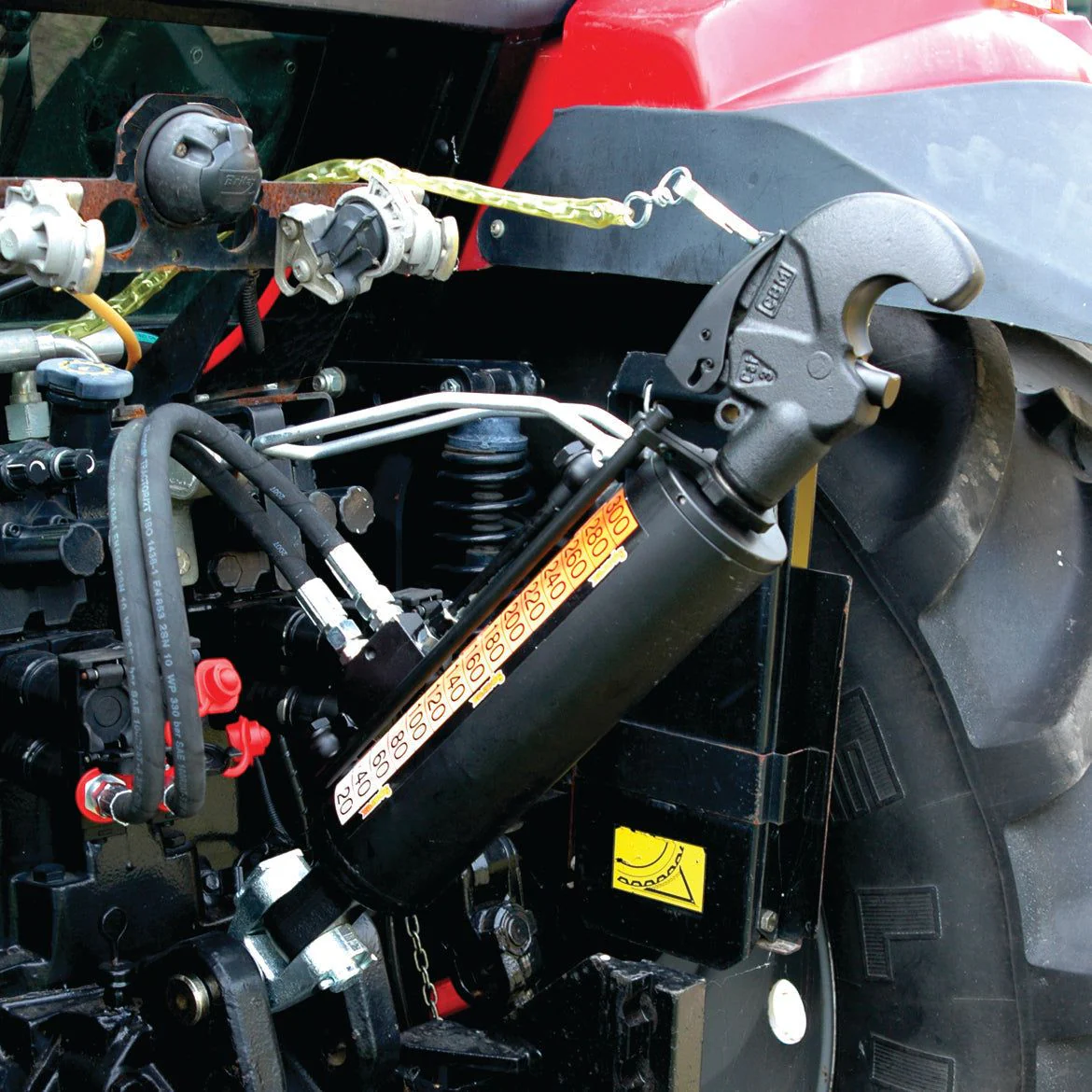

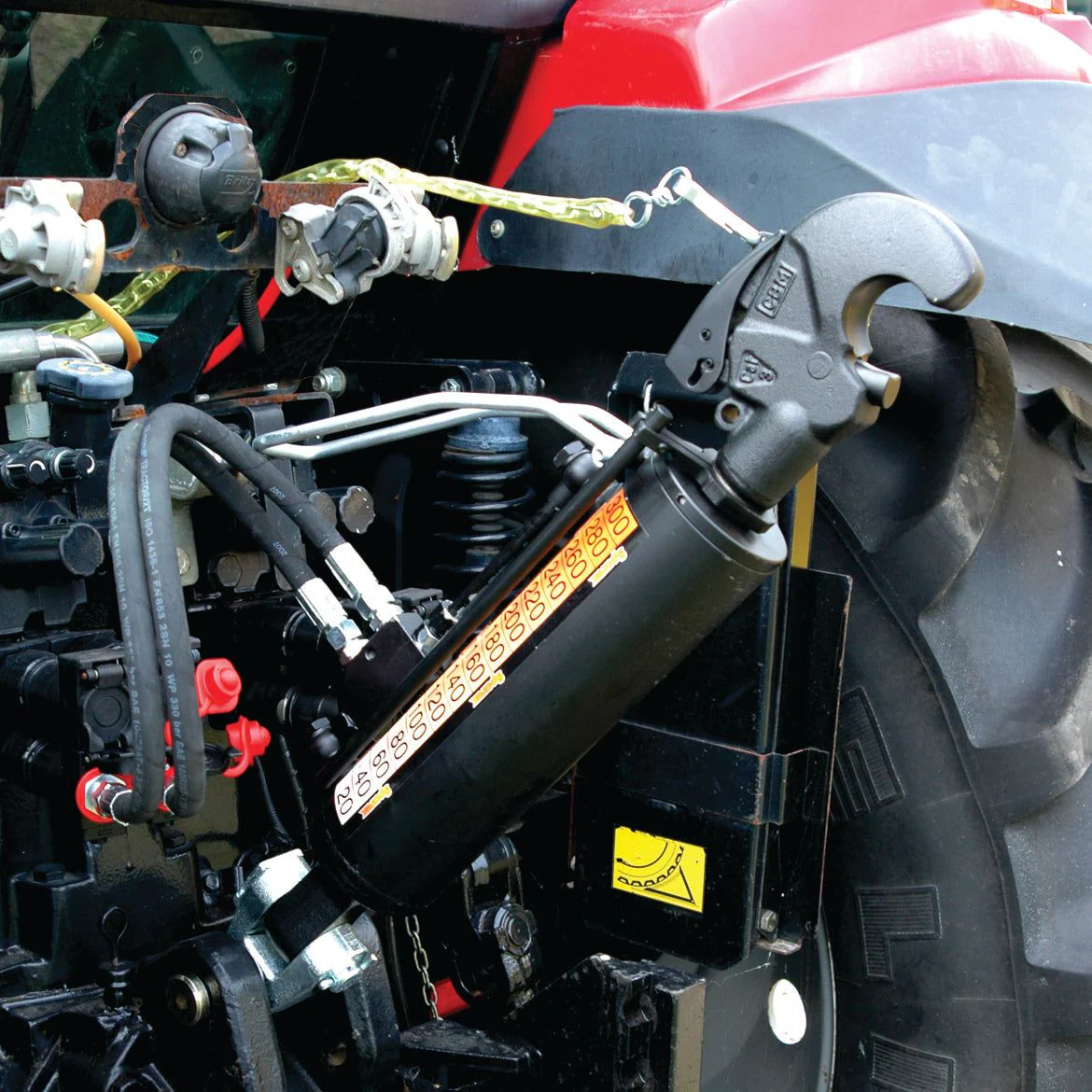

Hydraulic Top Link (Cat.28mm/3) - Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and versatility in agricultural applications. With a minimum length of 565mm and a maximum length of 706mm, this hydraulic top link is perfect for tractors up to 200hp (147kW).

Key Features:

• Supplied with: Hose set, chain & ball, marker label with knuckle & pin
• Cylinder Bore: 90mm
• Lift Capacity: 8770 kg @ 180 bar
• Thrust Capacity: 11700 kg @ 180 bar
• Rod Diameter: 45mm
• Check Valve Position: Top

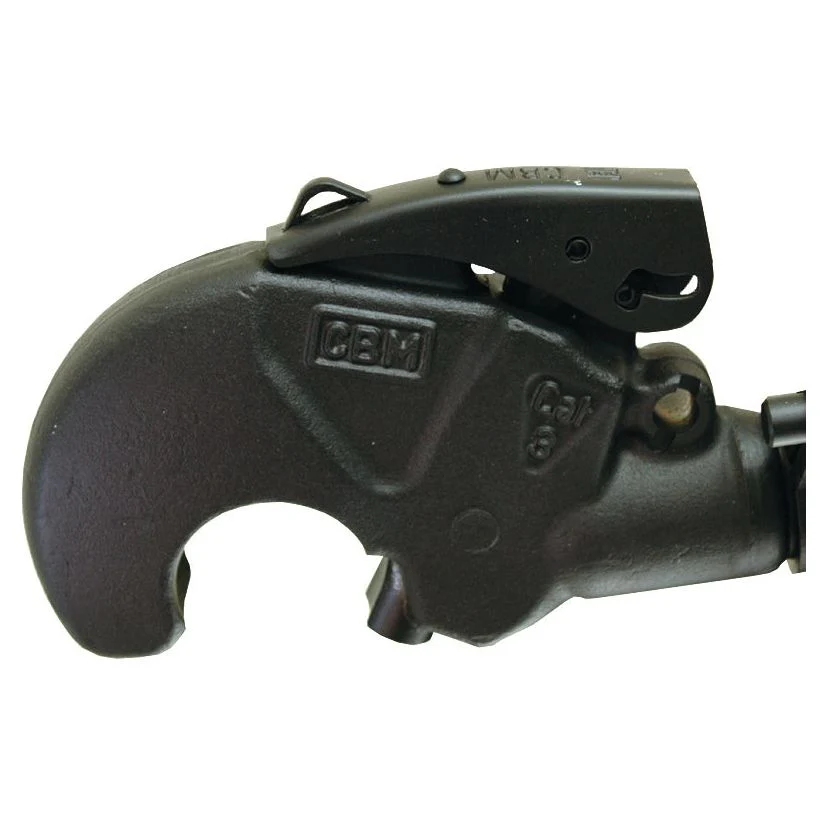

• Implement End: Q.R CBM Hook

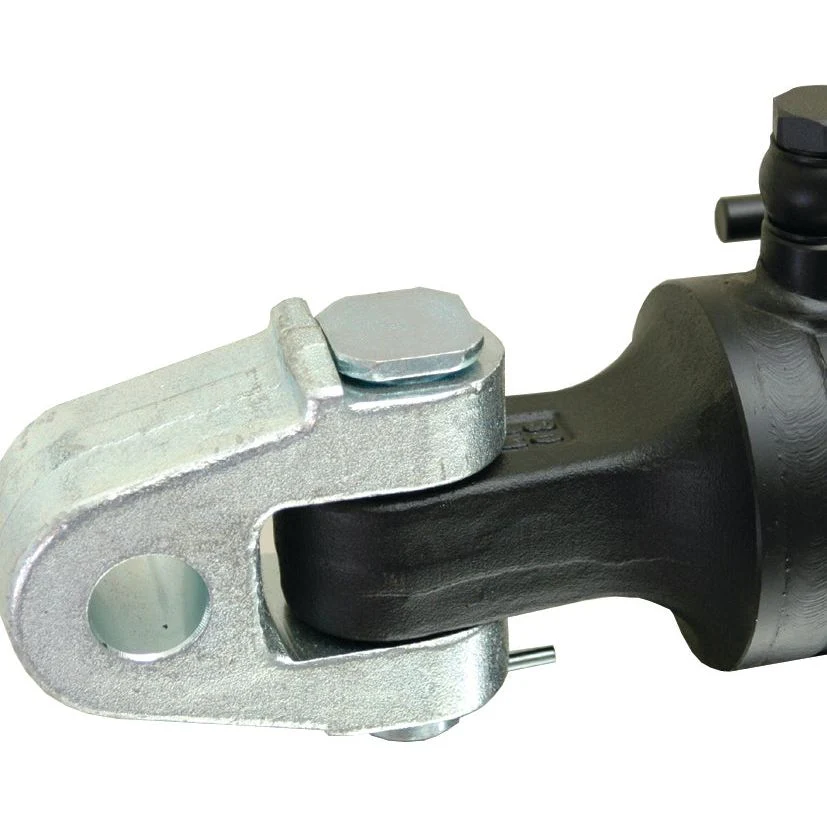

• Tractor End: Knuckle
• Tariff Code: 8412212090

Product Specifications:

• A (mm): 152
• Alternative to: 56800
• Category Implement End: 3
• Category Tractor End: 28mm
• Category: 28mm/3
• Related Products: 10289, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
• Tractor End Fixing: S.10289

Compatibility Information:

This hydraulic top link is not associated with any specific make or model, providing flexibility for various applications.

Manufacturer Information:

This product is not linked to any particular OEM part number, ensuring a broad range of compatibility.
