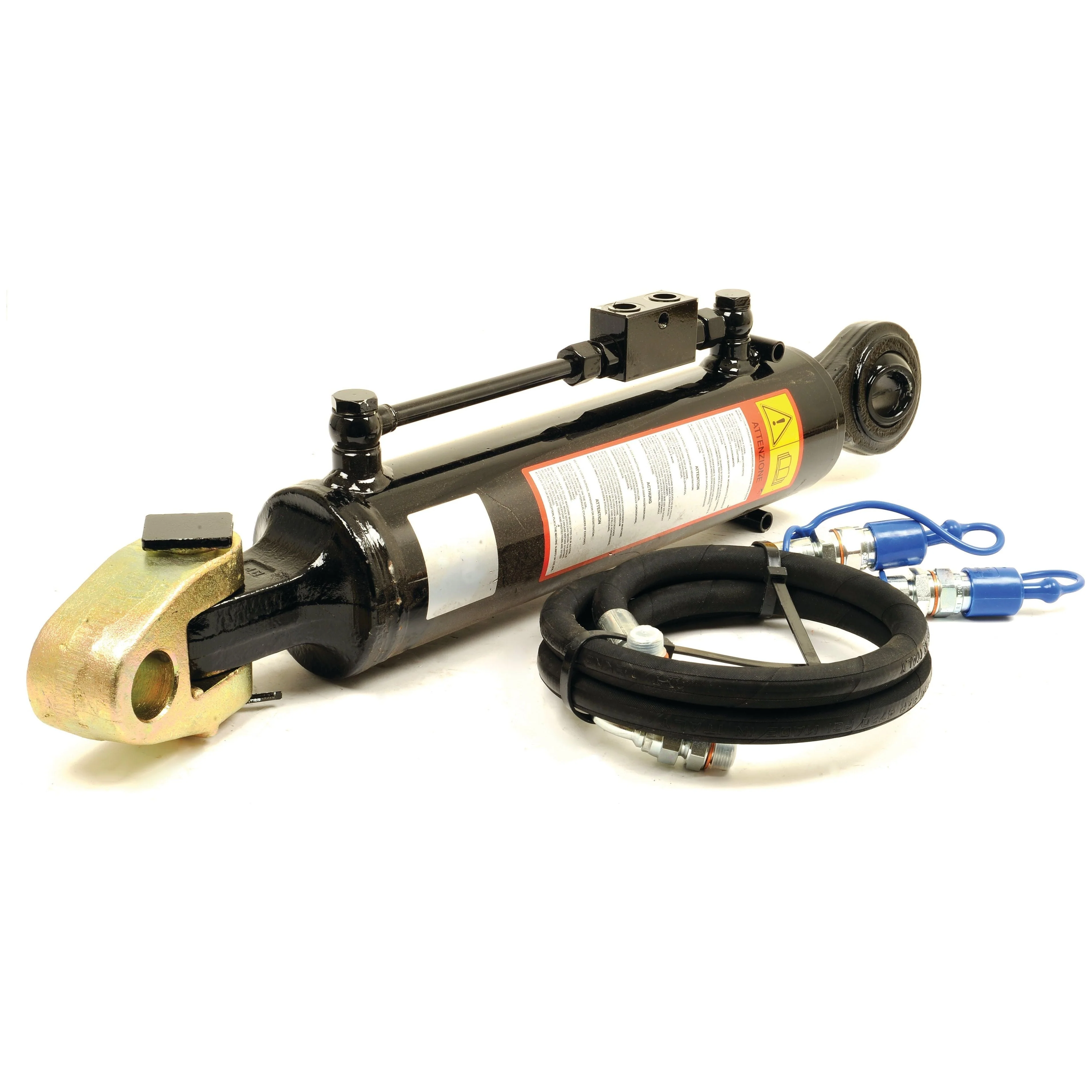

Hydraulic Top Link (Cat.28mm/3) Knuckle and Ball, Cylinder Bore: 90mm | Sparex Part No.S.399993

Enhance your tractor's performance with the Hydraulic Top Link, designed for durability and efficiency. This top link features a minimum length of 640mm and a maximum length of 903mm, making it versatile for various applications. It comes complete with a hose set for easy installation.

Product Specifications

• A (mm): 152
• Alternative to: 331203, 56809, 149696
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 28mm
• Category: 28mm/3
• Check Valve Position: Top
• Cylinder Bore (mm): 90
• Implement End: Ball
• Lift Capacity (kgs @ 180 bar): 8770
• Maximum Length (mm): 903
• Minimum Length (mm): 640
• Related Products: 10289, 10292, 32257, 33137, 149679
• Rod Diameter (mm): 45
• Suitable for Tractors up to: 200hp (147kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 11700
• Tractor End Fixing: S.10289
• Tractor End: Knuckle

Suitable For Information

This hydraulic top link is compatible with a wide range of tractors, including:

• Case IH / International Harvester: MAXXUM series, PUMA series, and more.
• Fiat: M100, M115, M125, M135, M160.
• Ford / New Holland: T6 series, TM series, and more.
• Steyr: PROFI series and more.

Manufacture Information

This product is not associated with any particular OEM part number, ensuring compatibility across various models.
