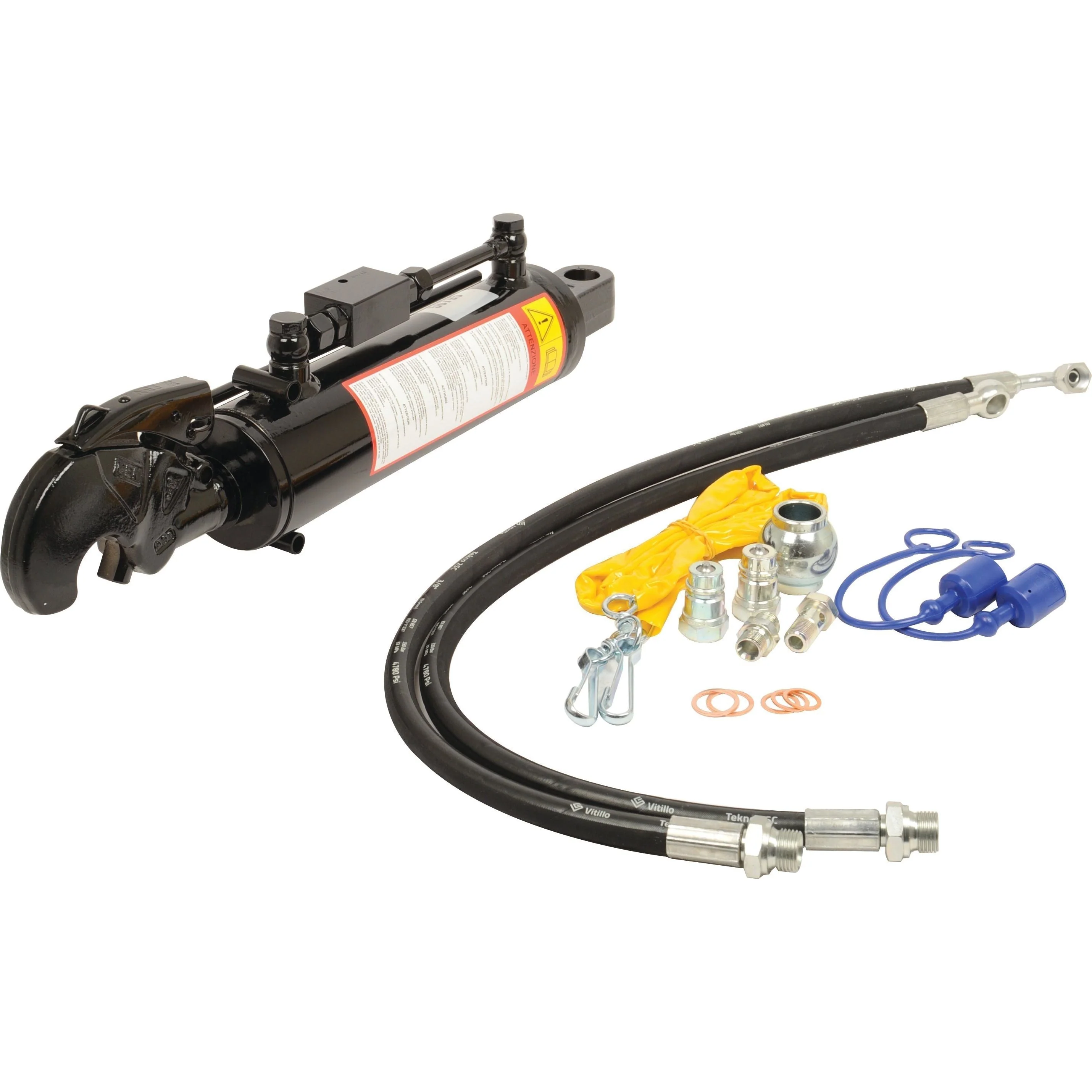

Hydraulic Top Link (Cat.-/2) with Q.R. Hook - Sparex Part No. S.56795

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this hydraulic linkage is perfect for tractors up to 180hp (135kW). With a minimum length of 550mm and a maximum length of 765mm, it provides the flexibility needed for various applications.

Product Specifications

• A (mm): 120
• Brand: Sparex
• Category Implement End: 2
• Category: -/2
• Check Valve Position: Top
• Cylinder Bore (mm): 80
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs) @ 180 bar: 6930
• Loop Option: No
• Maximum Length (mm): 765
• Minimum Length (mm): 550
• Ram Stroke (mm): 215
• Rod Ø (mm): 40
• Thrust (kgs) @ 180 bar: 9240
• Tariff Code: 8412212090
• Related Products: 10287, 10288, 10289, 10290, 10292, 32255, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56817, 148199

Compatibility Information

This hydraulic top link is not associated with any specific make or model, making it a versatile choice for various applications.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring broad compatibility across different machinery.
