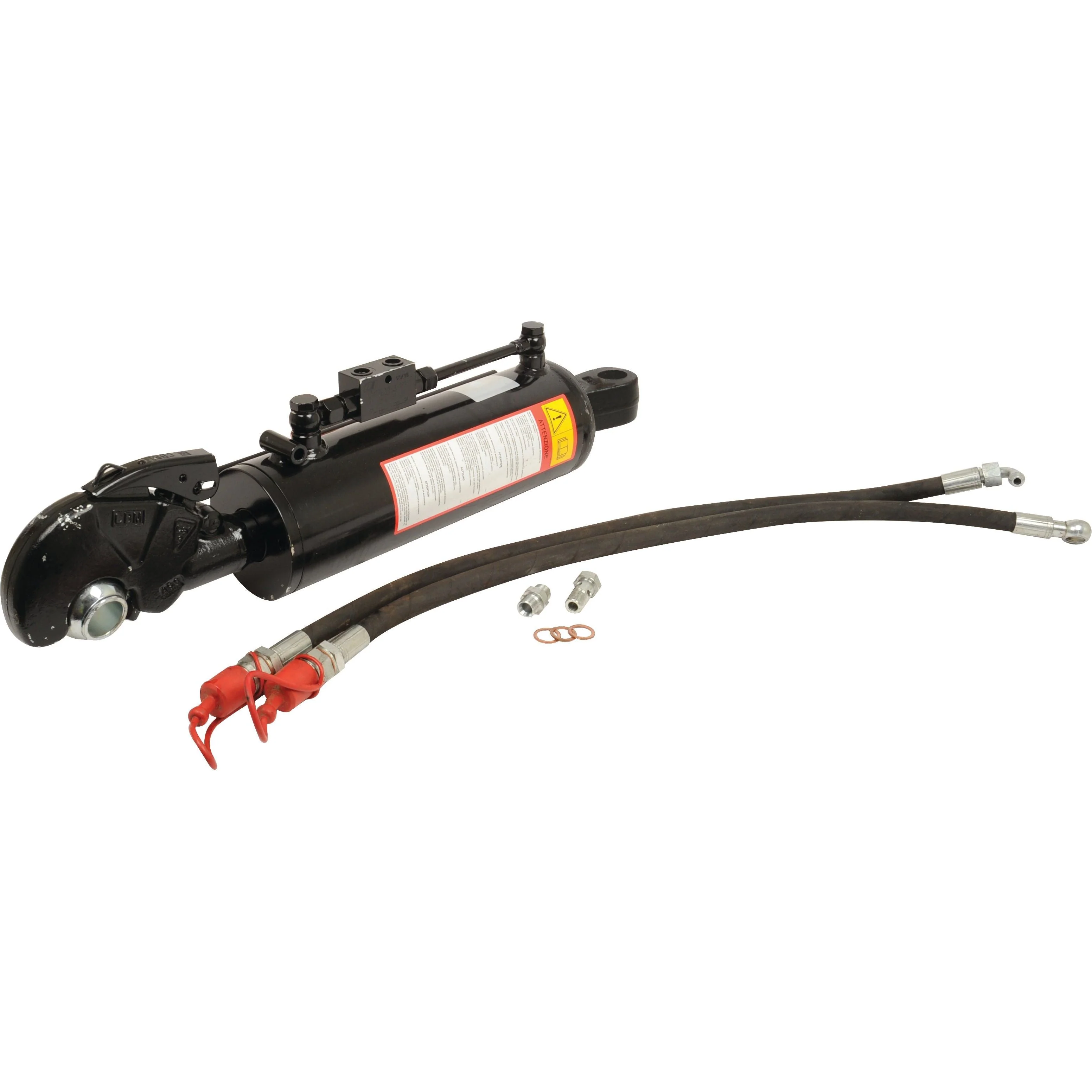

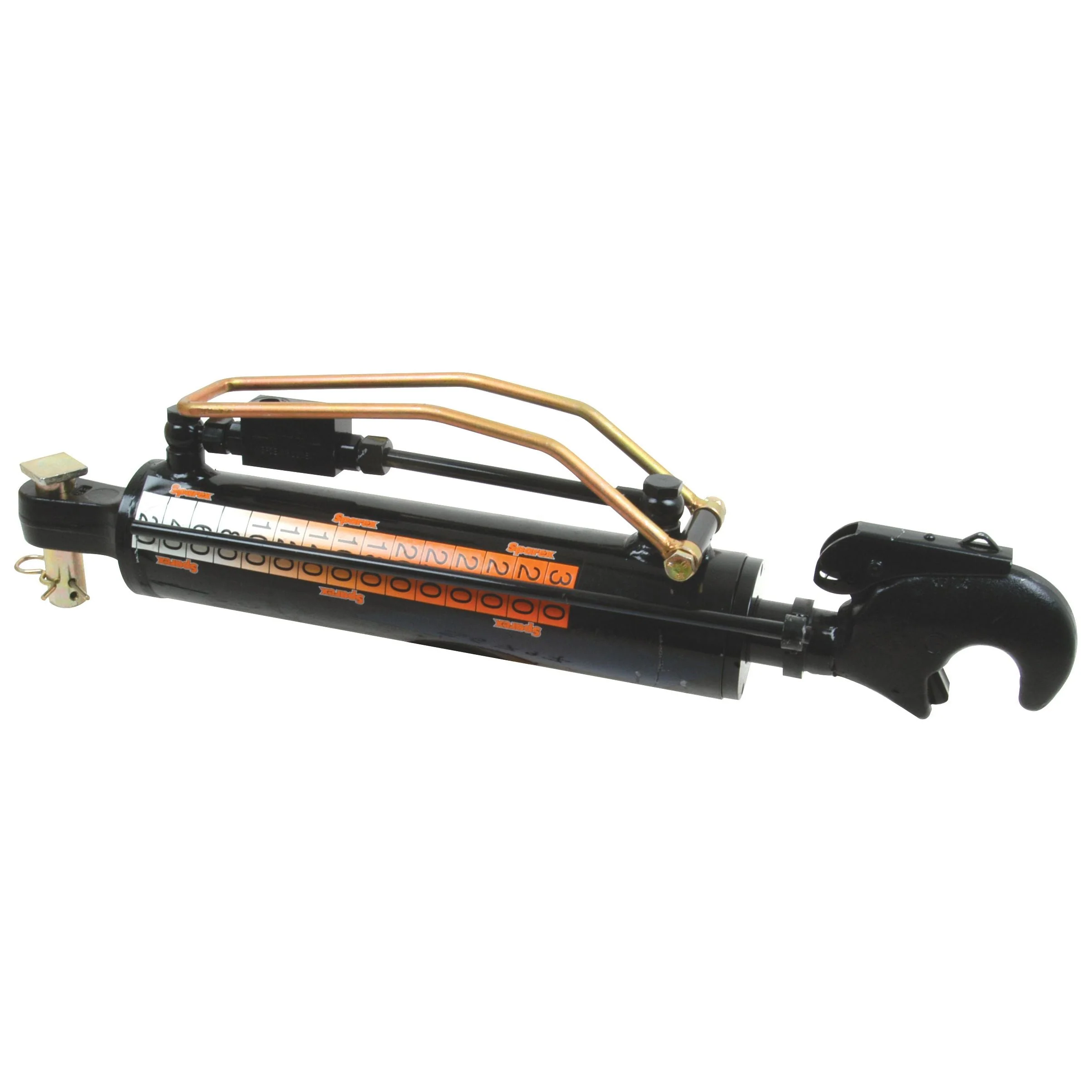

Hydraulic Top Link (Cat.-/2) with Q.R. Hook - Sparex Part No. S.56790

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex, designed for optimal performance and durability. This versatile hydraulic linkage features a minimum length of 490mm and a maximum length of 665mm, making it suitable for a variety of applications. It comes complete with a hose set, chain & ball, and a marker label (without knuckle & pin) for easy installation and use.

Product Specifications

• A (mm): 120
• Alternative to: 399901, 399902, 399903, 399904
• Brand: Sparex
• Category Implement End: 2
• Category: -/2
• Check Valve Position: Top
• Cylinder Bore (mm): 63
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 3960
• Loop Option: 35
• Maximum Length (mm): 665
• Minimum Length (mm): 490
• Ram Stroke (mm): 175
• Related Products: 10287, 10288, 10289, 10290, 10292, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56817, 148199
• Rod Diameter (mm): 35
• Suitable for Tractors up to: 100hp (74kW)
• Supplied with: Hose set, chain & ball, marker label without knuckle & pin
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 5730

Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring broad compatibility across various agricultural machinery.
