Hydraulic Top Link (Cat.2/3) with Knuckle and Q.R CBM Hook - Sparex Part No. S.399892

Enhance your tractor's performance with the Hydraulic Top Link from Sparex, designed for durability and efficiency. This top link features a minimum length of 565mm and a maximum length of 706mm, making it versatile for various applications. It comes complete with a hose set, chain & ball, and a marker label with knuckle & pin for easy installation and operation.

Product Specifications

• A (mm): 152
• Alternative to: 56800
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 2
• Category: 2/3
• Check Valve Position: Top
• Cylinder Bore (mm): 90

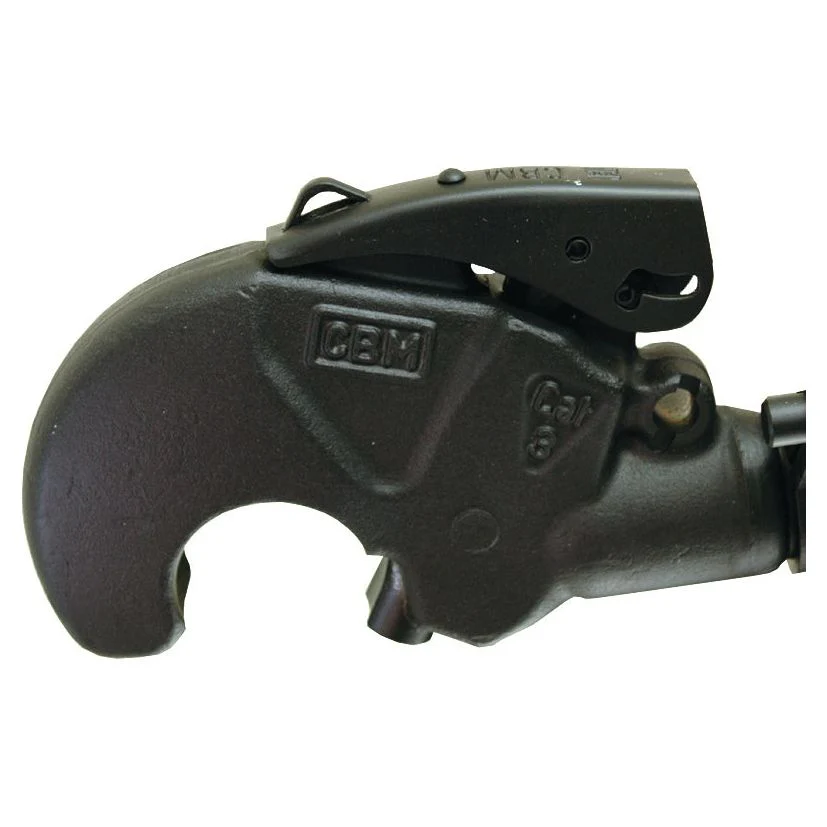

• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 8770
• Maximum Length (mm): 706
• Minimum Length (mm): 565
• Related Products: 10287, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
• Rod Diameter (mm): 45
• Suitable for Tractors up to: 180hp (135kW)
• Supplied with: Hose set, chain & ball, marker label with knuckle & pin
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 11700
• Tractor End Fixing: S.10287

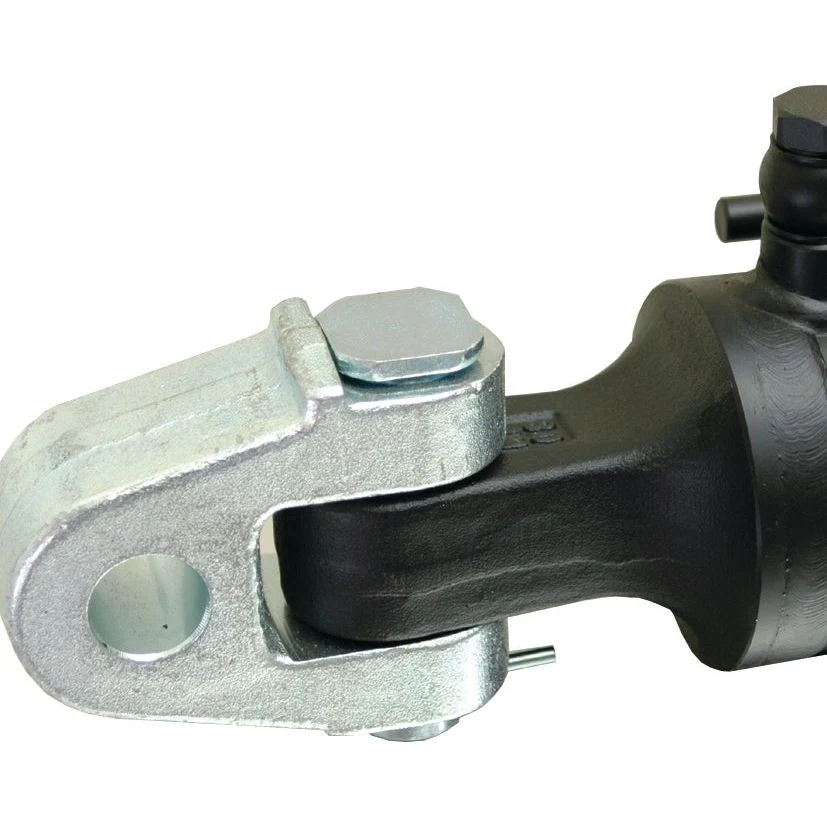

• Tractor End: Knuckle

Suitable For

This hydraulic top link is compatible with John Deere models: 6410SE, 6420SE, 6510SE, 6520SE, 6610SE, and 6620SE.

Manufacture Information

Please note that this product is not associated with any specific OEM part number, ensuring a reliable alternative for your agricultural needs.
