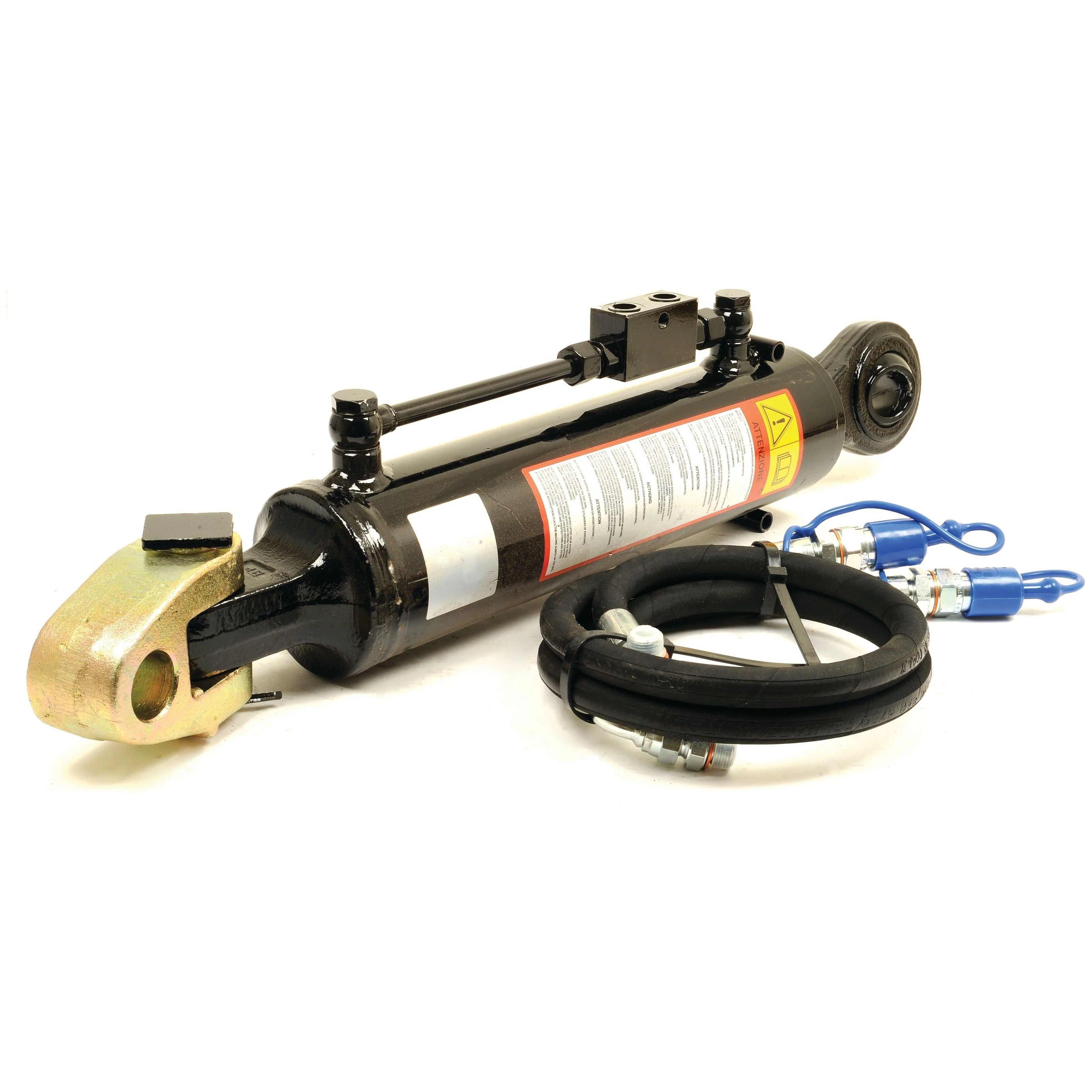

Introducing the Hydraulic Top Link (Cat.2/3) by Sparex, designed for optimal performance and durability. This versatile hydraulic top link features a minimum length of 640mm and a maximum length of 903mm, making it suitable for a wide range of applications. Each unit comes complete with a Hose Set for easy installation.

Product Specifications

• A (mm): 152
• Alternative to: 3733, 56809
• Brand: Sparex
• Category Implement End: 3
• Category Tractor End: 2
• Category: 2/3
• Check Valve Position: Top
• Cylinder Bore (mm): 90
• Implement End: Ball
• Lift Capacity (kgs) @ 180 bar: 8770
• Maximum Length (mm): 903
• Minimum Length (mm): 640
• Related Products: 10287, 10292, 32257, 33137
• Rod Diameter (mm): 45
• Suitable for Tractors up to: 180hp (135kW)
• Supplied with: Hose Set
• Tariff Code: 8412212090
• Thrust (kgs) @ 180 bar: 11700
• Tractor End Fixing: S.10287
• Tractor End: Knuckle

Suitable For Information

This hydraulic top link is compatible with various tractor models, including:

Claas: ARION 410, 420, 430, 440, 450, 460, 510, 520, 530, 540, 550, 610, 620, 630, 640, 650, 660

Massey Ferguson: 5S.105, 5S.115, 5S.125, 5S.135, 5S.145

Valmet & Valtra: N101, N101 CLASSIC, N101 HITECH, N103, N103 HITECH, N103.4 HITECH, N111, N111 HITECH, N121, N121 HITECH, N141, N142, N143, T121, T131, T151, T161, T171, T182, T191, T202, and many more.

Manufacture Information

This product is not associated with any particular OEM part number, ensuring a versatile fit for various applications.
